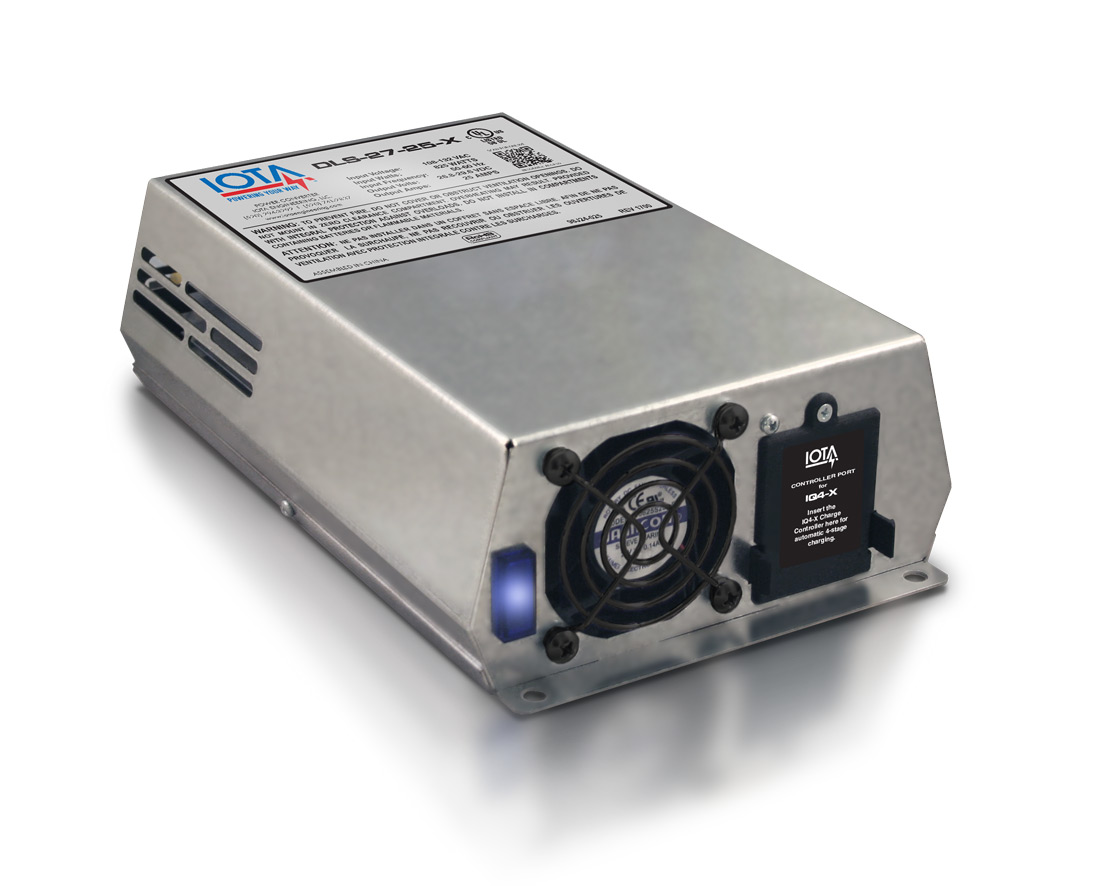

DLSX 27V 25A Converter and Charger

25 Amp AC\DC Power Converter and Battery Charger for DC load operation and 24V battery charging

By Iota

  • Overview
  • Specifications
The DLSX 27V 25A Power Converter/Battery Charger from IOTA converts nominal 108-132 AC voltage to 26.8-29.6 DC voltage for both DC load operation and 24 V battery charging.

As a power supply, the unit's tightly controlled regulation allows the user to operate nominal DC loads up to 25 amps.

As a battery charger, the unit will maintain the battery, delivering its full-rated current when the battery capacity falls sufficiently low. The voltage is set to deliver its maximum current for the necessary period of time to minimize undue stress to the battery caused by heating of its cells. This helps to ensure the longest possible life of the battery. Over time, as the battery nears its full capacity, the DLSX will automatically drop the current, providing a float-charge to the battery to prevent self-discharge of the cells.


Input Voltage
  • 108-132 VAC
Input Frequency
  • 47-63 Hz
Output Voltage
  • 26.8 - 29.6 VDC
Output Amperage
  • 25 Amps
Read More
Read Less
Product Type Charger/Power Converter
Load Voltage Rating 24VDC
Amperage 25
Series DLSX
