I13 Emergency Ballast

Emergency Ballast for 2-Pin and Quad 2-Pin Compact Fluorescent Luminaires

By IOTA

  • Overview
  • Specifications

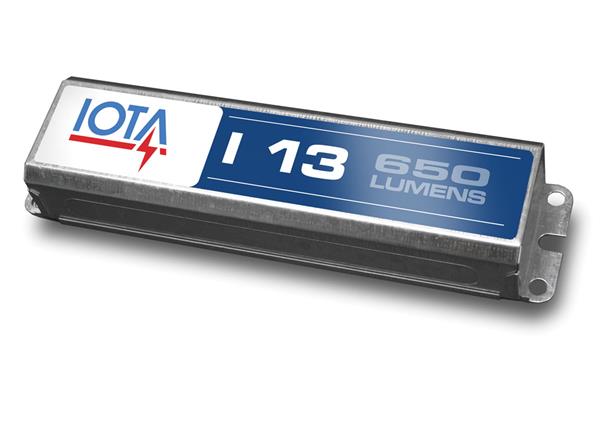

The I13 from IOTA Engineering is a UL Listed fluorescent emergency ballast that allows the same fixture to be used for both normal and emergency operation. In the event of a power failure, the I13 switches to the emergency mode and operates one of the existing lamps for 90 minutes. The unit contains a battery, charger, and inverter circuit in a single can. The I13 features an integral can profile or 'dual-flex' profile for installation directly within the ballast compartment or mounting adjacent to the fixture. The I13 is suitable for use in damp locations and enclosed and gasketed fixtures.
Initial Lumen Output
  • 650 Lumens (1 lamp)
Lamps Operated
  • 7, 9, or 13 Watt Twin Tube 2-Pin with integral starter
  • 9W-13W USA Quad 2-Pin with integral starter
Features
  • Will cold start and operate all specified lamps
  • Long life high temperature recyclable Ni-Cad battery
  • Galvanized steel case
  • Includes test switch and charge indicator accessory kit
  • For use with switched or unswitched fixtures
  • Rated for use in damp locations, plenum, and enclosed and gasketed fixtures
  • Meets or exceeds all NEC, IBC, and Life Safety Code Emergency Lighting Requirements
  • RoHS Compliant
Read More
Read Less
Product Type Emergency Ballast
Voltage Rating 120/277
Frequency 60HZ
Max. Operating Temp. 50
Min. Operating Temp. 0
Battery Run Time 90 min
Battery Chemistry Type NiCd
Battery Recharge Time 24 hours
Battery Activation Unit Connector
Life Safety Testing Manual Testing
Regulatory Listing C-UL-US, NFPA 101
Compliance Listing ROHS
Series I13

Read More Read Less

  • Suggested Replacement Products

Product Information

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET I13 Specifications Specification Sheet for IOTA I13 Models 2/17/2020 View
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    CAD (DWG) Two Lamp Magnetic Ballast - Series Operation DWG Format - Connections to two lamp luminaire (series operation - one emergency lamp) with a normal power factor magnetic ballast 6/30/2020
    Installation Instructions A Mounting Style Installation Manual for I13 A (Dual Flex) Mounting Style 9/19/2019 View
    Installation Instructions B Mounting Style Installation Manual for I13 B (Integral) Mounting Style 9/19/2019 View
    Wiring Diagram (DWG) Emergency Operation Only DWG Format - Connections to a one lamp luminaire, emergency operation only (no AC ballast) 6/30/2020
    Wiring Diagram (DWG) One Lamp Electronic Ballast DWG Format - Connections to one lamp luminaire with an electronic ballast 6/30/2020
    Wiring Diagram (DWG) One Lamp High Power Factor Magnetic Ballast DWG Format - Connections to one lamp luminaire with a high power factor magnetic ballast 9/19/2019
    Wiring Diagram (DWG) One Lamp Magnetic Ballast DWG Format - Connections to one lamp luminaire with a normal power factor magnetic ballast 9/19/2019
    Wiring Diagram (DWG) Two Lamp Electronic Ballast DWG Format - Connections to two lamp luminaire (one emergency lamp) with an electronic ballast 6/30/2020
    Wiring Diagram (DWG) Two Lamp High Power Factor Magnetic Ballast DWG Format - Connections to two lamp luminaire (one emergency lamp) with a high power factor magnetic ballast 6/30/2020
    Wiring Diagram (DWG) Two Lamp Magnetic Ballast DWG Format - Connections to two lamp luminaire (one emergency lamp) with a normal power factor magnetic ballast 6/30/2020
    Wiring Diagram (DWG) Two Lamp Magnetic Ballast - Parallel Operation DWG Format - Connections to two lamp luminaire (parallel operation - one emergency lamp) with a high power factor magnetic ballast 6/30/2020
    Wiring Diagram (DWG) Two Lamp Magnetic Ballast - Parallel Operation DWG Format - Connections to two lamp luminaire (parallel operation - one emergency lamp) with a normal power factor magnetic ballast 6/30/2020
    Wiring Diagram (DWG) Two Lamp Magnetic Ballast - Series Operation DWG Format - Connections to two lamp luminaire (series operation - one emergency lamp) with a high power factor magnetic ballast 6/30/2020
    Wiring Diagram (PDF) Emergency Operation Only PDF Format - Connections to a one lamp luminaire, emergency operation only (no AC ballast) 6/30/2020 View
    Wiring Diagram (PDF) One Lamp Electronic Ballast PDF Format - Connections to one lamp luminaire with a magnetic ballast 6/30/2020 View
    Wiring Diagram (PDF) One Lamp High Power Factor Magnetic Ballast PDF Format - Connections to one lamp luminaire with a high power factor magnetic ballast 9/19/2019 View
    Wiring Diagram (PDF) One Lamp Magnetic Ballast PDF Format - Connections to one lamp luminaire with a normal power factor magnetic ballast 9/19/2019 View
    Wiring Diagram (PDF) Two Lamp Electronic Ballast PDF Format - Connections to two lamp luminaire (one emergency lamp) with an electronic ballast 6/30/2020 View
    Wiring Diagram (PDF) Two Lamp High Power Factor Magnetic Ballast PDF Format - Connections to two lamp luminaire (one emergency lamp) with a high power factor magnetic ballast 6/30/2020 View
    Wiring Diagram (PDF) Two Lamp Magnetic Ballast PDF Format - Connections to two lamp luminaire (one emergency lamp) with a normal power factor magnetic ballast 6/30/2020 View
    Wiring Diagram (PDF) Two Lamp Magnetic Ballast - Parallel Operation PDF Format - Connections to two lamp luminaire (parallel operation - one emergency lamp) with a high power factor magnetic ballast 6/30/2020 View
    Wiring Diagram (PDF) Two Lamp Magnetic Ballast - Parallel Operation PDF Format - Connections to two lamp luminaire (parallel operation - one emergency lamp) with a normal power factor magnetic ballast 6/30/2020 View
    Wiring Diagram (PDF) Two Lamp Magnetic Ballast - Series Operation PDF Format - Connections to two lamp luminaire (series operation - one emergency lamp) with a high power factor magnetic ballast 6/30/2020 View
    Wiring Diagram (PDF) Two Lamp Magnetic Ballast - Series Operation PDF Format - Connections to two lamp luminaire (series operation - one emergency lamp) with a normal power factor magnetic ballast 6/30/2020 View
