IOTA I32
Dimensions - I32 - Length: 9.5in, Width: 2in, Height: 1in, Mounting Center: 9in

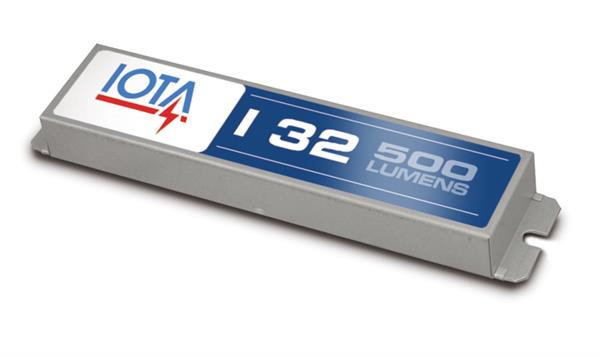

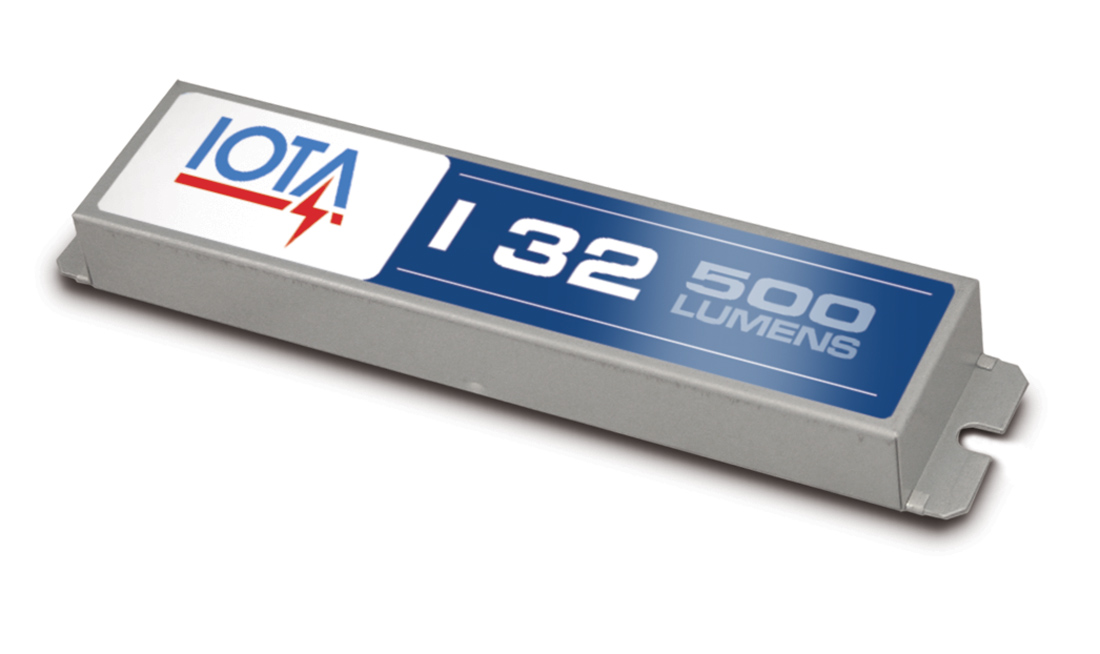

I32 Emergency Ballast

Reduced Profile Emergency Ballast for Linear Fluorescent Luminaires

By Iota

  • Overview
  • Specifications
The I32 from IOTA Engineering is a UL Listed fluorescent emergency ballast that allows the same fixture to be used for both normal and emergency operation. In the event of a power failure, the I32 switches to the emergency mode and operates one of the existing lamps for 90 minutes. The unit contains a battery, charger, and inverter circuit in a single can. The I32 features lamp selector leads for optimizing light output for designated lamp types. The unit can be mounted in the wireway or on top of the fixture. The I32 delivers high performance in a slim design, and is ideal for use in fixtures where ballast compartment space is limited.
Initial Lumen Output
  • 500 Lumens
Lamps Operated
  • (1) 2-4ft. Single, Bipin, T8-T12
  • (1) 2-4ft. 28W T5
Features
  • Time Delay feature for compatibility with End-of-Lamp-Life circuitry
  • Open Circuit Isolation protects unit when load is absent
  • Reduced Profile design is ideal for smaller ballast compartments
  • Will cold start and operate all specified lamps
  • Long life high temperature recyclable Ni-Cad battery
  • Galvanized steel case
  • Includes test switch and charge indicator accessory kit
  • For use with switched or unswitched fixtures
  • Rated for use in plenum and enclosed and gasketed fixtures
  • Lamp selector leads optimize light output for desired lamp type
  • Meets or exceeds all NEC, IBC, and Life Safety Code Emergency Lighting Requirements
  • RoHS Compliant
Read More
Read Less
Product Type Emergency Ballast
Voltage Rating 120/277
Frequency 60HZ
Max. Operating Temp. 50
Min. Operating Temp. 0
Battery Run Time 90 min
Battery Chemistry Type NiCd
Battery Recharge Time 24 hours
Battery Activation Unit Connector
Life Safety Testing Manual Testing
Regulatory Listing C-UL-US, NFPA 101
Compliance Listing ROHS
Series I32

Read More Read Less
