IOTA I320
Dimensions - I320 - Length: 13.0 in, Width: 2.2 in, Height: 1.25 in, Mounting Center: 12.6 in

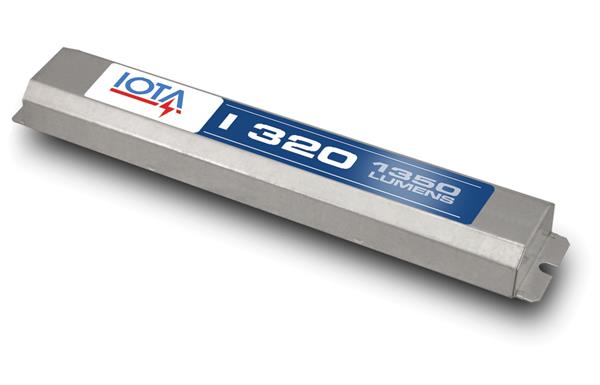

I320 Emergency Ballast

Reduced Profile Emergency Ballast for Linear LED Retrofit (TLED) and Fluorescent Luminaires

By Iota

  • Overview
  • Specifications
The I320 from IOTA Engineering is a UL Listed fluorescent emergency ballast that allows the same fixture to be used for both normal and emergency operation. In the event of a power failure, the I320 switches to the emergency mode and operates one of the existing lamps for 90 minutes. The unit contains a battery, charger, and inverter circuit in a single can, and can be mounted in the wireway or on top of the fixture. The I320 utilizes AC output to ensure compatibility with new lamp technologies, and features lamp selector leads for optimizing light output for the designated lamp type. The I320 delivers high performance in a slim design, and is ideal for use in fixtures where ballast compartment space is limited.
Initial Lumen Output
  • 1350 Lumens
Lamps Operated
  • Select LED Retrofit Tubes
  • (1) 2-4ft. Bipin HO and VHO T8
  • (1) 2-4ft. 14W-54W T5
Features
  • Reduced Profile design is ideal for smaller ballast compartments
  • AC Output for compatibility with low mercury content amalgam lamps
  • Time Delay feature for compatibility with End-of-Lamp-Life circuitry
  • Open Circuit Isolation protects unit when load is absent
  • Will cold start and operate all specified lamps
  • Long life high temperature recyclable Ni-Cad battery
  • Galvanized steel case
  • Includes test switch and charge indicator accessory kit
  • For use with switched or unswitched fixtures
  • Rated for use in damp locations, plenum, and enclosed and gasketed fixtures
  • Lamp selector leads optimize light output for desired lamp type
  • Meets or exceeds all NEC, IBC, and Life Safety Code Emergency Lighting Requirements
  • RoHS Compliant
Read More
Read Less
Product Type Emergency Ballast
Voltage Rating 120/277
Frequency 60HZ
Max. Operating Temp. 50
Min. Operating Temp. 0
Battery Run Time 90 min
Battery Chemistry Type NiCd
Battery Recharge Time 24 hours
Battery Activation Unit Connector
Life Safety Testing Manual Testing
Regulatory Listing C-UL-US, NFPA 101
Compliance Listing ROHS
Environmental Listing Damp Location
Series I320
