I320 HE Emergency Ballast

Reduced Profile, High Efficiency for CA Title 20 Emergency Ballast for Linear and Compact LED Retrofit (TLED) and Fluorescent Luminaires

By IOTA

    CA Title 20
  • Overview
  • Specifications

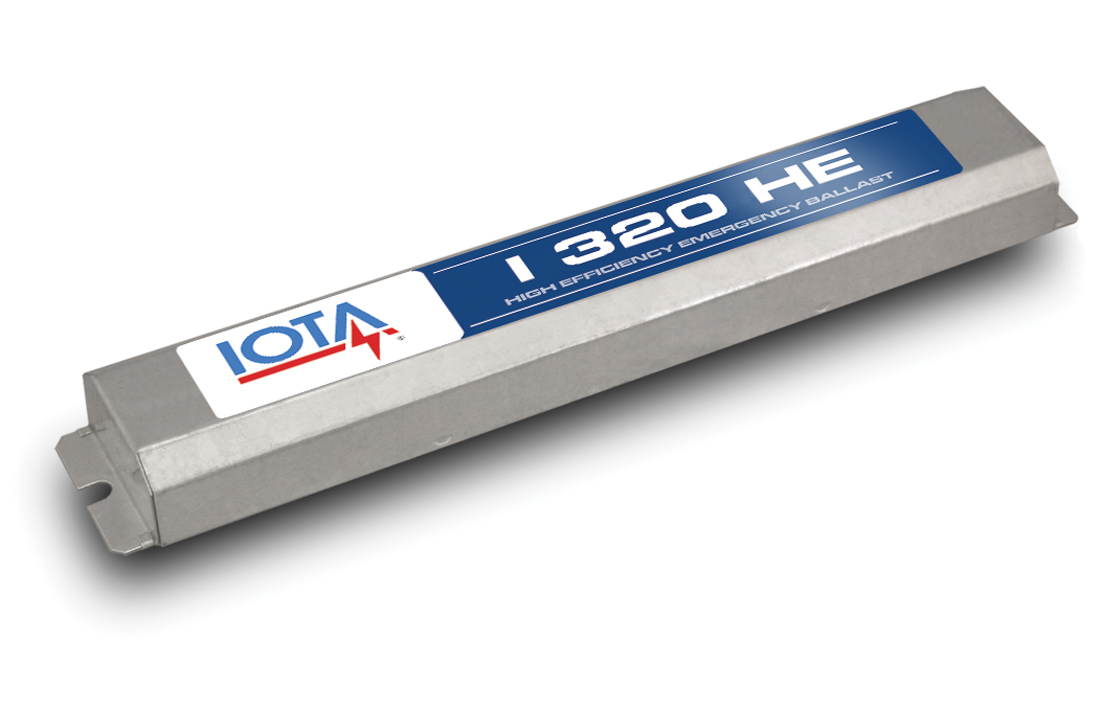

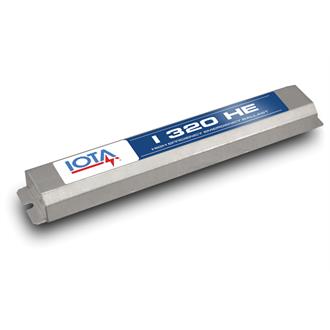

The I320 HE from IOTA Engineering is a UL Listed emergency ballast that allows the same fixture to be used for both normal and emergency operation. In the event of a power failure, the I320 HE switches to the emergency mode and operates one of the existing lamps for 90 minutes. The unit contains a battery, charger, and inverter circuit in a single can, and can be mounted in the wireway or on top of the fixture. The I320 HE utilizes AC output to ensure compatibility with new lamp technologies and features lamp selector leads for optimizing light output for the designated lamp type. The shallow profile design is ideal for use in fixtures where ballast compartment space is limited.
Initial Lumen Output
  • 1350 Lumens
Lamps Operated
  • Select LED Retrofit Tubes
  • (1) 2-4ft. Bipin HO and VHO T8
  • (1) 2-4ft. 14W-54W T5
  • (1) 13W-42W 4-Pin Compact
Features
  • High Efficiency Performance meets CA T20 battery charger efficiency standards

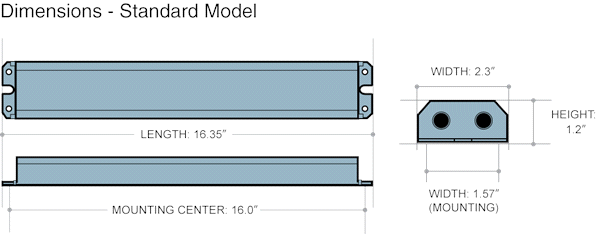

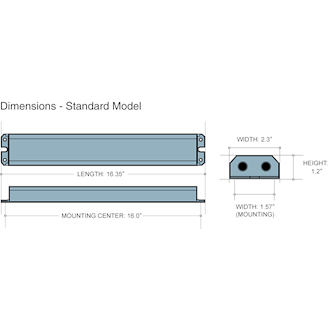

  • Reduced Profile design is ideal for smaller ballast compartments
  • AC Output for compatibility with low mercury content amalgam lamps
  • Time Delay feature for compatibility with End-of-Lamp-Life circuitry
  • Open Circuit Isolation protects unit when load is absent
  • Will cold start and operate all specified lamps

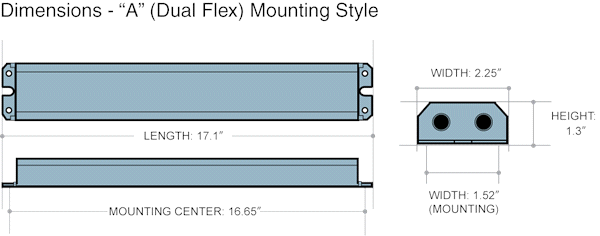

  • Two mounting configurations available
  • Long life high temperature recyclable Ni-Cad battery
  • Galvanized steel case
  • Includes single-piece TBTS test switch and charge indicator accessory kit
  • For use with switched or unswitched fixtures
  • Rated for use in damp locations, plenum, and enclosed and gasketed fixtures
  • Lamp selector leads optimize light output for desired lamp type
  • Meets or exceeds all NEC, IBC, and Life Safety Code Emergency Lighting Requirements
  • RoHS Compliant
Read More
Read Less
Product Type Emergency Ballast
Voltage Rating 120-277
Frequency 50/60HZ
Max. Operating Temp. 55
Min. Operating Temp. 0
Battery Run Time 90 min
Battery Chemistry Type NiCd
Battery Recharge Time 24 hours
Battery Activation Unit Connector
Life Safety Testing Manual Testing
Regulatory Listing NFPA 101, UL
Compliance Listing CA Title 20, ROHS
Environmental Listing Damp Location
Series I320

Read More Read Less
