I4PT A Emergency Ballast

Emergency Ballast for 4-Pin LED Retrofit (TLED) Lamps

By IOTA

    CA Title 20
  • Overview
  • Specifications

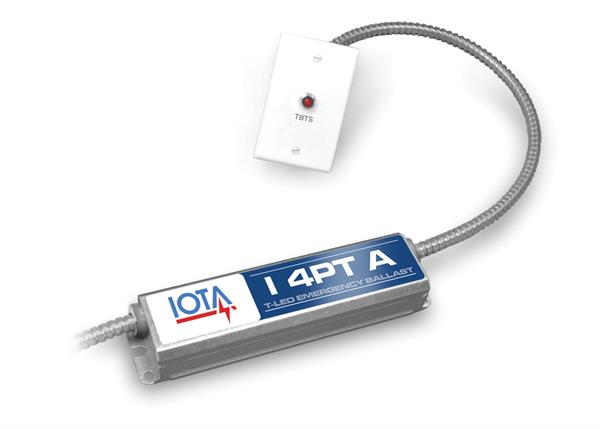

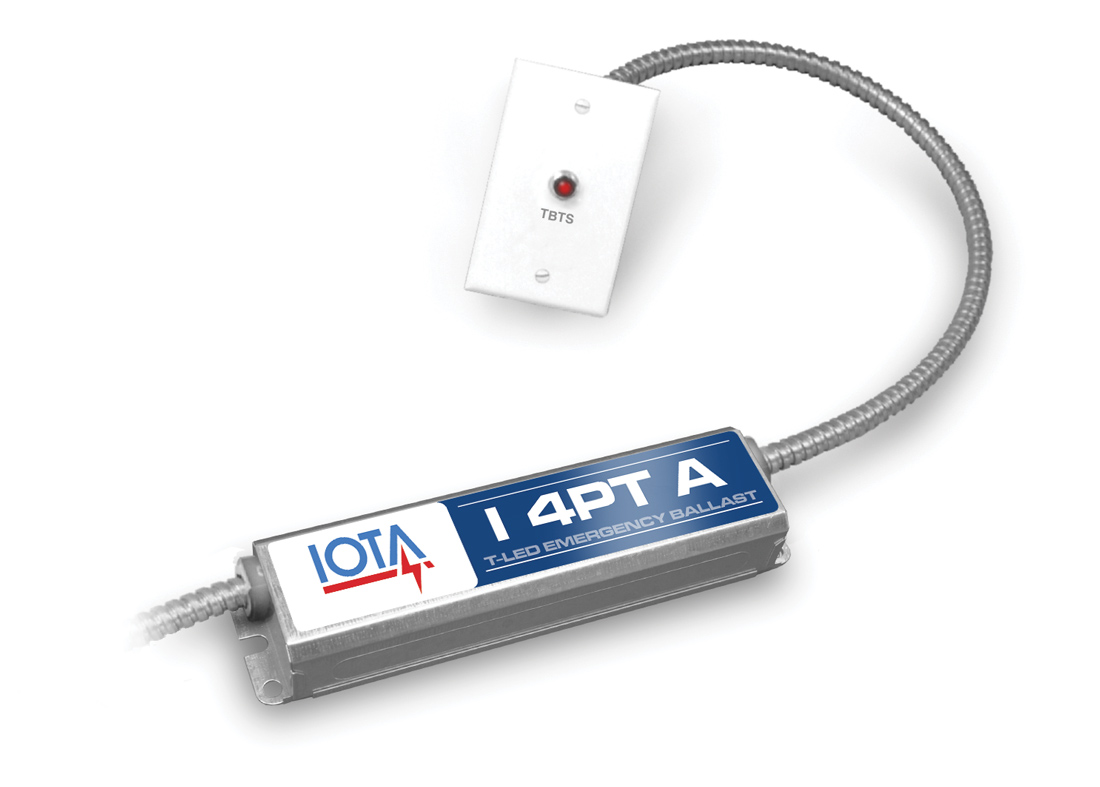

The I4PT A from IOTA Engineering is a UL Listed emergency ballast that allows the same fixture to be used for both normal and emergency operation. In the event of a power failure, the I4PT A switches to the emergency mode and operates one LED 4-pin lamp for 90 minutes at reduced illumination levels. The unit contains a battery, charger, and inverter circuit in a single can and is certified in the CA Title 20 Appliance Efficiency Database. The I4PT A uses AC output for compatibility with Type A LED lamp technologies. The I4PT A features a dual flex design for connecting wiring to the junction box and the test accessories.
Initial Lumen Output
  • 250-400 Lumens
Lamps Operated
  • 13W-42W 4-pin CFL LED retrofit lamps
Features
  • AC output for compatibility with Type A 4-Pin LED Retrofit lamps
  • High Efficiency Performance meets CA T20 battery charger efficiency standards
  • Time Delay feature for compatibility with End-of-Lamp-Life circuitry
  • Open Circuit Isolation protects unit when load is absent
  • Will cold start and operate all specified lamps
  • Long life high temperature recyclable Ni-Cad battery
  • Galvanized steel case
  • Includes test switch and charge indicator accessory kit
  • For use with switched or unswitched fixtures
  • Rated for use in damp locations and plenum fixtures
  • Meets or exceeds all NEC, IBC, and Life Safety Code Emergency Lighting Requirements
  • RoHS Compliant
Read More
Read Less
Product Type Emergency Ballast
Voltage Rating 120-277
Frequency 50/60HZ
Max. Input Current 20mA
Max. Operating Temp. 55
Min. Operating Temp. 0
Battery Run Time 90 min
Battery Chemistry Type NiCd
Battery Recharge Time 24 hours
Battery Activation Unit Connector
Life Safety Testing Manual Testing
Regulatory Listing C-UL-US, NFPA 101
Compliance Listing CA Title 20, ROHS
Environmental Listing Damp Location
Series I4PT

Read More Read Less

  • Suggested Replacement Products

Product Information

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET I4PT A Specifications Specification Sheet for the I4PT A Emergency Ballast for LED Retrofit 2/17/2020 View
  • Guideline Specifications

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions I4PT A Manual Instruction Manual for the I4PT A 9/19/2019 View
    Material Safety Data Sheet MSDS for nickel-cadmium drivers and ballasts Safety Data Sheet for Ni-Cad emergency battery component 5/12/2021 View
    Wiring Diagram (DWG) One Lamp Rapid Start Ballast DWG Format - Connections to a one lamp luminaire with a rapid start ballast 7/7/2020
    Wiring Diagram (DWG) Two Lamp Rapid Start Ballast DWG Format - Connections to a two lamp luminaire (one emergency lamp) with a rapid start ballast 7/7/2020
    Wiring Diagram (PDF) One Lamp Rapid Start Ballast PDF Format - Connections to a one lamp luminaire with a rapid start ballast 7/7/2020 View
    Wiring Diagram (PDF) Two Lamp Rapid Start Ballast PDF Format - Connections to a two lamp luminaire (one emergency lamp) with a rapid start ballast 7/7/2020 View
  • BIM Models (Revit)

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures IOTA HE Products for California Title 20 IOTA Emergency Lighting Solutions Certified in the Title 20 Appliance Efficiency Database 7/21/2022 View
    Sell Sheet IOTA Contractor Insider_LED-Retrofit_A and C.pdf Using IOTA Emergency Drivers and Series AC Emergency Ballasts for LED Retrofit projects 3/9/2021 View
