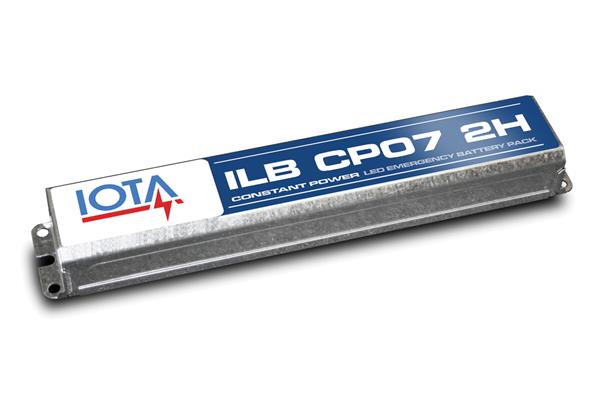

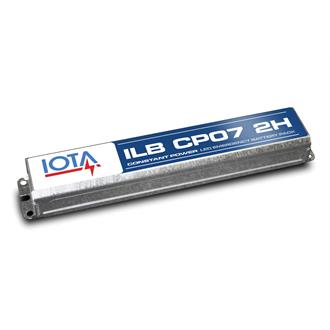

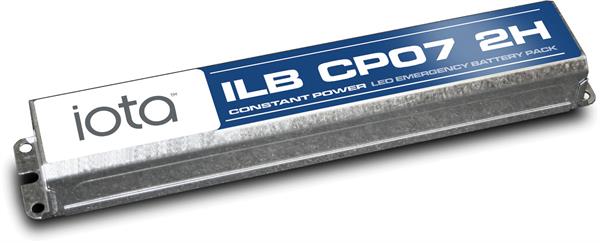

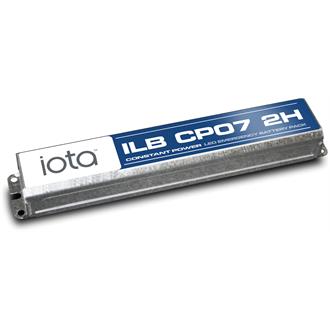

ILB CP07 2H Emergency Driver

7 Watt Constant Power LED Emergency Driver with 2 Hour Runtime for FEMA Applications


  • Overview
  • Specifications
The ILB CP07 2H from IOTA Engineering is a UL Listed emergency LED driver that allows the same LED fixture to be used for both normal and emergency operation. In the event of a power failure, the ILB CP07 2H switches to the emergency mode and operates the existing fixture for 120 minutes. The unit contains a battery, charger, and converter circuit in a single can for integral mounting to the fixture. The Constant Power design of the ILB CP07 2H maintains the output wattage to the LED array even as the system voltage diminishes.
LED Operation
  • 7 Watts Constant Power
  • 10-60 VDC Nominal Output
Product Advantages
  • Meets FEMA requirements for 2-hour operation
  • UL Listed for field installation
  • Constant Power Design maintains emergency illumination through 120-minute runtime with no light degradation
  • Two-wire universal AC input
  • Self-sensing output voltage allows the CP Series to operate various product types, such as troffers or strips, reducing product SKUs for emergency options
  • UL 924 Listed for U.S. and Canada
  • UL 1310 Certified, Output Class 2 Compliant
  • Long life high temperature recyclable Ni-Cad battery
  • Galvanized steel case
  • Includes single-piece TBTS test switch and charge indicator accessory kit
  • For use with switched and unswitched fixtures
  • Meets or exceeds all National Electric Code and Life Safety Code Emergency Lighting Requirements
  • Rated for use in Plenum, Damp Location, Recessed Type IC, and Enclosed and Gasketed Luminares
  • RoHS Compliant
  • Patented. Visit for more details
Read More
Read Less
Product Type Emergency LED Driver
Voltage Rating 120-277
Frequency 50/60HZ
Load Voltage Rating 10-60 VDC
Output Power 7 Watts
Max. Operating Temp. 55
Min. Operating Temp. 0
Battery Run Time 120 min
Battery Chemistry Type NiCd
Battery Recharge Time 24 hours
Battery Activation Unit Connector
Life Safety Testing Manual Testing
Regulatory Listing cUL, NFPA 101
Compliance Listing ROHS
Environmental Listing Damp Location
Series ILB

Read More Read Less

  • Suggested Replacement Products

Product Information

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Copy & Paste Specification Sample Specification for ILB CP07 2H models 7/16/2020
    SPEC SHEET ILB CP07 2H Specifications Specification Sheet for IOTA ILB CP07 2H Models 6/3/2022 View
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Accessories IP67 Test Switch Accessory for Select IOTA Drivers The IPS is an IP67-rated component purchased separately for select IOTA emergency drivers 10/6/2021 View

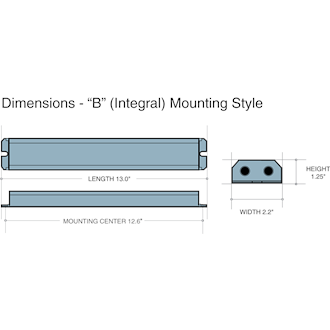

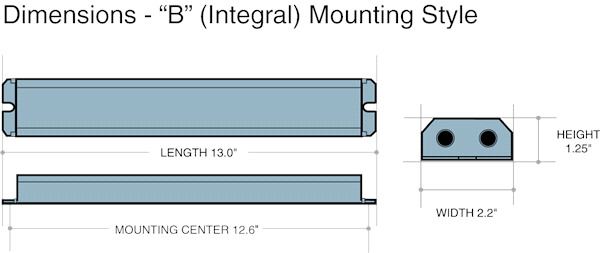

    Installation Instructions B (Integral) Mounting Style 2H B (Integral) Mounting Style 9/24/2019 View
    Material Safety Data Sheet MSDS for nickel-cadmium drivers and ballasts Safety Data Sheet for Ni-Cad emergency battery component 5/12/2021 View
    Technical Bulletins Comprensión de la Potencia Constante Maximiza la seguridad en las salidas de emergencia utilizando potencia constante real (CP) 4/12/2021 View
    Technical Bulletins IOTA Contractor Insider_Extending-Runtimes.pdf IOTA offers different ways to achieve extended runtimes for 120-minute emergency applications 7/23/2021 View
    Technical Bulletins The Need for Surge Protection IOTA emergency drivers feature enhanced designs for withstanding exposure to electrical surges. 4/5/2021 View
    Technical Bulletins Understanding Constant Power Understand the benefits of IOTA's patented Constant Power emergency LED driver design 2/11/2022 View
    Wiring Diagram Dual Negative AC Driver DWG File - ILB CP with Dual Negative AC Driver 6/26/2020
    Wiring Diagram Dual Negative AC Driver PDF File - ILB CP with Dual Negative AC Driver 6/26/2020 View
    Wiring Diagram Step Down Transformer PDF File - ILB CP with Step Down Transformer 6/26/2020 View
    Wiring Diagram Step Down Transformer DWG File - ILB CP with Step Down Transformer 6/26/2020
    Wiring Diagram Typical Installation PDF File - Typical Installation with TBTS Test Accessory 6/26/2020 View
    Wiring Diagram Typical Installation DWG File - Typical Installation with TBTS Test Accessory 6/26/2020
    Installation Instructions A (Dual Flex) Mounting Style (Discontinued) 2H A (Dual Flex) Mounting Style 9/24/2019 View
  • BIM Models (Revit)

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Application Guide Cableado del IOTA ILB CP Pasos rápidos para conectar correctamente un driver de emergencia LED IOTA a su luminaria 4/12/2021 View
    Application Guide Contractor Insider - Auto-Sense Learn how IOTA Auto-Sense simplifies selecting the proper emergency driver for LED luminaires. 2/8/2021 View
    Application Guide Contractor Insider - Emergency Lumen Output A quick guide on understanding how wattage correlates with emergency lumen output 9/15/2021 View
    Application Guide Contractor Insider - Remote Mounting Guidelines A Quick Reference for knowing remote mounting capabilities of emergency lighting solutions. 10/21/2021 View
    Application Guide ILB CP Lumen Reference Chart Quickly identify IOTA LED Emergency Drivers that meet your desired lumen levels 1/25/2022 View
    Application Guide ILB CP Wiring Reference Guide Quick steps for properly adding an IOTA ILB CP LED Emergency Driver to your luminaire 4/12/2021 View
    Application Guide Tabla de Referencia de Lumen de ILB CP Identifique rápidamente los drivers LED de emergencia de IOTA que cumplen con los niveles de lumen deseados 4/12/2021 View
