IOTA ILB CP10 HE SD
Video - IOTA Self Diagnostic Models
Video - ILB CP wiring

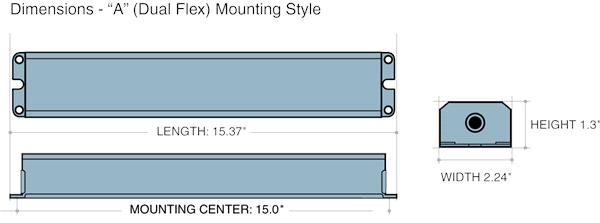

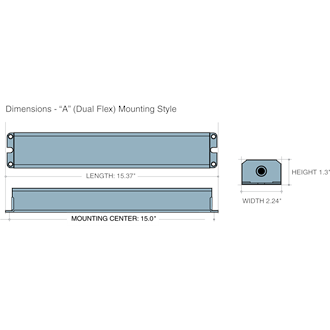

Dimensions - A Mounting Style - Length: 15.37in, Width: 2.24in, Height: 1.3in, Mounting Center: 15in

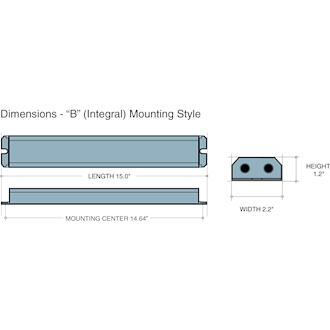

Dimensions - B Mounting Style - Length: 15in, Width: 2.2in, Height: 1.2in, Mounting Center: 14.64in

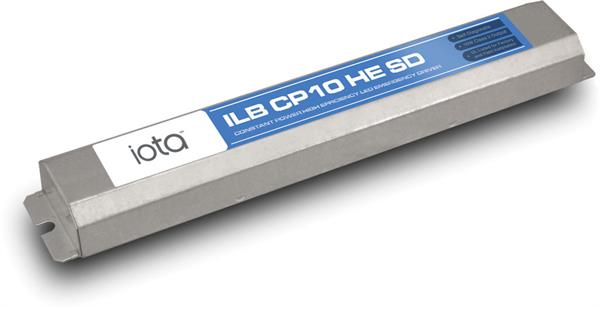

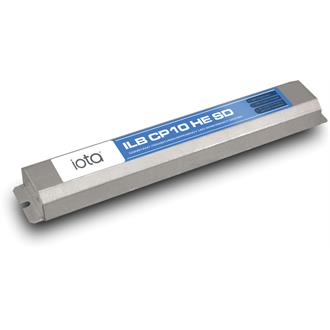

ILB CP10 HE SD Emergency Driver

10 Watt Constant Power, Self Diagnostic LED Emergency Driver

By Iota

    CA Title 20
  • Overview
  • Specifications
The ILB CP10 HE SD from IOTA is a UL Listed LED emergency driver that allows the same LED fixture to be used for both normal and emergency operation. In the event of a power failure, the ILB CP10 HE SDswitches to the emergency mode and operates the existing fixture for 90 minutes. The unit contains a battery, charger, and converter circuit in a single enclosure and is available in different mounting con-figurations for individual fixture requirements. The integrated self-diagnostic circuitry will automatically conduct monthly 30-second and annual 90-minute tests to verify proper emergency capability per Life Safety Code requirements. The ILB CP10 HE SD features high-efficiency performance and is certified in the CA Title 20 Appliance Efficiency Database.
LED Operation
  • 10 Watts Constant Power
  • 10-60 VDC Nominal Output
Product Advantages
  • Self Test / Self Diagnostics
  • Certified for CA Title 20
  • Auto-Sensing Class 2 Output
  • Constant Power Performance
  • Listed for Field or Factory Installation
Features
  • UL 924 Listed, UL Listed and Classified to FTBV
  • UL 1310 Certified, Output Class 2 Compliant
  • Six mounting configurations available
  • Long life high temperature recyclable Ni-Cad battery
  • Galvanized steel case
  • Includes dual-color TBTS test switch/charge indicator
  • For use with switched or unswitched fixtures
  • Expanded functionality allows tests to be manually initiated or canceled by local switching controls
  • Meets or exceeds all National Electric Code and Life Safety Code Emergency Lighting Requirements
  • Rated for use in Plenum, Damp Location, Recessed Type IC, and Enclosed and Gasketed Luminares
  • RoHS Compliant
  • Patented. Visit iotaengineering.com/patents for more details
Read More
Read Less
Product Type Emergency LED Driver
Voltage Rating 120-277
Frequency 50/60HZ
Load Voltage Rating 10-60 VDC
Output Power 10 Watts
Max. Operating Temp. 55
Min. Operating Temp. 0
Battery Run Time 90 min
Battery Chemistry Type NiCd
Battery Recharge Time 24 hours
Battery Activation Unit Connector
Life Safety Testing Self Diagnostics, Self Test
Regulatory Listing cUL, NFPA 101
Compliance Listing CA Title 20, ROHS
Environmental Listing Damp Location
Series ILB
