IOTA ILB CP12

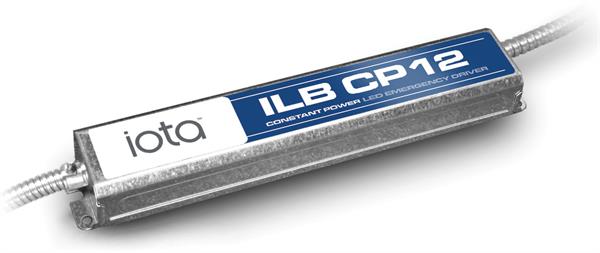

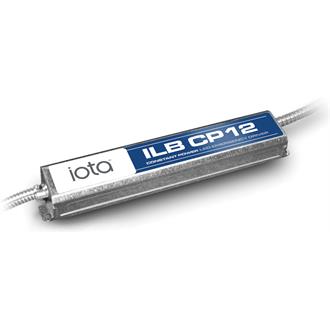

ILB CP12 with flexible conduit
Video - ILB CP wiring

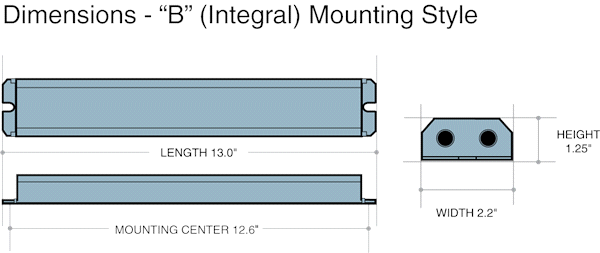

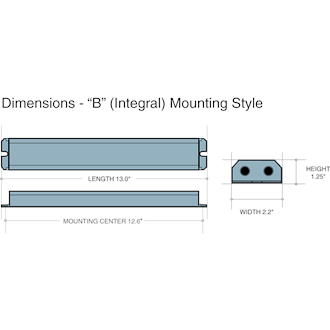

Dimensions - B Mounting Style - Length: 13in, Width: 2.2in, Height: 1.25in, Mounting Center: 12.6in

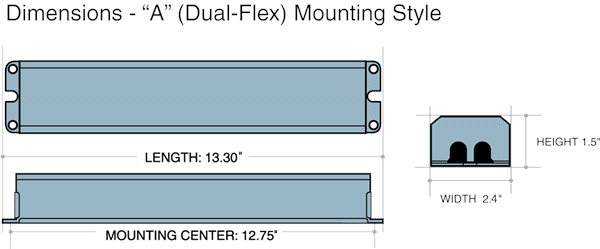

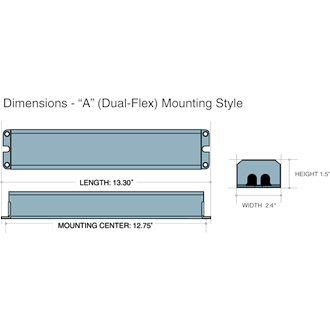

Dimensions - A Mounting Style - Length: 13.3in, Width: 2.4in, Height: 1.5in, Mounting Center 12.75in

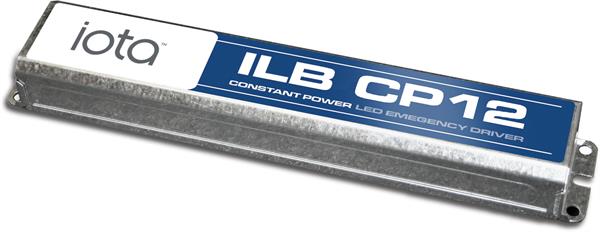

ILB CP12 Emergency Driver

12 Watt Constant Power LED Emergency Driver

By Iota

  • Overview
  • Specifications
The IOTA ILB CP12 is a UL Listed LED emergency driver that allows the same LED fixture to be used for both normal and emergency operation. In the event of a power failure, the ILB CP12 switches to the emergency mode and operates the existing fixture for 90 minutes. The unit contains a battery, charger, and converter circuit in a single can and is available in different mounting configurations for individual fixture requirements. The Constant Power design of the ILB CP12 maintains the output wattage to the LED array even as the system voltage diminishes.
LED Operation
  • 12 Watts Constant Power
  • 10-60 VDC Nominal Output
Product Advantages
  • UL Listed for field installation
  • Constant Power Design maintains emergency illumination through 90-minute runtime with no light degradation
  • Two-wire universal AC input
  • Self-sensing output voltage allows the CP Series to operate various product types, such as downlights, troffers or strips, reducing product SKUs for emergency options
Features
  • UL 924 Listed for U.S. and Canada
  • UL 1310 Certified, Output Class 2 Compliant
  • Six mounting configurations available
  • Long life high temperature recyclable Ni-Cad battery
  • Galvanized steel case
  • Includes single-piece TBTS test switch and charge indicator accessory kit
  • For use with switched and unswitched fixtures
  • Meets or exceeds all National Electric Code and Life Safety Code Emergency Lighting Requirements
  • Rated for use in Plenum, Damp Location, Recessed Type IC, and Enclosed and Gasketed Luminaires
  • RoHS Compliant
  • Patented. Visit iotaengineering.com/patents for more details
Read More
Read Less
Product Type Emergency LED Driver
Voltage Rating 120-277
Frequency 50/60HZ
Load Voltage Rating 10-60 VDC
Output Power 12 Watts
Max. Operating Temp. 55
Min. Operating Temp. 0
Battery Run Time 90 min
Battery Chemistry Type NiCd
Battery Recharge Time 24 hours
Battery Activation Unit Connector
Life Safety Testing Manual Testing
Regulatory Listing cUL, NFPA 101
Compliance Listing ROHS
Environmental Listing Damp Location
Series ILB
