ILB CP20 HE Emergency Driver

20 Watt Constant Power, High Efficiency LED Emergency Driver for CA Title 20

By IOTA

    CA Title 20
  • Overview
  • Specifications

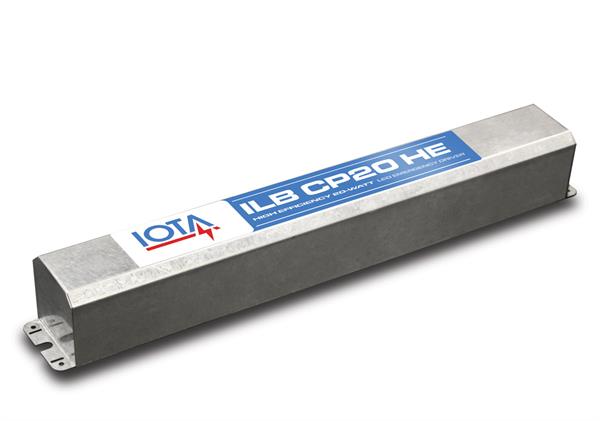

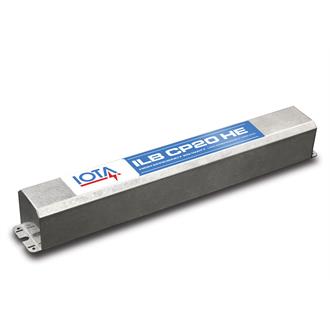

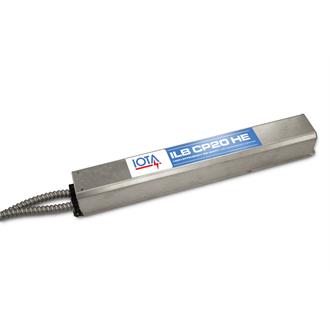

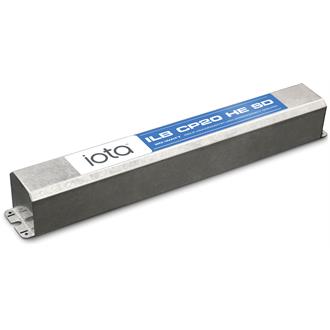

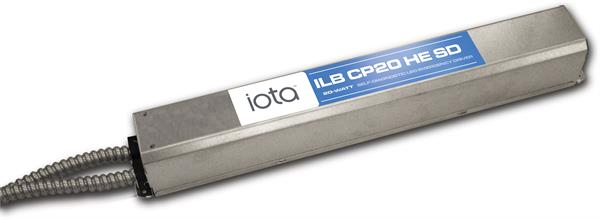

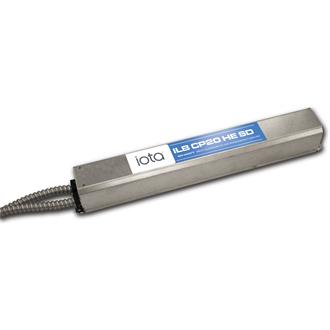

The ILB CP20 HE from IOTA Engineering is a UL Listed LED emergency driver for field or factory installation that allows the same LED fixture to be used for both normal and emergency operation. In the event of a power failure, the ILB CP20 HE switches to the emergency mode and operates the existing fixture for 90 minutes. The unit contains a battery, charger, and converter circuit in a single enclosure and is available in different mounting configurations for individual fixture requirements. The patented Constant Power design of the ILB CP20 HE maintains the output wattage to the LED array even as the system voltage diminishes, resulting in a constant illumination level for the entire emergency runtime. The ILB CP20 HE features high-efficiency performance to help meet CEC Title 20 efficiency requirements.
LED Operation
  • 20 Watts Constant Power
  • 20-60 VDC Nominal Output
Product Advantages
  • High Efficiency Performance meets CA T20 battery charger efficiency standards
  • Increased illumination output designed for elevated fixtures
  • UL Listed for field installation

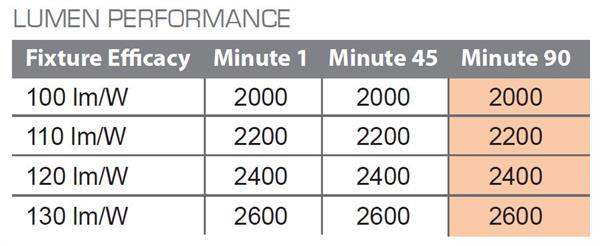

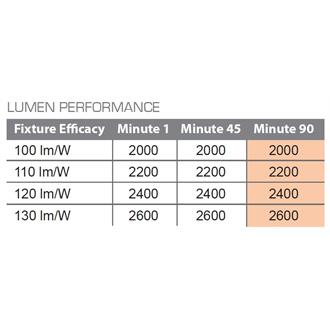

  • Constant Power Design maintains emergency illumination through 90-minute runtime with no light degradation
  • Two-wire universal AC input
  • Self-sensing output voltage allows the CP Series to operate various product types, such as downlights, troffers or strips, reducing product SKUs for emergency options
Features
  • UL 924 Listed for U.S. and Canada
  • UL 1310 Certified, Output Class 2 Compliant

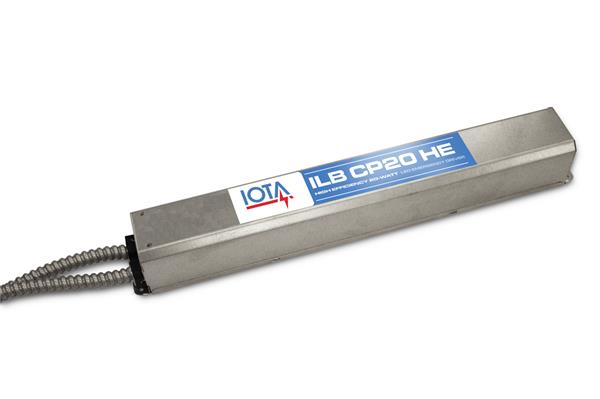

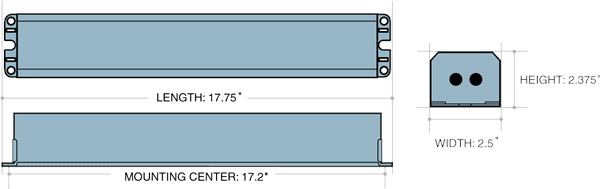

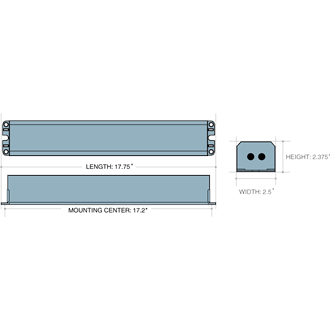

  • Three mounting configurations available
  • Long life, maintenance-free, high temperature recyclable Ni-Cad battery
  • Galvanized steel case
  • Includes single-piece TBTS test switch and charge indicator that can be remote-mounted up to 50ft.
  • For use with switched and unswitched fixtures
  • Meets or exceeds all National Electric Code and Life Safety Code Emergency Lighting Requirements
  • IC Rated and suitable for use in plenum and damp location fixtures
  • RoHS Compliant
  • Patented. Visit iotaengineering.com/patents for more details
Read More
Read Less
Product Type Emergency LED Driver
Voltage Rating 120-277
Frequency 50/60HZ
Load Voltage Rating 20-60 VDC
Output Power 20 Watts
Max. Operating Temp. 55
Min. Operating Temp. 0
Battery Run Time 90 min
Battery Chemistry Type NiCd
Battery Recharge Time 24 hours
Battery Activation Unit Connector
Life Safety Testing Manual Testing
Regulatory Listing cUL, NFPA 101
Compliance Listing CA Title 20, ROHS
Environmental Listing Damp Location
Series ILB

Read More Read Less
