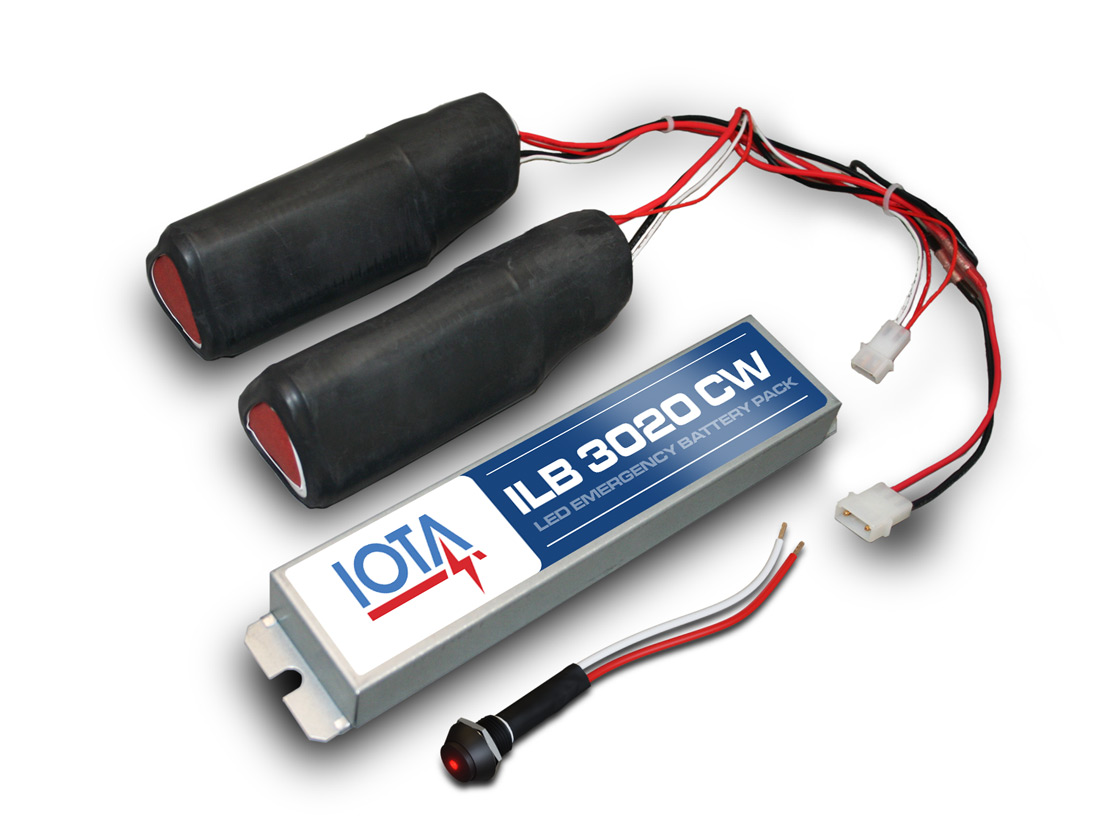

IOTA ILB3020 CW 600MA IPS
Dimensions - ILB3020 CW - Length: 9.5in, Width: 2in, Height: 1in, Battery Length: 6.125in, Battery Width: 2.25in, Battery Height: 2.375in, Add aproximately 1/8in to battery width and height to accommodate the heating blanket.

ILB3020 CW IPS Emergency Driver

Cold Weather, Constant Current LED Emergency Driver for IP67 Applications Discontinued

By Iota

  • Overview
  • Specifications

This product webpage has been discontinued. Please see the suggested products below or contact your local sales representative.

Product Type Emergency LED Driver
Voltage Rating 120/277
Frequency 60HZ
Load Voltage Rating 26-32 VDC
Max. Operating Temp. 50
Min. Operating Temp. -20
Battery Run Time 90 min
Battery Chemistry Type NiCd
Battery Recharge Time 24 hours
Regulatory Listing NFPA 101, UR
Compliance Listing ROHS
Environmental Listing Damp Location, IP67
Series ILB3020
