IOTA ILBSL CP05

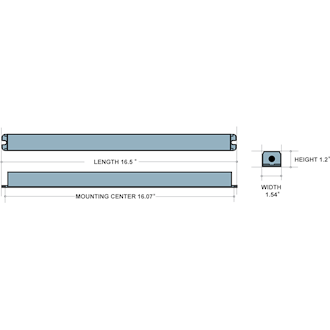

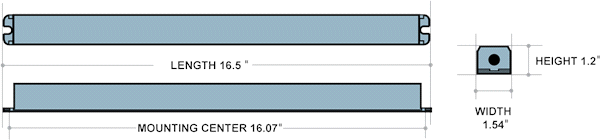

Dimensions - ILBSL CP05 - Length: 16.5in, Width: 1.54in, Height: 1.2in, Mounting Center: 16.07in
Video - ILB CP wiring

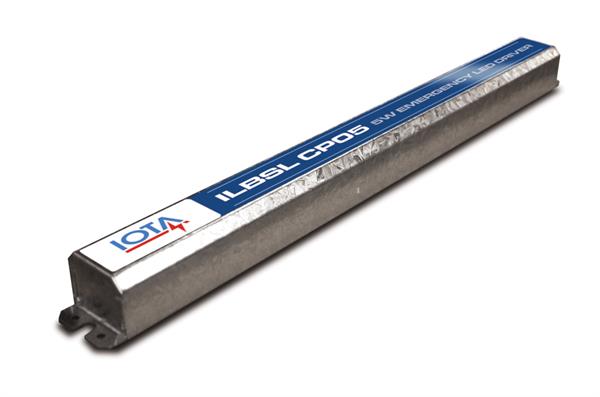

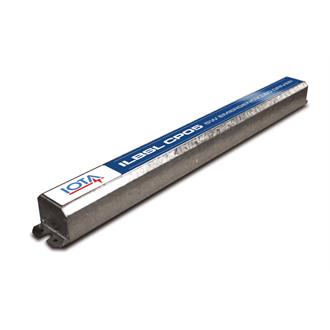

ILBSL CP05 Emergency Driver

5 Watt Constant Power, Slim Profile LED Emergency Driver

By Iota

  • Overview
  • Specifications
The ILBSL CP05 from IOTA is a UL Listed LED emergency driver that allows the same LED fixture to be used for both normal and emergency operation. In the event of a power failure, the ILBSL CP05 switches to the emergency mode and operates the existing fixture for 90 minutes. The unit contains a battery, charger, and converter circuit in a single slim profile can for installation within the channel space or wireway. The Constant Power (CP) design of the ILBSL CP05 maintains the output wattage to the LED array even as system voltage diminishes, providing a consistent illumination level for the full 90-minute duration.
LED Operation
  • 5 Watts Constant Power
  • 10-60 VDC Nominal Output
Product Advantages
  • Slim Profile housing allows integral installation within restrictive and narrow channel spaces of strip and troffer fixtures
  • UL Listed for field installation
  • Constant Power Design maintains emergency illumination through 90-minute runtime with no light degredataion
  • Two-wire universal AC input
  • Self-sensing output voltage allows the CP Series to operate various product types, such as downlights, troffers or strips, reducing product SKUs for emergency options
Features
  • UL 924 Listed for U.S. and Canada
  • UL 1310 Certified, Class 2 Compliant
  • Long life high temperature recyclable Ni-Cad battery
  • Galvanized steel case
  • Includes single-piece TBTS test switch and charge indicator accessory
  • For use with switched and unswitched fixtures
  • Meets or exceeds all National Electric Code and Life Safety Code Emergency Lighting Requirements
  • Rated for use in Plenum, Damp Location, Recessed Type IC, and Enclosed and Gasketed Luminaires
  • RoHS Compliant
  • Patented. Visit iotaengineering.com/patents for more details
Read More
Read Less
Product Type Emergency LED Driver
Voltage Rating 120-277
Frequency 50/60HZ
Load Voltage Rating 10-60 VDC
Output Power 5 Watts
Max. Operating Temp. 55
Min. Operating Temp. 0
Battery Run Time 90 min
Battery Chemistry Type NiCd
Battery Recharge Time 24 hours
Battery Activation Unit Connector
Life Safety Testing Manual Testing
Regulatory Listing cUL, NFPA 101
Compliance Listing ROHS
Environmental Listing Damp Location
Series ILBSL
