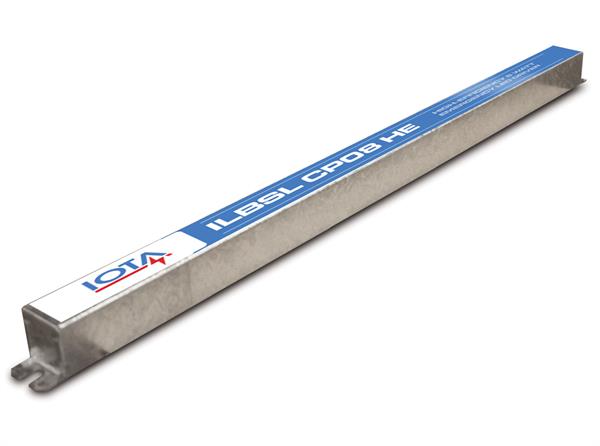

ILBSL CP08 Emergency Driver

8 Watt Constant Power, High Efficiency, Slim Profile LED Emergency Driver for CA Title 20

By IOTA

    CA Title 20
  • Overview
  • Specifications
The ILBSL CP08 HE from IOTA is a UL Listed LED emergency driver that allows the same LED fixture to be used for both normal and emergency operation. In the event of a power failure, the ILBSL CP08 HE switches from the existing normal driver to operate the fixture in the emergency mode for up to 90 minutes. The unit contains a battery, charger, and converter circuit in a single slim profile can for installation within the channel space or wireway. The Constant Power (CP) design of the ILBSL CP08 HE maintains the output wattage to the LED array even as system voltage diminishes, providing a consistent illumination level for the full 90-minute duration. The ILBSL CP08 HE features high-efficiency performance and is certified in the CA Title 20 Appliance Efficiency Database.
LED Operation
  • 8 Watts Constant Power
  • 10-60 VDC Nominal Output
Product Advantages
  • High Efficiency Performance meets CA T20 battery charger efficiency standards

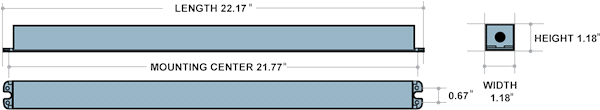

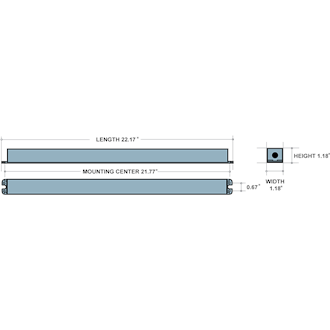

  • Slim Profile housing allows integral installation within restrictive and narrow channel spaces of strip and troffer fixtures
  • UL Listed for field installation
  • Constant Power Design maintains emergency illumination through 90-minute runtime with no light degredataion
  • Two-wire universal AC input
  • Self-sensing output voltage allows the CP Series to operate various product types, reducing product SKUs for emergency options
Features
  • UL 924 Listed for U.S. and Canada
  • UL 1310 Certified, Class 2 Compliant
  • Long life high temperature recyclable Ni-Cad battery
  • Galvanized steel case
  • Includes single-piece TBTS test switch and charge indicator accessory
  • For use with switched and unswitched fixtures
  • Meets or exceeds all National Electric Code and Life Safety Code Emergency Lighting Requirements
  • Rated for use in Plenum, Damp Location, Recessed Type IC, and Enclosed and Gasketed Luminaires
  • RoHS Compliant
  • Patented. Visit iotaengineering.com/patents for more details
Read More
Read Less
Product Type Emergency LED Driver
Voltage Rating 120-277
Frequency 50/60HZ
Load Voltage Rating 10-60 VDC
Output Power 8 Watts
Max. Operating Temp. 55
Min. Operating Temp. 0
Battery Run Time 90 min
Battery Chemistry Type NiCd
Battery Recharge Time 24 hours
Battery Activation Unit Connector
Life Safety Testing Manual Testing
Regulatory Listing cUL, NFPA 101
Compliance Listing CA Title 20, ROHS
Environmental Listing Damp Location
Series ILBSL

Read More Read Less

  • Suggested Replacement Products

Product Information

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Copy & Paste Specification Sample Specification for the ILBSL CP08 HE 7/16/2020
    SPEC SHEET ILBSL CP08 HE Specifications Specification Sheet for the ILB CP08 HE 9/24/2019 View
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    3D Model ILBSL CP08 HE STEP File - 3D Model of ILBSL CP08 HE 7/15/2020
    Accessories IP67 Test Switch Accessory for Select IOTA Drivers The IPS is an IP67-rated component purchased separately for select IOTA emergency drivers 10/6/2021 View
    Installation Instructions ILBSL HE Manual Installation Manual for ILBSL HE (High Efficiency) Models 9/24/2019 View
    Material Safety Data Sheet MSDS for nickel-cadmium drivers and ballasts Safety Data Sheet for Ni-Cad emergency battery component 5/12/2021 View
    Technical Bulletins Comprensión de la Potencia Constante Maximiza la seguridad en las salidas de emergencia utilizando potencia constante real (CP) 4/12/2021 View
    Technical Bulletins The Need for Surge Protection IOTA emergency drivers feature enhanced designs for withstanding exposure to electrical surges. 4/5/2021 View
    Technical Bulletins Understanding Constant Power Understand the benefits of IOTA's patented Constant Power emergency LED driver design 9/16/2020 View
    Wiring Diagram Dual Negative AC Driver DWG File - ILB CP with Dual Negative AC Driver 6/26/2020
    Wiring Diagram Dual Negative AC Driver PDF File - ILB CP with Dual Negative AC Driver 6/26/2020 View
    Wiring Diagram Step Down Transformer PDF File - ILB CP with Step Down Transformer 6/26/2020 View
    Wiring Diagram Step Down Transformer DWG File - ILB CP with Step Down Transformer 6/26/2020
    Wiring Diagram Typical Installation PDF File - Typical Installation with TBTS Test Accessory 6/26/2020 View
    Wiring Diagram Typical Installation DWG File - Typical Installation with TBTS Test Accessory 6/26/2020
  • BIM Models (Revit)

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Application Guide Cableado del IOTA ILB CP Pasos rápidos para conectar correctamente un driver de emergencia LED IOTA a su luminaria 4/12/2021 View
    Application Guide Contractor Insider - Auto-Sense Learn how IOTA Auto-Sense simplifies selecting the proper emergency driver for LED luminaires. 2/8/2021 View
    Application Guide Contractor Insider - Emergency Lumen Output A quick guide on understanding how wattage correlates with emergency lumen output 9/15/2021 View
    Application Guide ILB CP Lumen Reference Chart Quickly identify IOTA LED Emergency Drivers that meet your desired lumen levels 1/25/2022 View
    Application Guide ILB CP Wiring Reference Guide Quick steps for properly adding an IOTA ILB CP LED Emergency Driver to your luminaire 4/12/2021 View
    Application Guide Tabla de Referencia de Lumen de ILB CP Identifique rápidamente los drivers LED de emergencia de IOTA que cumplen con los niveles de lumen deseados 4/12/2021 View
