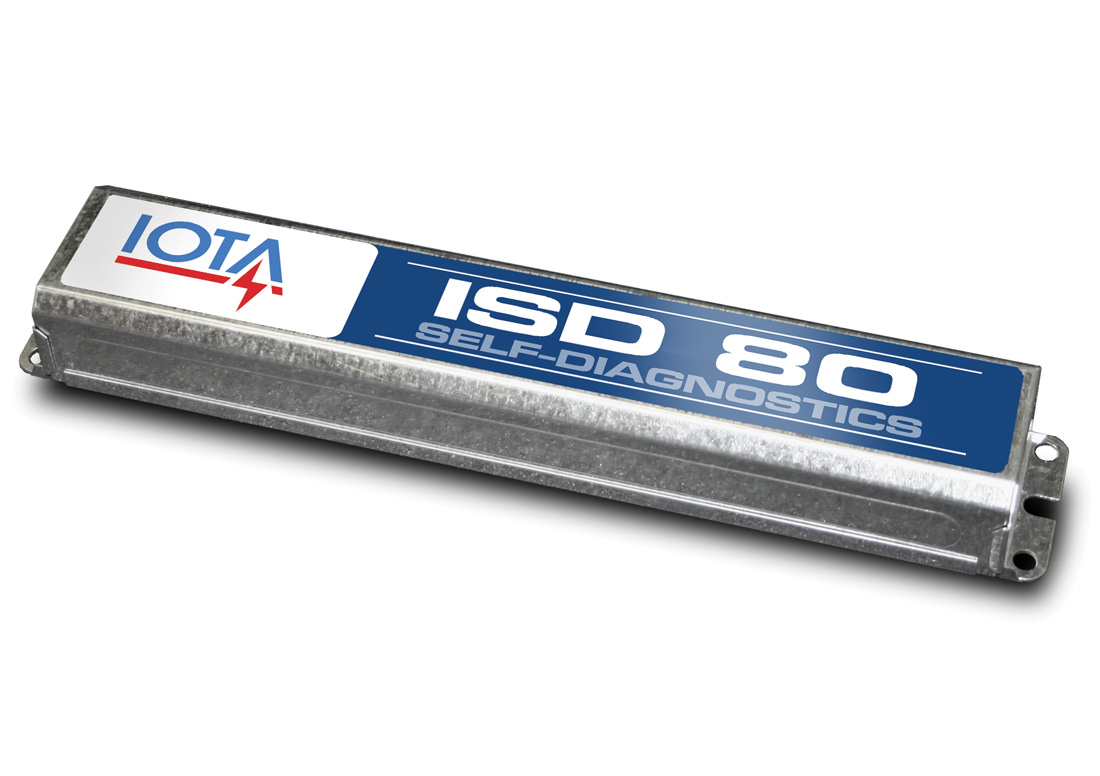

Product Image
IOTA ISD80
Dimensions - ISD80 - Length: 13.3in, Width: 2.4in, Height: 1.5in, Mounting Center: 12.75in

ISD80 Emergency Ballast

Self Diagnostic Emergency Ballast for Linear LED Retrofit (TLED) and Fluorescent Luminaires

By IOTA

  • Overview
  • Specifications
The ISD80 Self-Diagnostic Fluorescent Emergency Ballast allows the same fixture to be used for both normal and emergency operation. In the event of a power failure, the ISD80 switches to the emergency mode and operates one of the existing lamps for 90 minutes. The unit contains a battery, charger, and inverter circuit in a single can and can be mounted in the wireway or on top of the fixture. The ISD80 will self-test for thirty seconds monthly and for ninety minutes annually and will diagnose potential problems within the light fixture. If problems are encountered, the unit will specify failure of the battery, charge, lamp, or inverter by means of a flashing red indicator.
Initial Lumen Output
  • 1100 Lumens
Lamps Operated
  • Select LED Retrofit Tubes
  • (1) 2-4ft. Bipin HO and VHO T8 and T12
  • (1) 2-4ft. 14W-54W T5
  • (1) 18W-55W Long Compact
Features
  • Automatically conducts monthly and annual testing
  • Internal self-diagnostic circuitry tests lamp frequency, battery charge and discharge current
  • AC output for compatibility with low mercury content amalgam lamps
  • Time delay feature for compatibility with end-of-lamp-life circuitry
  • Open circuit isolation protects unit when load is absent
  • Long life high temperature recyclable Ni-Cad battery
  • Galvanized steel case
  • Includes single-piece LPTS test switch and dual-color charge indicator
  • For use with switched and unswitched fixtures
  • Lamp selector leads optimize light output for the desired lamp type
  • Suitable for use in damp locations, plenum, and enclosed and gasketed fixtures
  • Meets or exceeds all National Electric Code and Life Safety Code Emergency Lighting Requirements
  • RoHS Compliant
Read More
Read Less
Product Type Emergency Ballast
Voltage Rating 120-277
Frequency 50/60HZ
Max. Operating Temp. 55
Min. Operating Temp. 0
Battery Run Time 90 min
Battery Chemistry Type NiCd
Battery Recharge Time 24 hours
Battery Activation Unit Connector
Life Safety Testing Self Diagnostics, Self Test
Regulatory Listing C-UL-US, NFPA 101
Compliance Listing ROHS
Environmental Listing Damp Location
Series ISD80

Read More Read Less

  • Suggested Replacement Products

Product Information

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET ISD80 Specifications Specification Sheet for the ISD80 10/2/2019 View

  • Guideline Specifications

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions ISD80 Manual Installation Manual for the ISD80 9/24/2019 View
    Material Safety Data Sheet MSDS for nickel-cadmium drivers and ballasts Safety Data Sheet for Ni-Cad emergency battery component 5/12/2021 View
    Wiring Diagram (DWG) Four Lamp Instant Start Ballast DWG Format - Connections to a four lamp luminaire (one emergency lamp) with an instant start ballast 7/10/2020
    Wiring Diagram (DWG) Four Lamp Rapid Start Ballast DWG Format - Connections to a four lamp luminaire (one emergency lamp) with a rapid start ballast 7/10/2020
    Wiring Diagram (DWG) One Lamp Instant Start Ballast DWG Format - Connections to a one lamp luminaire with an instant start ballast 7/10/2020
    Wiring Diagram (DWG) One Lamp Rapid Start Ballast DWG Format - Connections to a one lamp luminaire with a rapid start ballast 7/10/2020
    Wiring Diagram (DWG) Three Lamp Instant Start Ballast DWG Format - Connections to a three lamp luminaire (one emergency lamp) with an instant start ballast 7/10/2020
    Wiring Diagram (DWG) Three Lamp Rapid Start Ballast - Option A DWG Format - Connections to a three lamp luminaire (one emergency lamp) with a rapid start ballast 7/10/2020
    Wiring Diagram (DWG) Three Lamp Rapid Start Ballast - Option B DWG Format - Connections to a three lamp luminaire (one emergency lamp) with a rapid start ballast 7/10/2020
    Wiring Diagram (DWG) Two Lamp Instant Start Ballast DWG Format - Connections to a two lamp luminaire (one emergency lamp) with an instant start ballast 7/10/2020
    Wiring Diagram (DWG) Two Lamp Rapid Start Ballast DWG Format - Connections to a two lamp luminaire (one emergency lamp) with a rapid start ballast 7/10/2020
    Wiring Diagram (PDF) Four Lamp Instant Start Ballast PDF Format - Connections to a four lamp luminaire (one emergency lamp) with an instant start ballast 7/10/2020 View
    Wiring Diagram (PDF) Four Lamp Rapid Start Ballast PDF Format - Connections to a four lamp luminaire (one emergency lamp) with a rapid start ballast 7/10/2020 View
    Wiring Diagram (PDF) One Lamp Instant Start Ballast PDF Format - Connections to a one lamp luminaire with an instant start ballast 7/10/2020 View
    Wiring Diagram (PDF) One Lamp Rapid Start Ballast PDF Format - Connections to a one lamp luminaire with a rapid start ballast 7/10/2020 View
    Wiring Diagram (PDF) Three Lamp Instant Start Ballast PDF Format - Connections to a three lamp luminaire (one emergency lamp) with an instant start ballast 7/10/2020 View
    Wiring Diagram (PDF) Three Lamp Rapid Start Ballast - Option A PDF Format - Connections to a three lamp luminaire (one emergency lamp) with a rapid start ballast 7/10/2020 View
    Wiring Diagram (PDF) Three Lamp Rapid Start Ballast - Option B PDF Format - Connections to a three lamp luminaire (one emergency lamp) with a rapid start ballast 7/10/2020 View
    Wiring Diagram (PDF) Two Lamp Instant Start Ballast PDF Format - Connections to a two lamp luminaire (one emergency lamp) with an instant start ballast 7/10/2020 View
    Wiring Diagram (PDF) Two Lamp Rapid Start Ballast PDF Format - Connections to a two lamp luminaire (one emergency lamp) with a rapid start ballast 7/10/2020 View
