IOTA POE CP12
Dimensions - POE CP12 - Length: 15.6in, Width: 2.8in, Height: 1.2in, Mounting Center: 15.2in

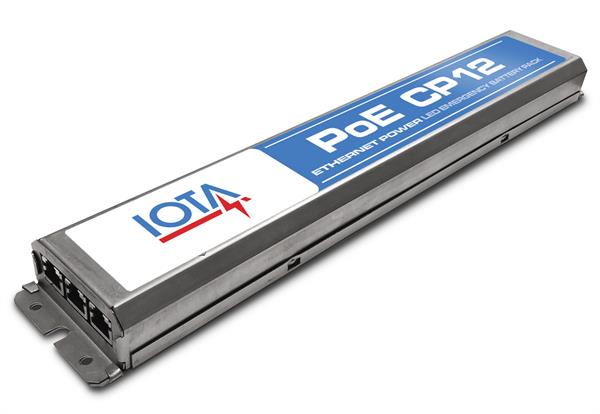

POE CP12 Emergency LED Driver

12 Watt Constant Power LED Emergency Driver for Power-over-Ethernet Applications

By Iota

  • Overview
  • Specifications
The POE CP12 from IOTA Engineering is a UL Listed emergency lighting LED battery pack (LED emergency driver) for Power over the Ethernet (PoE) systems, and works in conjunction with a PoE normal lighting LED driver to convert a PoE normal lighting luminaire to an emergency luminaire compliant with NFPA-101. In the event of a power failure, the POE CP12 switches to the emergency mode and operates the existing fixture for 90 minutes. The unit contains a battery, charger, and converter circuit in a single can and is available with different output configurations for individual fixture requirements.
LED Operation
  • 12 Watts Constant Power
  • 10-60 VDC Nominal Output
Product Advantages
  • Power-over-Ethernet Input
  • UL Listed for field and factory installation
  • Constant Power Design maintains illumination throughout the 90-minute runtime with no light degradation
  • Self-sensing output voltage allows the CP Series to operate various product types, such as downlights, troffers, or strips, reducing product SKUs for emergency options.
Features
  • UL 924 Listed, UL Listed to FTBV
  • UL 1310 Certified, Output Class 2 Compliant
  • RJ-45 or hardwire connections to Driver and LED array available
  • Long life high temperature recyclable Ni-Cad battery
  • Galvanized steel case
  • Includes single-piece TBTS test switch and charge indicator accessory kit
  • Meets or exceeds all National Electric Code and Life Safety Code Emergency Lighting Requirements
  • Suitable for use in Plenum, Damp Location, Recessed Type IC, and Enclosed and Gasketed Luminaires
  • RoHS Compliant
Read More
Read Less
Product Type Emergency LED Driver
Load Voltage Rating 10-60 VDC
Output Power 12 Watts
Max. Operating Temp. 50
Min. Operating Temp. 0
Battery Run Time 90 min
Battery Chemistry Type NiCd
Battery Recharge Time 24 hours
Battery Activation Unit Connector
Life Safety Testing Manual Testing
Regulatory Listing UL
Compliance Listing ROHS
Environmental Listing Damp Location
Series POE
