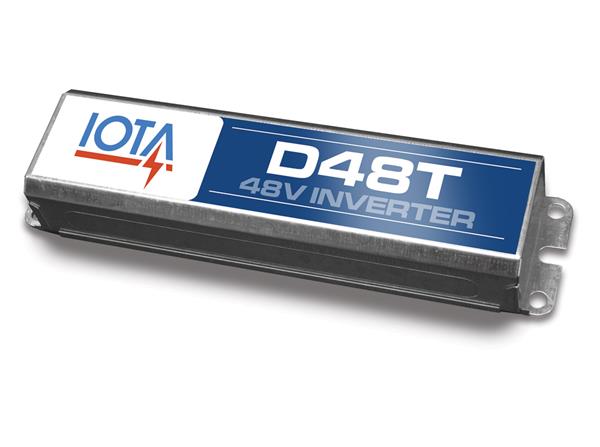

D48T Inverter Ballast

Inverter Ballast for 48V Central Battery Systems

By IOTA

  • Overview
  • Specifications
The IOTA D48T provides emergency illumination at full light output, and operates in conjunction with the existing lamps and ballasts in facilities that have 48V central battery systems. The IOTA D48T is a combination solid state 48V inverter ballast and AC sensing relay. When the AC power fails, the D48T automatically switches to the emergency mode and operates one of the existing lamps at full light output for as long as the 48V battery capacity is available. Primary application of the IOTA D48T is in telephone company switching buildings.
Output
  • Full Light Output
Lamps Operated
  • 2-5 ft. Single, Bipin, T8-T12 HO or VHO fluorescent lamps
Product Advantages
  • Designed for 48V Central Battery Systems
Features
  • Will cold start and operate all specified lamps
  • Galvanized steel case
  • Dual Voltage 120/277V 60Hz
  • Suitable for use in plenum fixtures
  • Meets or exceeds all NEC, IBC, and Life Safety Code Emergency Lighting Requirements
  • RoHS Compliant
Read More
Read Less
Product Type Emergency Ballast
Voltage Rating 120/277
Frequency 60HZ
Battery Activation Unit Connector
Life Safety Testing Manual Testing
Regulatory Listing UL
Compliance Listing ROHS
Series D48T

  • Suggested Replacement Products

Product Information

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET D48T Specifications Specifications for the D48T 12/4/2019 View

  • Guideline Specifications

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions Installation Manual Installation Instructions for the D48T 12/4/2019 View
    Wiring Diagram (DWG) DC Operation Only Connections to one lamp luminaire, DC operation only (no AC ballast) 6/29/2020
    Wiring Diagram (DWG) Four Lamp Instant Start Ballast Connections to four lamp luminaire (one emergency lamp) with instant start ballast 6/29/2020
    Wiring Diagram (DWG) One Lamp Instant Start Ballast Connections to one lamp luminaire with instant start ballast 6/29/2020
    Wiring Diagram (DWG) One Lamp Rapid Start Ballast Connections to one lamp luminaire with rapid start ballast 6/29/2020
    Wiring Diagram (DWG) Three Lamp Instant Start Ballast Connections to three lamp luminaire (one emergency lamp) with instant start ballast 6/29/2020
    Wiring Diagram (DWG) Three Lamp Rapid Start Ballast Connections to three lamp luminaire (one emergency lamp) with rapid start ballast 6/29/2020
    Wiring Diagram (DWG) Two Lamp Instant Start Ballast Connections to two lamp luminaire (one emergency lamp) with instant start ballast 6/29/2020
    Wiring Diagram (DWG) Two Lamp Rapid Start Ballast - A Option A - Connections to two lamp luminaire (one emergency lamp) with rapid start ballast 6/29/2020
    Wiring Diagram (DWG) Two Lamp Rapid Start Ballast - B Option B - Connections to two lamp luminaire (one emergency lamp) with rapid start ballast 6/29/2020
    Wiring Diagram (PDF) DC Operation Only Connections to one lamp luminaire, DC operation only (no AC ballast) 6/29/2020 View
    Wiring Diagram (PDF) Four Lamp Instant Start Ballast Connections to four lamp luminaire (one emergency lamp) with instant start ballast 6/29/2020 View
    Wiring Diagram (PDF) One Lamp Instant Start Ballast Connections to one lamp luminaire with instant start ballast 6/29/2020 View
    Wiring Diagram (PDF) One Lamp Rapid Start Ballast Connections to one lamp luminaire with rapid start ballast 6/29/2020 View
    Wiring Diagram (PDF) Three Lamp Instant Start Ballast Connections to three lamp luminaire (one emergency lamp) with instant start ballast 6/29/2020 View
    Wiring Diagram (PDF) Three Lamp Rapid Start Ballast Connections to three lamp luminaire (one emergency lamp) with rapid start ballast 6/29/2020 View
    Wiring Diagram (PDF) Two Lamp Instant Start Ballast Connections to two lamp luminaire (one emergency lamp) with instant start ballast 6/29/2020 View
    Wiring Diagram (PDF) Two Lamp Rapid Start Ballast - A Option A - Connections to two lamp luminaire (one emergency lamp) with rapid start ballast 6/29/2020 View
    Wiring Diagram (PDF) Two Lamp Rapid Start Ballast - B Option B - Connections to two lamp luminaire (one emergency lamp) with rapid start ballast 6/29/2020 View
