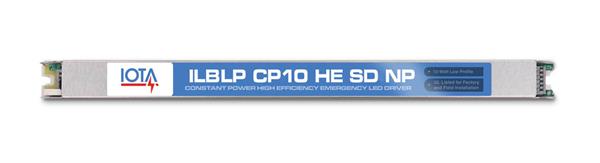

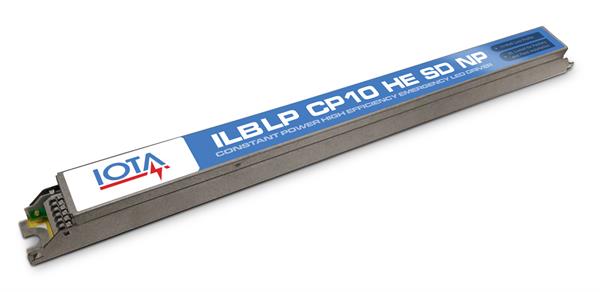

ILBLP CP10 HE SD NP Emergency LED Driver

10 Watt Constant Power, Low and Slim Profile LED Emergency Driver with Poke-in Connection Terminals

By IOTA

    CA Title 20
  • Overview
  • Specifications
The ILBLP CP10 HE SD NP from IOTA is a UL Listed emergency LED driver that allows the same LED fixture to be used for both normal and emergency operation. In the event of a power failure, the ILBLP CP10 HE SD NP switches power from the normal AC Driver and operates the fixture for 90 minutes in the emergency mode from the unit’s battery supply. The unit contains a battery, charger, and converter circuit in a narrow profile enclosure for installation within the channel space or wireway, and features poke-in wire terminal blocks for connections to the normal driver, LED array, and test components. The Constant Power design of the ILBLP CP10 HE SD NP maintains the output wattage to the LED array even as the system voltage diminishes, providing a consistent illumination level for the full 90-minute runtime. Features lithium battery technology for significantly decreased form factor and includes automatic monthly and annual self-testing features as standard.
LED Operation
  • 10 Watts Constant Power
  • 10-60 VDC Nominal Output
Product Advantages
  • Constant Power Performance

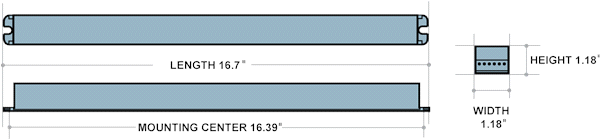

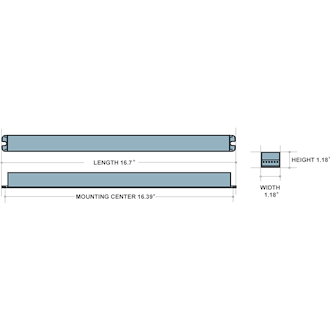

  • Minimum Mounting Footprint

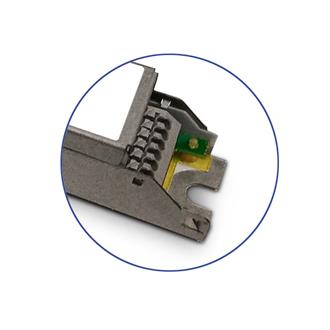

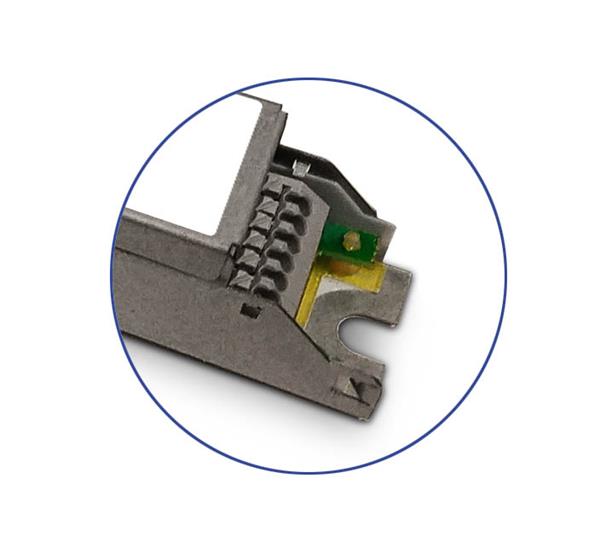

  • Poke-In Connection Terminals
  • Self-Diagnostic / Self Testing
Features
  • UL 924 Listed
  • Auto-Sense 10-60VDC output is UL 1310 Certified, Output Class 2 Compliant
  • Galvanized steel case
  • Includes single-piece TBTS test switch and charge indiciator accessory kit
  • For use with switched or unswitched fixtures
  • Meets or exceeds all NEC, IBC, and Life Safety Code Emergency Lighting Requirements
  • Certified for CA Title 20
  • Suitable for use in Damp Location, Recessed Type IC, and Enclosed and Gasketed Luminaires
  • RoHS Compliant
  • Patented. Visit iotaengineering.com/patents for more details
Read More
Read Less
Product Type Emergency LED Driver
Voltage Rating 120-277
Frequency 50/60HZ
Load Voltage Rating 10-60 VDC
Output Power 10 Watts
Max. Operating Temp. 55
Min. Operating Temp. 0
Battery Run Time 90 min
Battery Chemistry Type Lithium Iron Phosphate
Battery Recharge Time 24 hours
Battery Activation AC Activate
Life Safety Testing Self Diagnostics, Self Test
Regulatory Listing C-UL-US, cUL
Compliance Listing CA Title 20, ROHS
Series ILBLP

Read More Read Less

  • Suggested Replacement Products

Product Information

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Copy & Paste Specification Sample Specification for the ILBLP CP10 HE SD NP 7/16/2020
    SPEC SHEET ILBLP CP10 HE SD NP Specifications Specification Sheet for the ILBLP CP10 HE SD NP 6/3/2022 View
  • Guideline Specifications

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    3D Model ILBLP CP10 HE SD NP STEP File - ILBLP CP10 HE SD NP (Narrow profile with poke-in connection terminals) 7/15/2020
    Installation Instructions ILBLP CP10 HE SD NP Installation Manual for the ILBLP CP10 HE SD NP 3/31/2020 View
    Technical Bulletins Comprensión de la Potencia Constante Maximiza la seguridad en las salidas de emergencia utilizando potencia constante real (CP) 4/12/2021 View
    Technical Bulletins LP Designs with Advanced Lithium Technology How engineering diligence and careful handling helps improve reliability of IOTA ILBLP drivers 6/25/2020 View
    Technical Bulletins The Need for Surge Protection IOTA emergency drivers feature enhanced designs for withstanding exposure to electrical surges. 4/5/2021 View
    Technical Bulletins Understanding Constant Power Understand the benefits of IOTA's patented Constant Power emergency LED driver design 2/11/2022 View
    Wiring Diagram (DWG) ILBLP Wiring Diagram DWG Format - Typical Installation of an ILBLP CP with Poke-In Connection Terminals 3/31/2020
    Wiring Diagram (PDF) ILBLP Wiring Diagram PDF Format - Typical Installation of an ILBLP CP with Poke-In Connection Terminals 3/31/2020 View
  • BIM Models (Revit)

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Application Guide Contractor Insider - Emergency Lumen Output A quick guide on understanding how wattage correlates with emergency lumen output 9/15/2021 View
    Application Guide ILB CP Lumen Reference Chart Quickly identify IOTA LED Emergency Drivers that meet your desired lumen levels 1/25/2022 View
    Application Guide Tabla de Referencia de Lumen de ILB CP Identifique rápidamente los drivers LED de emergencia de IOTA que cumplen con los niveles de lumen deseados 4/12/2021 View
    Brochures ILBLP CP10 HE SD NP Spotlight Dive into the features and benefits of the ILBLP CP10 HE SD NP 4/3/2020 View
    Brochures IOTA HE Products for California Title 20 IOTA Emergency Lighting Solutions Certified in the Title 20 Appliance Efficiency Database 7/21/2022 View
    Brochures IOTA Tech Brief: What is AC Activate Understand the key benefits that AC Activate technology brings to the installation process. 2/11/2022 View
    Sell Sheet IOTA-Contractor-Insider_AC-Activate-Explained.pdf How IOTA AC Activate Saves Time and Money on the Jobsite 11/5/2021 View
