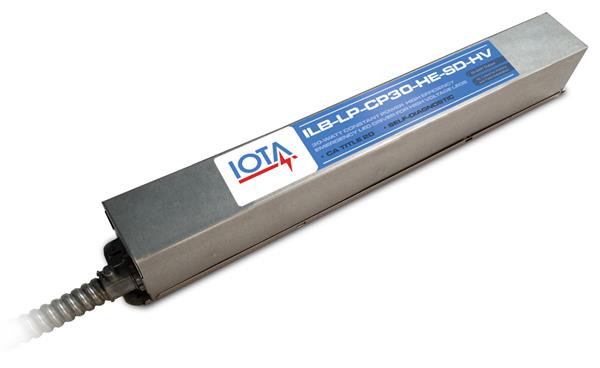

IOTA ILBLP CP30 HE SD HV
Video - IOTA ILBLP Series

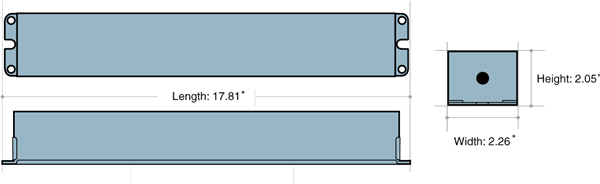

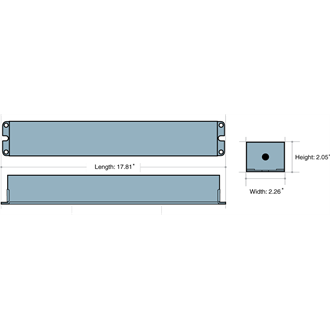

Dimensions - ILBLP CP30 HE SD HV - Length: 17.81 in., Width: 2.26 in., Height: 2.05 in.

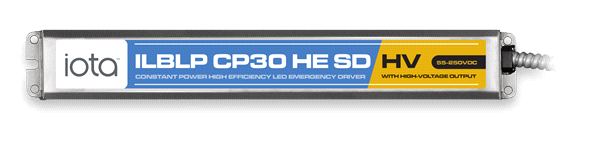

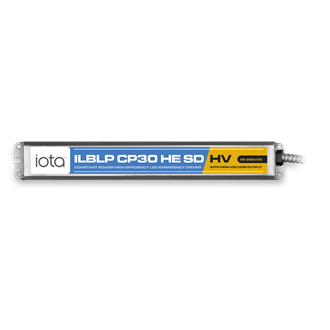

ILBLP CP30 HE SD HV Emergency LED Driver

30W Emergency LED Driver for non-Class 2 55-250VDC LED Applications

By IOTA

    CA Title 20
  • Overview
  • Specifications
The IOTA ILBLP CP30 HE SD HV is a UL Listed emergency LED driver for field and factory installation that allows a fixture with 55-250VDC Non-Class 2 LED lighting loads to be used for both normal and emergency operation. In the event of a power failure, the ILBLP CP30 HE SD HV switches to the emergency mode and operates the existing fixture for 90 minutes. The unit contains a battery, charger, and converter circuit in a single enclosure with the option of either single or dual flexible conduit for wiring to the fixture and test accessories. The patented Constant Power design of the unit maintains the rated output wattage to the LED array even as the battery voltage diminishes, resulting in a constant illumination level for the entire emergency runtime. Features lithium battery technology for significantly decreased form factor and includes automatic monthly and annual self-testing features as standard. Self-diagnostic status is communicated via the illuminated single-piece test accessory, which can be mounted up to 25 ft. from the unit.
LED Operation
  • 30 Watts Constant Power
  • 55-250 VDC Output
Product Advantages
  • Auto-Sensing Non-Class 2 Output
  • Constant Power Performance
  • Self-Diagnostic / Self Testing
  • High Output for Increased Illumination
  • Certified for CA Title 20
Features
  • UL 924 Listed for U.S. and Canada
  • Two flexible conduit options for wiring to the fixture
  • AC-Activate circuity simplifies wiring by eliminating the need for manual battery connection during installation
  • Maintenance-free, high-temp recyclable LiFePO4 for significantly reduced space requirements
  • Durable, galvanized steel enclosure
  • Single-piece test switch and charge indicator can be remote-mounted up to 25 ft
  • For use with switched or unswitched fixtures
  • 5-year warranty.
  • Meets or exceeds all NEC, IBC, and Life Safety Code Emergency Lighting Requirements
  • Suitable for use in plenum, damp location, and enclosed and gasketed luminaires
  • RoHS Compliant

high-bay, elevated fixtures
Read More
Read Less
Product Type Emergency LED Driver
Voltage Rating 120-277
Frequency 50/60HZ
Load Voltage Rating 55-250 VDC
Output Power 30 Watts
Max. Operating Temp. 55
Min. Operating Temp. 0
Battery Run Time 90 min
Battery Chemistry Type Lithium Iron Phosphate
Battery Recharge Time 24 hours
Battery Activation AC Activate
Life Safety Testing Self Diagnostics, Self Test
Regulatory Listing C-UL-US, cUL
Compliance Listing CA Title 20, ROHS
Series ILBLP

Read More Read Less

  • Suggested Replacement Products

Product Information

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Copy & Paste Specification Sample Specification for ILBLP CP30 HE SD HV models 7/16/2020
    SPEC SHEET ILBLP-CP30-HE-SD-HV Spec Sheet.pdf Specification Sheet for ILBLP CP30 HE SD HV 5/22/2023 View

  • Guideline Specifications

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions A Mounting Style (TBTS Test Switch) ILBLP CP HE SD HV A (Dual Flex) Mounting Style with TBTS Test Switch 5/3/2022 View
    Installation Instructions B Mounting Style (TBTS Test Switch) ILBLP CP HE SD HV B (Integral) Mounting Style with TBTS Test Switch 5/3/2022 View
    Installation Instructions S Mounting Style (TBTS Test Switch) ILBLP CP HE SD HV S (Single Flex) Mounting Style with TBTS Test Switch 5/3/2022 View
    Material Safety Data Sheet MSDS sheet for 30W LiFePO Emergency Driver Safety Data Sheet for emergency driver battery component 5/12/2021 View
    Technical Bulletins Comprensión de la Potencia Constante Maximiza la seguridad en las salidas de emergencia utilizando potencia constante real (CP) 4/12/2021 View
    Technical Bulletins LP Designs with Advanced Lithium Technology How engineering diligence and careful handling helps improve reliability of IOTA ILBLP drivers 6/25/2020 View
    Technical Bulletins The Need for Surge Protection IOTA emergency drivers feature enhanced designs for withstanding exposure to electrical surges. 4/5/2021 View
    Technical Bulletins Understanding Constant Power Understand the benefits of IOTA's patented Constant Power emergency LED driver design 2/11/2022 View
    Wiring Diagram (English) Typical Installation - TBTS PDF Format - Typical Installation with TBTS Test Accessory 5/3/2022 View
    Wiring Diagram (English) Typical Installation - TBTS DWG Format - Typical Installation with TBTS Test Accessory 5/3/2022
    Wiring Diagram (French) Installation Typique - TBTS PDF Format - Installation typique avec accessoire de test TBTS 5/3/2022 View
    Wiring Diagram (French) Installation Typique - TBTS DWG Format - Installation typique avec accessoire de test TBTS 5/3/2022

  • Revit Component Files (Non-Illuminated)

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Application Guide Application Brief for "HV" Emergency Drivers Reference and Comparison Chart for IOTA "HV" Emergency Drivers for non-Class 2 Forward Voltage LEDs 5/20/2020 View
    Application Guide Contractor Insider - Emergency Lumen Output A quick guide on understanding how wattage correlates with emergency lumen output 9/15/2021 View
    Application Guide Contractor Insider - Remote Mounting Guidelines A Quick Reference for knowing remote mounting capabilities of emergency lighting solutions. 10/21/2021 View
    Brochures IOTA HE Products for California Title 20 IOTA Emergency Lighting Solutions Certified in the Title 20 Appliance Efficiency Database 7/21/2022 View
    Brochures IOTA Tech Brief: What is AC Activate Understand the key benefits that AC Activate technology brings to the installation process. 2/11/2022 View
    Sell Sheet IOTA-Contractor-Insider_AC-Activate-Explained.pdf How IOTA AC Activate Saves Time and Money on the Jobsite 11/5/2021 View
