IOTA DLS 240 55A
IOTA DLS Series Tutorial - Product Features, FAQs, Troubleshooting and more...
IOTA DLS Series Battery Chargers and Power Supplies
Using a Digital Display with an IOTA DLS Charger / Converter
Series and Parallel operation with the DLS Charger / Converter

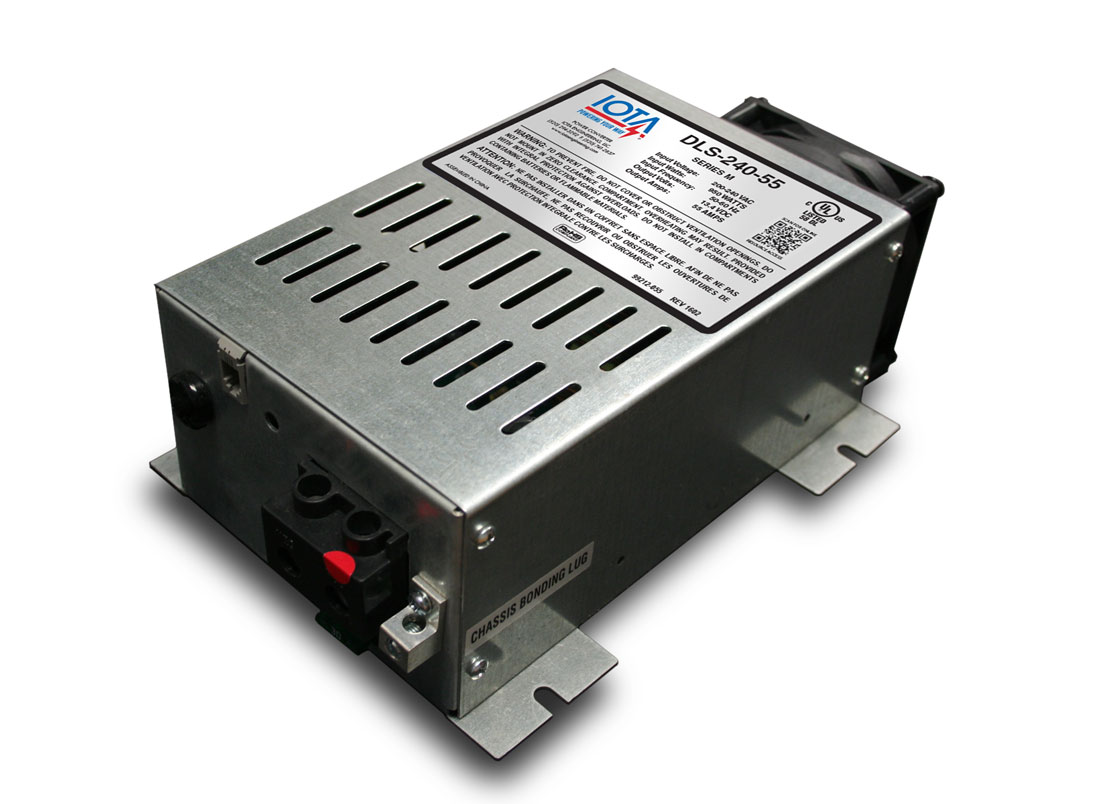

DLS 240 55A Converter and Charger

55 Amp AC\DC Power Converter and Battery Charger for 12V battery charging in 240VAC applications

by Iota

The DLS 240 55A Power Converter/Battery Charger from IOTA converts nominal 216-264 AC voltage to 13.4 DC voltage for both DC load operation and 12V battery charging.

As a power supply, the unit's tightly controlled regulation allows the user to operate a nominal 12VDC load up to 55 amps.

As a battery charger, the unit will maintain the battery, delivering its full-rated current when the battery capacity falls sufficiently low. The voltage is set to deliver its maximum current for the necessary period of time to minimize undue stress to the battery caused by heating of its cells. This helps to ensure the longest possible life of the battery. Over time, as the battery nears its full capacity, the DLS will automatically drop the current, providing a float-charge to the battery to prevent self-discharge of the cells.
Input Voltage
  • 216-264 VAC
Input Frequency
  • 50-60 Hz
Output Voltage
  • 13.4 VDC
Output Amperage
  • 55 Amps
  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & Revit (BIM)

  • Specifications

    Product Type Charger/Power Converter
    Voltage Rating 240
    Frequency 50/60HZ
    Load Voltage Rating 12VDC
    Amperage 55
    Maximum Operating Temperature 40
    Minimum Operating Temperature 0
    Regulatory Listing C-UL-US
    Series DLS
    Brand IOTA
