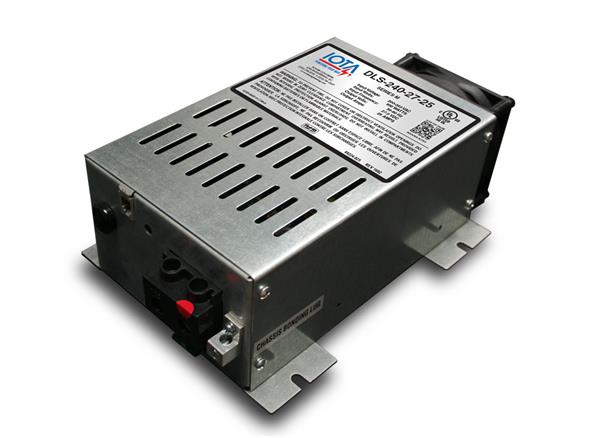

DLS 240 27V 25A Converter and Charger

25 Amp AC\DC Power Converter and Battery Charger for 24V battery charging in 240VAC applications

By IOTA

  • Overview
  • Specifications
The DLS 240 27V 25A Power Converter/Battery Charger from IOTA converts nominal 216-264 AC voltage to 27.2 DC voltage for both DC load operation and 24V battery charging.

As a power supply, the unit's tightly controlled regulation allows the user to operate a nominal 24VDC load up to 25 amps.

As a battery charger, the unit will maintain the battery, delivering its full-rated current when the battery capacity falls sufficiently low. The voltage is set to deliver its maximum current for the necessary period of time to minimize undue stress to the battery caused by heating of its cells. This helps to ensure the longest possible life of the battery. Over time, as the battery nears its full capacity, the DLS will automatically drop the current, providing a float-charge to the battery to prevent self-discharge of the cells.
Input Voltage
  • 216-264 VAC
Input Frequency
  • 50-60 Hz
Output Voltage
  • 27.2 VDC
Output Amperage
  • 25 Amps
Read More
Read Less
Product Type Charger/Power Converter
Voltage Rating 240
Frequency 50/60HZ
Load Voltage Rating 24VDC
Amperage 25
Max. Operating Temp. 40
Min. Operating Temp. 0
Regulatory Listing C-UL-US
Compliance Listing ROHS
Series DLS
  • Suggested Replacement Products

Product Information

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET DLS 240 27V 25A Specifications Specification Sheet for the IOTA DLS 240 27V 25A 5/12/2020 View
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    3D Model DLS - 6 in. Models STEP File - 3D Model of DLS units with a 6.0 in. Mounting Footprint 7/15/2020
    Installation Instructions DLS - 240 VAC to 27 VDC Models Installation Manual for DLS 240 VAC to 27 VDC Models 12/3/2021 View
    Technical Bulletins DLS Troubleshooting Steps Steps for troubleshooting issues with the IOTA DLS 5/12/2020 View
    Technical Bulletins DLS Wire Gauges and Lengths Recommended Wire Gauges and Lengths for Connecting to an IOTA DLS 5/12/2020 View
    Technical Bulletins Optimal Charging for 6-Volt Battery Systems Learn the "Balanced Charging" method for optimal charging of 6-volt batteries in 12-volt banks 5/12/2020 View
    Technical Bulletins Optimal Charging for Multiple Batteries in a Bank Learn how applying the "Balanced Charging" method may help increase battery life and performance 5/12/2020 View
    Technical Bulletins Series and ALM Lithium-Ion Batteries Technical Brief regarding performance of the IOTA DLS Series with NEC ALM battery technology 5/12/2020 View
    Wiring Diagram (DWG) Parallel Operation Typical configuration with DLS units connected in parallel 5/12/2020
    Wiring Diagram (DWG) Perfectly Balanced Charging - 4 Batteries Perfectly balanced charging with four batteries connected in parallel 5/12/2020
    Wiring Diagram (DWG) Perfectly Balanced Charging - 6 Batteries Perfectly balanced charging with six batteries connected in parallel 5/12/2020
    Wiring Diagram (DWG) Perfectly Balanced Charging - 8 Batteries Perfectly balanced charging with eight batteries connected in parallel 5/12/2020
    Wiring Diagram (DWG) Series Operation Typical configuration with DLS units connected in series 5/12/2020
    Wiring Diagram (PDF) Parallel Operation Typical configuration with DLS units connected in parallel 5/12/2020 View
    Wiring Diagram (PDF) Perfectly Balanced Charging - 4 Batteries Perfectly balanced charging with four batteries connected in parallel 5/12/2020 View
    Wiring Diagram (PDF) Perfectly Balanced Charging - 6 Batteries Perfectly balanced charging with six batteries connected in parallel 5/12/2020 View
    Wiring Diagram (PDF) Perfectly Balanced Charging - 8 Batteries Perfectly balanced charging with eight batteries connected in parallel 5/12/2020 View
    Wiring Diagram (PDF) Series Operation Typical configuration with DLS units connected in series 5/12/2020 View
  • BIM Models (Revit)

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Application Guide Charging Flooded Lead Acid Batteries for Long Life How to Prevent Sulfation and Excessive Gassing That Ruin 12V-48V Flooded Lead Acid Batteries 5/12/2020 View
    Application Guide From Sun to Battery Bank: Charging for PV Systems How effective battery charging is critical for off-grid photovoltaic power systems 5/12/2020 View
    Application Guide Solutions for Series and Parallel Installations Using multiple chargers for increasing voltage or amperage 5/12/2020 View
    Catalogs IOTA DLS Series Product Guide Dive into IOTA's powerful AC/DC Battery Charger / Power Converter solutions 5/12/2020 View
