IOTA ILBLP CP10 HE SD N
Video - IOTA ILBLP Series
Dimensions - ILBLP CP10 HE SD N - Length: 16.7 in., Mounting Center: 16.2 in., Width: 1.19 in., Height: 1.18 in.

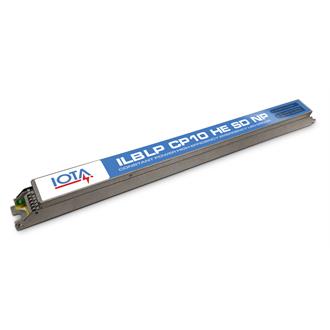

ILBLP CP10 HE SD N Emergency LED Driver

10 Watt Constant Power Slim Profile Emergency LED Driver with Self Diagnostics and High Efficiency Performance for CA Title 20

By IOTA

    CA Title 20
  • Overview
  • Specifications
The ILBLP CP10 HE SD N from IOTA is a UL Listed LED emergency driver that allows the same LED fixture to be used for both normal and emergency operation. In the event of a power failure, the ILBLP CP10 HE SD N switches power from the normal AC Driver and operates the fixture for 90 minutes in the emergency mode from the unit’s battery supply. The unit contains a battery, charger, and converter circuit in a narrow profile enclosure for installation within the channel space or wireway. Features lithium battery technology for significantly decreased form factor and includes automatic monthly and annual self-testing features as standard.
LED Operation
  • 10 Watts Constant Power
  • 15-55 VDC Nominal Output
Product Advantages
  • Constant Power Performance
    Constant wattage delivery maintaines illumination for the full emergency runtime with no degradation
  • Minimum Mounting Footprint
    Lithium battery and narrow enclosure design significantly decreases space requirements without sacrificing output performance
  • Self-Diagnostic / Self-Testing
    Monthly and annual self-testing feature satisfies the periodic testing requirements in accordance with NFPA 101 while the on-board diagnostics provides system readiness with visual indicators
  • Listed for Field or Factory Installation
    UL Listed for both field or factory installation in United States and Canada
Features
  • UL 924 Listed, UL Listed and Classified to FTBV
  • Auto-Sense 15-55VDC output is UL 1310 Certified, Output Class 2 Compliant
  • White painted steel case
  • Includes single-piece TBTS test switch and charge indicator accessory kit
  • For use with switched or unswitched fixtures
  • 5-year warranty
  • Meets or exceeds all NEC, IBC, and Life Safety Code Emergency Lighting Requirements
  • Certified for CA Title 20
  • Suitable for use in Plenum, Damp Location, Recessed Type IC, and Enclosed and Gasketed Luminaires
  • RoHS Compliant
Read More
Read Less
Product Type Emergency LED Driver
Voltage Rating 120-277
Frequency 50/60HZ
Load Voltage Rating 15-55 VDC
Output Power 10 Watts
Max. Operating Temp. 55
Min. Operating Temp. 0
Battery Run Time 90 min
Battery Chemistry Type Lithium Iron Phosphate
Battery Recharge Time 24 hours
Battery Activation AC Activate
Life Safety Testing Self Diagnostics, Self Test
Regulatory Listing C-UL-US, cUL
Compliance Listing CA Title 20, ROHS
Series ILBLP

Read More Read Less

  • Suggested Replacement Products

Product Information

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Copy & Paste Specification Sample Specification for the ILBLP CP10 HE SD N (narrow profile) model 7/16/2020
    SPEC SHEET ILBLP CP10 HE SD N Specifications Specification Sheet for the ILBLP CP10 HE SD N Emergency LED Driver 6/3/2022 View

  • Guideline Specifications

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    3D Model ILBLP CP10 HE SD N 3D STEP file of the ILBLP CP10 HE SD N 3/15/2021
    Installation Instructions ILBLP CP HE SD N Manual Installation Manual for ILBLP CP HE SD N Mounting Style Models 5/9/2022 View
    Material Safety Data Sheet MSDS - 16V-9.6V Lithium-ion Material Safety Data Sheet for 16V and 9.6V Lithium-ion batteries 1/7/2022 View
    Technical Bulletins Comprensión de la Potencia Constante Maximiza la seguridad en las salidas de emergencia utilizando potencia constante real (CP) 4/12/2021 View
    Technical Bulletins LP Designs with Advanced Lithium Technology How engineering diligence and careful handling helps improve reliability of IOTA ILBLP drivers 6/25/2020 View
    Technical Bulletins The Need for Surge Protection IOTA emergency drivers feature enhanced designs for withstanding exposure to electrical surges. 4/5/2021 View
    Technical Bulletins Understanding Constant Power Understand the benefits of IOTA's patented Constant Power emergency LED driver design 2/11/2022 View
    Wiring Diagram (English) Typical Installation DWG Format - Typical Installation with TBTS Test Accessory 11/29/2021
    Wiring Diagram (English) Typical Installation PDF Format - Typical Installation with TBTS Test Accessory 11/29/2021 View
    Wiring Diagram (French) Installation Typique DWG Format - Installation typique avec accessoire de test TBTS 6/15/2020
    Wiring Diagram (French) Installation Typique PDF Format - Installation typique avec accessoire de test TBTS 6/15/2020 View

  • Revit Component Files (Non-Illuminated)

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Application Guide Contractor Insider - Emergency Lumen Output A quick guide on understanding how wattage correlates with emergency lumen output 9/15/2021 View
    Application Guide ILB CP Lumen Reference Chart Quickly identify IOTA LED Emergency Drivers that meet your desired lumen levels 1/25/2022 View
    Application Guide Tabla de Referencia de Lumen de ILB CP Identifique rápidamente los drivers LED de emergencia de IOTA que cumplen con los niveles de lumen deseados 4/12/2021 View
    Brochures IOTA HE Products for California Title 20 IOTA Emergency Lighting Solutions Certified in the Title 20 Appliance Efficiency Database 7/21/2022 View
    Brochures IOTA Tech Brief: What is AC Activate Understand the key benefits that AC Activate technology brings to the installation process. 2/11/2022 View
    Sell Sheet IOTA-Contractor-Insider_AC-Activate-Explained.pdf How IOTA AC Activate Saves Time and Money on the Jobsite 11/5/2021 View
