IOTA ILBLP CP15 HE SD
Video - IOTA ILBLP Series

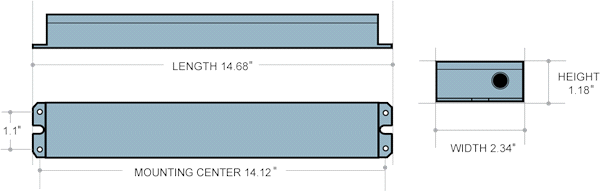

Dimensions - ILBLP CP15 HE SD - Length: 14.68 in., Mounting Center: 14.12 in., Width: 2.34 in., Height: 1.18 in.

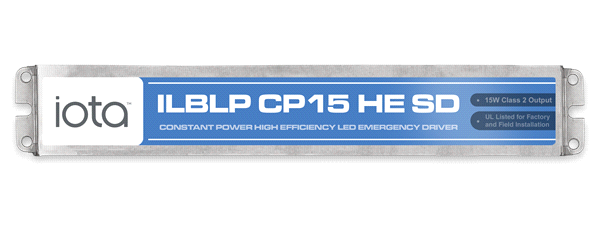

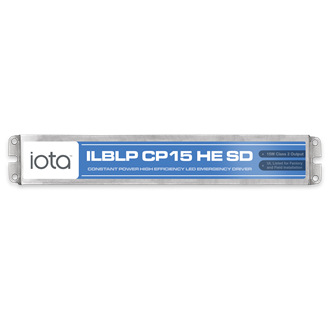

ILBLP CP15 HE SD Emergency LED Driver

15 Watt Constant Power Low Profile Emergency LED Driver with Self Diagnostics and High Efficiency Performance for CA Title 20

By Iota

    CA Title 20
  • Overview
  • Specifications
The ILBLP CP15 HE SD from IOTA is a UL Listed LED emergency driver that allows the same LED fixture to be used for both normal and emergency operation. In the event of a power failure, the ILBLP CP15 HE SD switches power from the normal AC Driver and operates the fixture for 90 minutes in the emergency mode from the unit’s battery supply. The unit contains a battery, charger, and converter circuit in a single enclosure and is available in flexed or non-flex mounting configurations for individual fixture requirements. Features lithium battery technology for significantly decreased form factor and includes automatic monthly and annual self-testing features as standard.
LED Operation
  • 15 Watts Constant Power
  • 20-55 VDC Nominal Output
Product Advantages
  • Constant Power Performance
    Constant wattage delivery maintaines illumination for the full emergency runtime with no degradation
  • Minimum Mounting Footprint
    Lithium battery and narrow enclosure design significantly decreases space requirements without sacrificing output performance
  • Self-Diagnostic / Self-Testing
    Monthly and annual self-testing feature satisfies the periodic testing requirements in accordance with NFPA 101 while the on-board diagnostics provides system readiness with visual indicators
  • Listed for Field or Factory Installation
    UL Listed for both field or factory installation in United States and Canada
Features
  • UL 924 Listed, UL Listed and Classified to FTBV
  • Auto-Sense 20-55VDC output is UL 1310 Certified, Output Class 2 Compliant
  • Galvanized steel case
  • Includes single-piece TBTS test switch and charge indicator accessory kit
  • For use with switched or unswitched fixtures
  • 5-year warranty
  • Meets or exceeds all NEC, IBC, and Life Safety Code Emergency Lighting Requirements
  • Certified for CA Title 20
  • Suitable for use in Plenum, Damp Location, and Recessed Type IC Luminaires
  • RoHS Compliant
Read More
Read Less
Product Type Emergency LED Driver
Voltage Rating 120-277
Frequency 50/60HZ
Load Voltage Rating 20-55 VDC
Output Power 15 Watts
Max. Operating Temp. 55
Min. Operating Temp. 0
Battery Run Time 90 min
Battery Chemistry Type Lithium Iron Phosphate
Battery Recharge Time 24 hours
Battery Activation AC Activate
Life Safety Testing Self Diagnostics, Self Test
Regulatory Listing C-UL-US, cUL
Compliance Listing CA Title 20, ROHS
Series ILBLP
