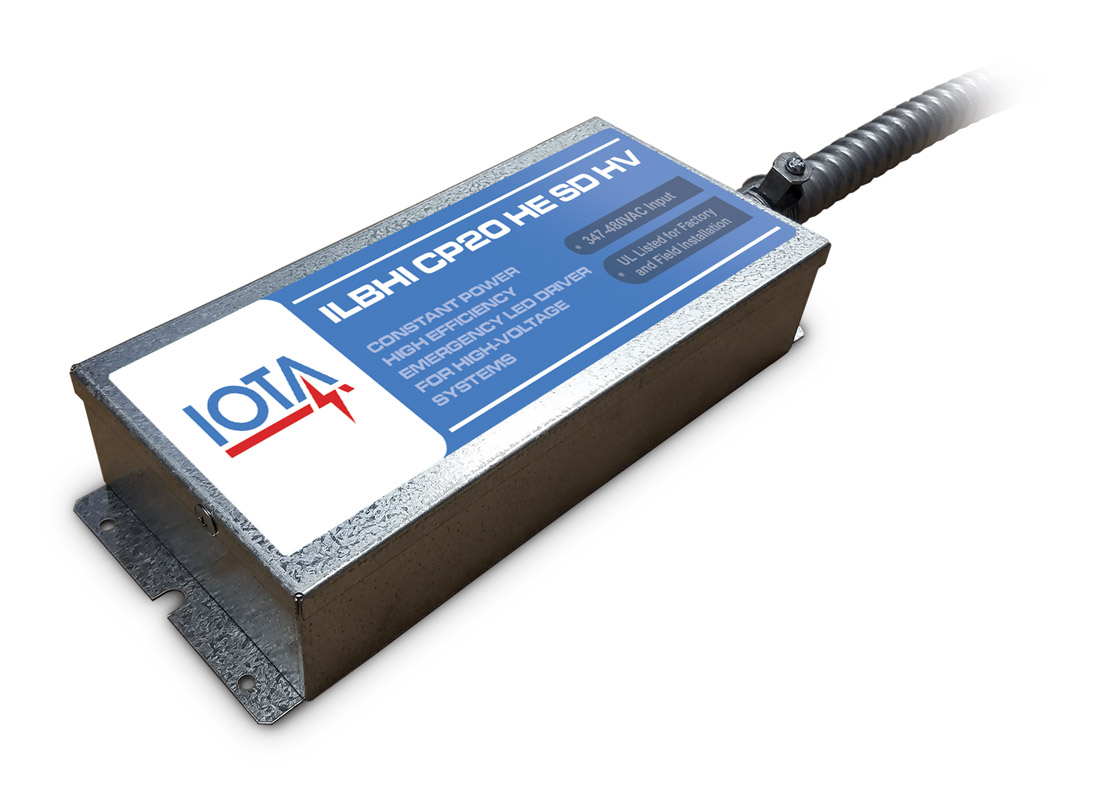

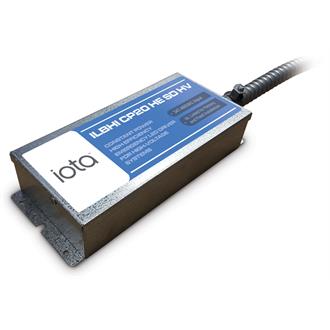

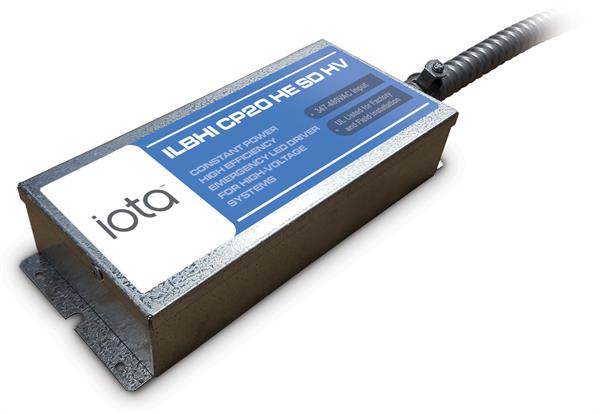

IOTA ILBHI CP20 HE SD HV

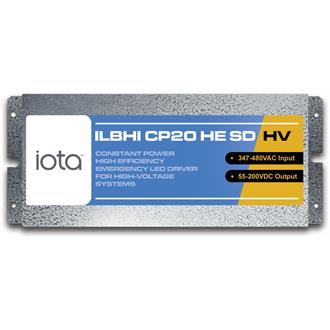

IOTA ILBHI CP20 HE SD HV Top View

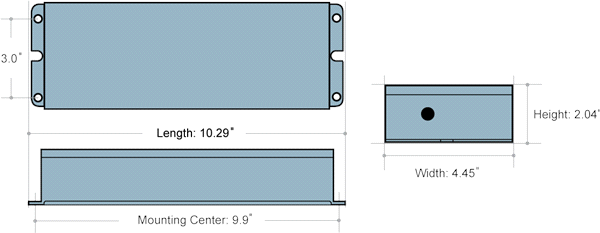

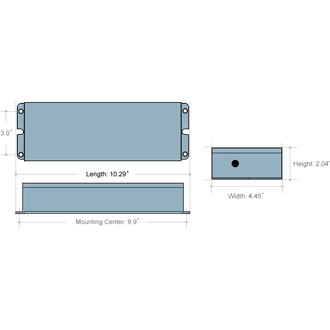

Dimensions - ILBHI CP HE SD HV - Length: 10.29 in., Width: 4.45 in., Height: 2.04 in., Mounting Center: 9.9 in. by 3.0 in.

ILBHI CP20 HE SD HV Emergency LED Driver

20 Watt Emergency LED Driver for 347-480 VAC Luminaires with 55-200 VDC Non-Class 2 LED Loads

By IOTA

    CA Title 20
  • Overview
  • Specifications
The IOTA ILBHI CP20 HE SD HV is a UL Listed emergency LED driver for field and factory installation that allows a 347-480VAC fixture with 55-200VDC Non-Class 2 LED lighting loads to be used for both normal and emergency operation. In the event of a power failure, the ILBHI CP20 HE SD HV switches from the existing AC driver to operate the fixture from the battery supply for 90 minutes. The unit contains a battery, charger, and converter circuit in a single enclosure with the option of either single or dual flexible conduit for wiring to the fixture and test accessories. Features lithium battery technology for significantly decreased form factor and includes automatic monthly and annual self-testing features as standard. Self-diagnostic status is communicated via the illuminated single-piece test accessory, which can be mounted up to 25 ft. from the unit.
LED Operation
  • 20 Watts Constant Power
  • 55-200 VDC Nominal Output
Product Advantages
  • 347 to 480V Input
    Accommodates fixtures using a high-voltage AC input from 347-480VAC, 50/60 Hz
  • Auto-Sensing Non-Class 2 Output
    Auto-adjusting 55-200 VDC output range accommodates a wide range of Non-Class 2 forward voltage designs

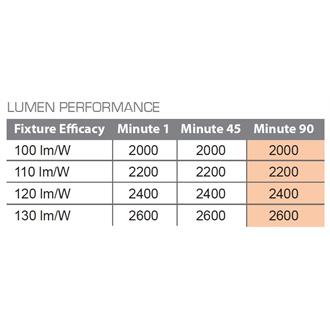

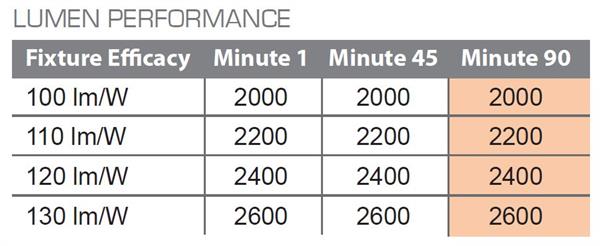

  • Constant Power Performance
    Constant wattage delivery maintains illumination level for the full emergency runtime with no degradation
  • Self-Diagnostic / Self-Testing
    Monthly and annual self-test feature satisfies the periodic testing requirements in accordance with NFPA 101 while the on-board diagnostics provides system readiness with visual indicators.
  • High Output for Increased Illumination
    20W Emergency output is ideal for elevated mounting heights and high-bay fixtures
Read More
Read Less
Product Type Emergency LED Driver
Voltage Rating 347-480
Frequency 50/60HZ
Load Voltage Rating 55-200 VDC
Output Power 20 Watts
Max. Operating Temp. 55
Min. Operating Temp. 0
Battery Run Time 90 min
Battery Chemistry Type Lithium Iron Phosphate
Battery Recharge Time 24 hours
Battery Activation AC Activate
Life Safety Testing Self Diagnostics, Self Test
Regulatory Listing C-UL-US
Compliance Listing CA Title 20, ROHS
Series ILBHI

Read More Read Less
