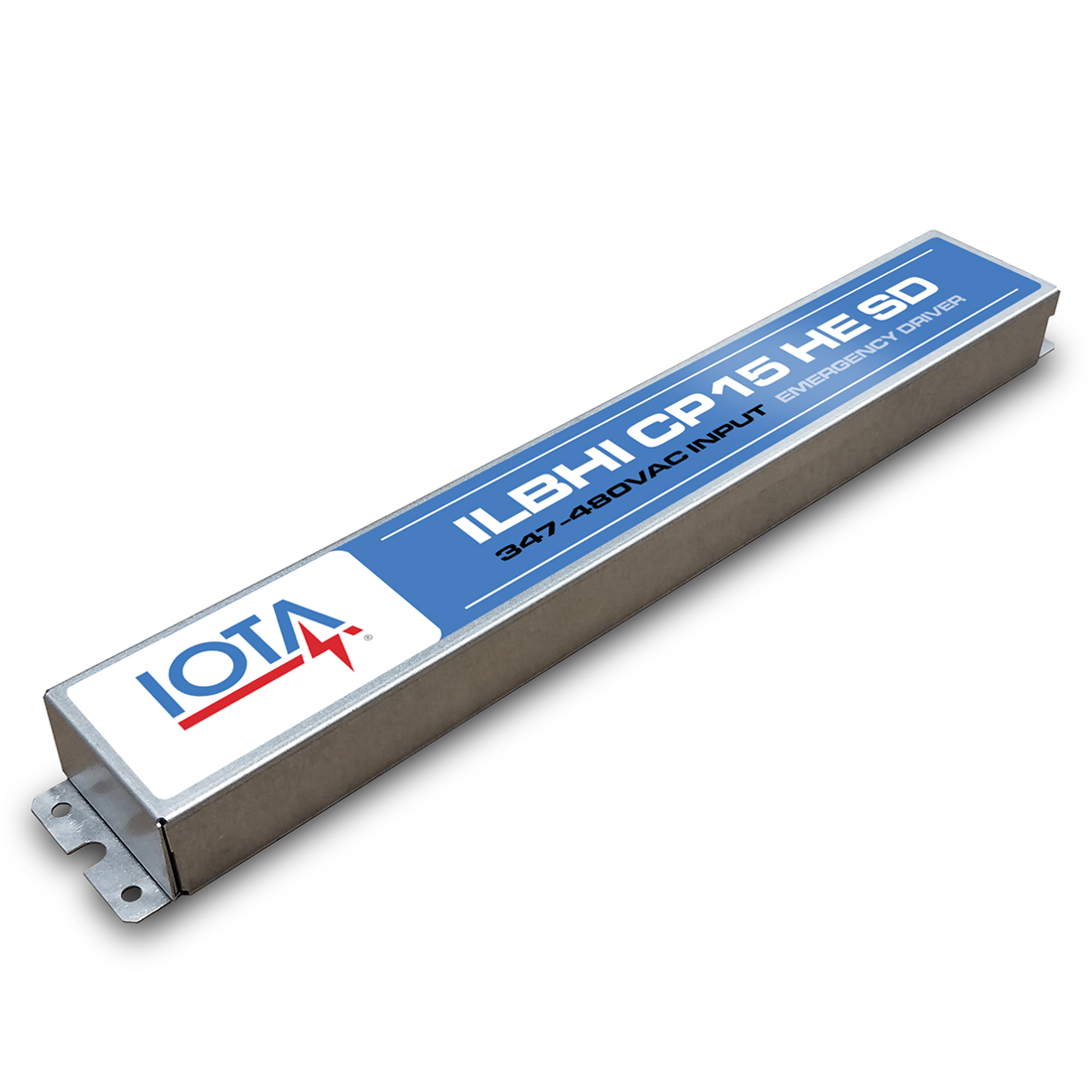

ILBHI CP15 HE SD Emergency LED Driver

15 Watt Emergency LED Driver for 347-480 VAC Luminaires with Class 2 LED Loads, CA title 20

By IOTA

    CA Title 20
  • Overview
  • Specifications
The IOTA ILBHI CP15 HE SD is a UL Listed emergency LED driver for field and factory installation that allows a 347-480VAC fixture with 20-55VDC Class 2 LED lighting loads to be used for both normal and emergency operation. In the event of a power failure, the ILBHI CP15 HE SD switches from the existing AC driver to operate the fixture from the battery supply for 90 minutes. The unit contains a battery, charger, and converter circuit in a single enclosure with the options for integral no flexible conduit) or single and dual flexible conduit for wiring to the fixture and test accessories. The patented Constant Power design of the unit maintains the rated output wattage to the LED array even as the battery voltage diminishes, resulting in a constant illumination level for the entire emergency runtime. Features lithium battery technology for significantly decreased form factor and includes automatic monthly and annual self-testing features as standard. Self-diagnostic status is communicated via the illuminated single-piece test accessory, which can be mounted up to 25 ft. from the unit.
LED Operation
  • 15 watts Constant Power
  • 20-55 VDC Nominal Output
Product Advantages
  • 347 to 480V Input Accommodates fixtures using a high-voltage AC input from 347-480VAC, 50/60 Hz
  • Auto-Sensing Class 2 Output Auto-adjusting 20-55 VDC output range accommodates a wide range of Class 2 forward voltage designs
  • Constant Power Performance
    Constant wattage delivery maintains illumination level for the full emergency runtime with no degradation
  • Self-Diagnostic / Self-Testing
    Monthly and annual self-testing feature satisfies the periodic testing requirements in accordance with NFPA 101 while the on-board diagnostics provides system readiness with visual indicators.
Features
  • UL 924 Listed for U.S. and Canada
  • Integral and flexible conduit models for wiring to the fixture
  • AC-Activate circuity simplifies wiring by eliminating the need for manual battery connection during installation
  • Maintenance-free, high-temp recyclable LiFePO4 for significantly reduced space requirements
  • Durable, galvanized steel enclosure
  • Single-piece test switch and charge indicator can be remote-mounted up to 25 ft.
  • For use with switched or unswitched fixtures
  • 5-Year Warranty
  • Meets or exceeds all NEC, IBC, and Life Safety Code Emergency Lighting Requirements
  • Certified to CA Title 20 and registered in the Modernized Appliance Efficiency Database (MAEDBS)
  • Suitable for use in Plenum, Damp Location, Recessed Type IC, and Enclosed and Gasketed Luminaires
  • RoHS Compliant
Read More
Read Less
Product Type Emergency LED Driver
Voltage Rating 347-480
Frequency 50/60HZ
Load Voltage Rating 20-55 VDC
Output Power 15 Watts
Max. Operating Temp. 55
Min. Operating Temp. 0
Battery Run Time 90 min
Battery Chemistry Type Lithium Iron Phosphate
Battery Recharge Time 24 hours
Battery Activation AC Activate
Life Safety Testing Self Diagnostics, Self Test
Regulatory Listing C-UL-US
Compliance Listing CA Title 20, ROHS
Series ILBHI

Read More Read Less

  • Suggested Replacement Products

Product Information

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Copy and Paste Specification Easily specify the ILBHI CP15 HE SD using this copy-and-paste document 6/2/2021
    SPEC SHEET ILBHI CP15 HE SD Specification Sheet Spec Sheet for ILBHI CP15 HE SD 347-480VAC Emergency Driver 5/17/2023 View

  • Guideline Specifications

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions ILBHI CP HE SD "A" Installation Manual Installation Manual for ILBHI CP HE SD "A" (dual flex) emergency driver 6/10/2022 View
    Installation Instructions ILBHI CP HE SD "B" Installation Manual Installation Manual for ILBHI CP HE SD "B" (no flex) emergency driver 6/10/2022 View
    Installation Instructions ILBHI CP HE SD "S" Installation Manual Installation manual for ILBHI CP HE SD "S" (single flex) emergency driver 6/10/2022 View
    Material Safety Data Sheet MSDS - 16V LiFePO Batteries Material Data Safety Sheet for 16V LiFePO Batteries 6/10/2021 View
    Technical Bulletins Comprensión de la Potencia Constante Maximiza la seguridad en las salidas de emergencia utilizando potencia constante real (CP) 4/12/2021 View
    Technical Bulletins TC Point Reference Identifies unit's TC point for thermal testing 6/2/2021 View
    Technical Bulletins The Need for Surge Protection IOTA emergency drivers feature enhanced designs for withstanding exposure to electrical surges. 4/5/2021 View
    Technical Bulletins Understanding Constant Power Understand the benefits of IOTA's patented Constant Power emergency LED driver design 2/11/2022 View
    Wiring Diagram (English) Typical Installation PDF Format - Typical installation of ILBHI emergency drivers 6/3/2021 View
    Wiring Diagram (English) Typical Installation DWG Format - Typical installation of ILBHI emergency drivers 6/3/2021
    Wiring Diagram (French) Installation Typique PDF Format - Installation typique pour les modèles ILBHI 6/3/2021 View
    Wiring Diagram (French) Installation Typique DWG Format - Installation typique pour les modèles ILBHI 6/10/2022

  • Revit Component Files (Non-Illuminated)

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Application Guide Contractor Insider - Emergency Lumen Output A quick guide on understanding how wattage correlates with emergency lumen output 9/15/2021 View
    Application Guide Contractor Insider - Remote Mounting Guidelines A Quick Reference for knowing remote mounting capabilities of emergency lighting solutions. 10/21/2021 View
    Application Guide Emergency Lighting Solutions for 347-480 VAC Know all of your options for providing emergency lighting to applications using 347-480VAC power. 1/13/2022 View
    Application Guide ILB CP Lumen Reference Chart Quickly identify IOTA LED Emergency Drivers that meet your desired lumen levels 1/25/2022 View
    Application Guide Tabla de Referencia de Lumen de ILB CP Identifique rápidamente los drivers LED de emergencia de IOTA que cumplen con los niveles de lumen deseados 4/12/2021 View
    Brochures IOTA HE Products for California Title 20 IOTA Emergency Lighting Solutions Certified in the Title 20 Appliance Efficiency Database 7/21/2022 View
    Brochures IOTA ILBHI Flipbook An at-a-glance overview of the IOTA ILBHI Series products and application 11/8/2021 View
    Brochures IOTA Tech Brief: What is AC Activate Understand the key benefits that AC Activate technology brings to the installation process. 2/11/2022 View
    Sell Sheet IOTA-Contractor-Insider_AC-Activate-Explained.pdf How IOTA AC Activate Saves Time and Money on the Jobsite 11/5/2021 View
    Sell Sheet Product Spotlight - ILBHI Series Quick reference that highlights the benefits and features of the ILBHI Series 11/4/2021 View
    Sell Sheet Sell Sheet - ILBHI Series Quick overview of IOTA ILBHI Series products and benefits. 6/17/2021 View
