Contractor Select (1-2 Days)

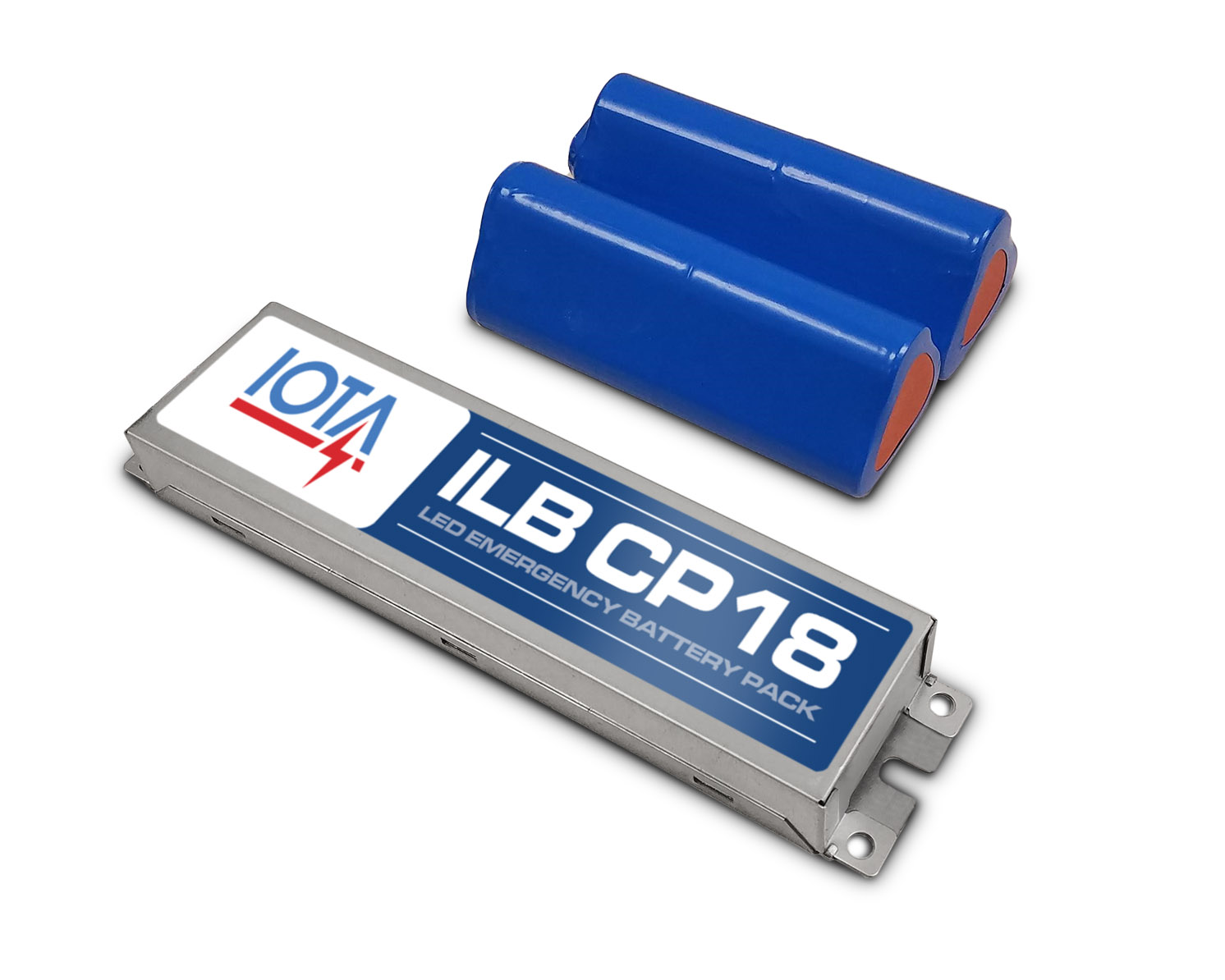

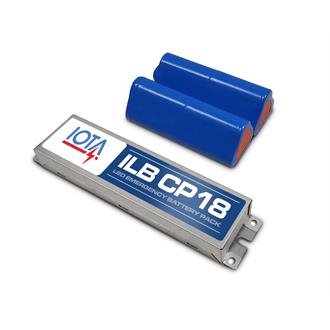

ILB CP18 HE CW LP64 Emergency LED Driver

18 Watt Low Profile Constant Power Emergency LED Driver for Cold Weather and IP67 Applications with Lithium Battery Pack

By IOTA

    CA Title 20
  • Overview
  • Specifications
Read More
Read Less
Product Type Emergency LED Driver
Voltage Rating 120-277
Frequency 50/60HZ
Load Voltage Rating 20-58 VDC
Output Power 18 Watts
Max. Operating Temp. 60
Min. Operating Temp. -20
Battery Run Time 90 min
Battery Chemistry Type Lithium Iron Phosphate
Battery Recharge Time 24 hours
Battery Activation Unit Connector
Life Safety Testing Manual Testing
Regulatory Listing C-UR, cUL, NFPA 101
Compliance Listing CA Title 20, ROHS
Environmental Listing Damp Location, IP67
Series ILB

Read More Read Less

  • Suggested Replacement Products

Product Information

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet ILB CP18 HE CW LP64 Specifications Specification sheet for the ILB CP18 HE CW LP64 3/9/2021 View
    View Product

    Need a Stocked Product?

    View Now

  • Guideline Specifications

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    3D Model STEP File for ILBLP CW electronic enclosure 3D STEP File for ILBLP CW Enclosure 3/22/2023
    Installation Instructions Manual - ILB CP18 HE CW LP64 Installation manual for the ILBLP CP18 HE CW LP64 3/9/2021 View
    Material Safety Data Sheet MSDS_lithiumlp64.pdf Safety Data Sheet for lithium battery component 5/13/2021 View
    Technical Bulletins Comprensión de la Potencia Constante Maximiza la seguridad en las salidas de emergencia utilizando potencia constante real (CP) 4/12/2021 View
    Technical Bulletins Understanding Constant Power Understand the benefits of IOTA's patented Constant Power emergency LED driver design 2/11/2022 View
    Wiring Diagram Typical Installation - LP64 Models DWG Format - Typical installation of the ILBLP CP18 HE CW LP64 3/9/2021
    Wiring Diagram Typical Installation - LP64 Models PDF Format - Typical installation of the ILBLP CP18 HE CW LP64 3/9/2021 View

  • Revit Component Files (Non-Illuminated)

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs)

    Document Type Document Title Description Updated View
    Brochures IOTA HE Products for California Title 20 IOTA Emergency Lighting Solutions Certified in the Title 20 Appliance Efficiency Database 7/21/2022 View
    Sell Sheet Product Spotlight_IOTA ILB CP18 LP64.pdf A quick resource for understanding the benefits and features of the ILB CP18 HE CW LP64. 3/10/2021 View
