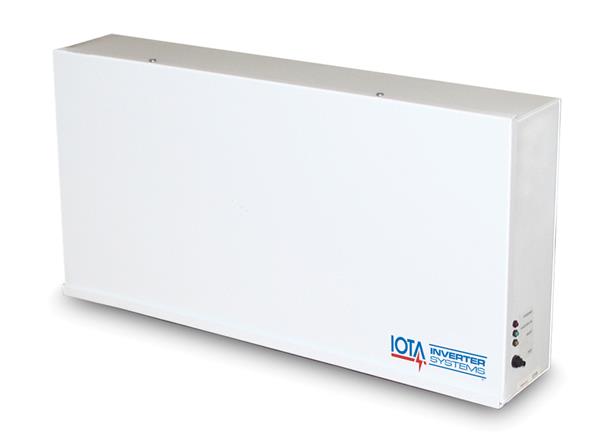

Product Image
IOTA IIS 125 SM
Dimensions - IIS 125 SM - Length: 23.15in, Width: 4.5in, Height: 11.71in

IIS 125 HE SM Emergency Inverter

125W Surface Mount Inverter for CA Title 20 Applications

By IOTA

    CA Title 20
  • Overview
  • Specifications
The IOTA IIS 125 HE SM Emergency Inverter supplies up to 125W of emergency power to LED, incandescent, and fluorescent lighting loads in the event of a loss of normal power. The IIS 125 HE SM is designed for high-efficiency performance and is certified in the MAEDBS (Modernized Appliance Efficiency Database System) for helping meet CA Title 20 applications. NEMA 410 rating accommodates LED inrush potential to allow the inverter to operate loads to its fully-rated capacity (125W) without de-rating! Includes dimming relay leads to accept 0-10V dimming signals on the emergency circuit. In the event of a power loss, the IIS 125 HE SM will override the normal dimmed setting to operate the connected load at full output.


  • Delivers 90-minute emergency power to switched or unswitched circuits to operate LED, incandescent, and fluorescent fixtures.
  • Surface-mount design
  • Sealed maintenance-free VRLA batteries
  • Includes momentary contact test switch and status indicators
  • Line Voltage allows for remote operation of fixtures up to 1000 feet
Read More
Read Less
Product Type Emergency Inverter
Voltage Rating 120, 277
Frequency 60HZ
Load Voltage Rating 120VAC, 277VAC
Output Power 125 Watts
Max. Operating Temp. 30
Min. Operating Temp. 20
Battery Run Time 90 min
Battery Chemistry Type Lead Acid
Life Safety Testing Manual Testing
Regulatory Listing C-UL-US, UL, UL924
Compliance Listing CA Title 20, ROHS
Series IIS

Read More Read Less

  • Suggested Replacement Products

Product Information

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET IIS 125 HE SM Spec Sheet Specification Sheet for IIS 125 HE SM Emergency Inverter 6/1/2021 View

  • Guideline Specifications

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions Installation Manual for IIS 125 HE Inverters Installation Manual for IIS 125 HE Emergency Inverters (SM and CG models) 6/1/2021 View
    Material Safety Data Sheet MSDS-HY_Sealed-Lead-Acid-Battery.pdf Safety Data Sheet for Sealed Lead Acid Battery component 5/13/2021 View
    Technical Bulletins IOTA Contractor Insider: Inverters and Inrush.pdf Select the optimal emergency inverter by understanding the causes and impact of inrush on a circuit. 4/12/2021 View
    Technical Bulletins IOTA Contractor Insider_Extending-Runtimes.pdf IOTA offers different ways to achieve extended runtimes for 120-minute emergency applications 7/23/2021 View
    Wiring Diagram Wiring Diagram - IIS Mini Inverter DWG Format - Typical Wiring for an IIS Mini Inverter with 0-10V Dimming Relays 5/12/2022
    Wiring Diagram Wiring Diagram - IIS Mini Inverter PDF Format - Typical Wiring for an IIS Mini Inverter with 0-10V Dimming Relays 5/12/2022 View

  • Revit Component Files (Non-Illuminated)

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Application Guide 0-10V Dimming with IIS Inverters This Tech Brief details the use of the DR dimming relay capability on select IOTA IIS inverters. 2/17/2022 View
    Application Guide Contractor Insider - Remote Mounting Guidelines A Quick Reference for knowing remote mounting capabilities of emergency lighting solutions. 10/21/2021 View
    Application Guide IIS Mini and Micro Inverter Remote Mounting Guidelines for remote mounting IOTA IIS mini and micro-inverter systems 1/4/2023 View
    Application Guide Tech App_Mini-Inverters and Outdoor Egress.pdf Understand How IIS Mini Inverters Solve Unique Outdoor Emergency Lighting Challenges 7/23/2021 View
    Brochures IOTA HE Products for California Title 20 IOTA Emergency Lighting Solutions Certified in the Title 20 Appliance Efficiency Database 7/21/2022 View
    Sell Sheet Sell Sheet - IOTA IIS Mini-Inverters Sell Sheet for IOTA IIS Emergency Mini-Inverters 5/13/2022 View
