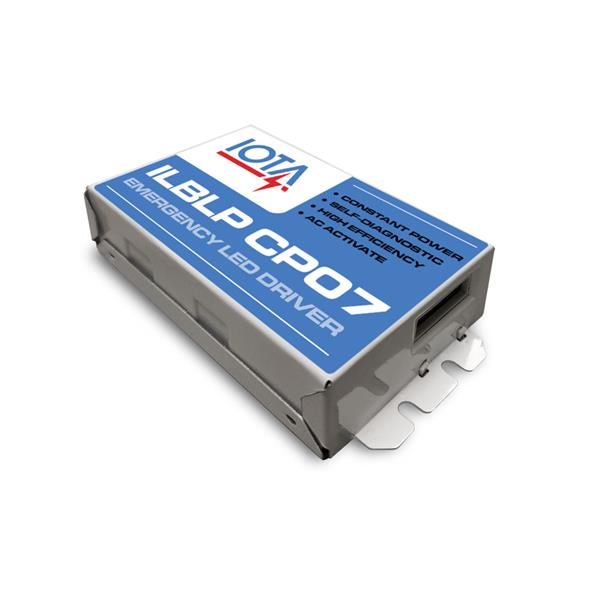

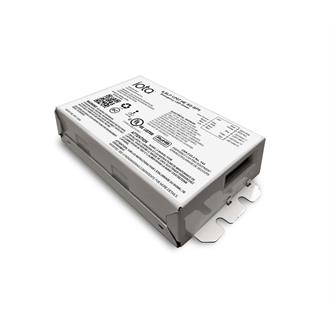

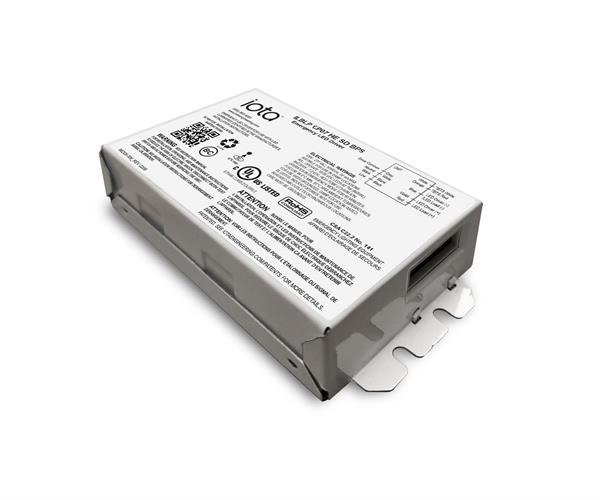

ILBLP CP07 HE SD Emergency LED Driver

7W Constant Power Small Form Factor Emergency Driver with Self-Diagnostics and High-Efficiency performance.
    CA Title 20
  • Overview
  • Specifications
The ILBLP CP07 HE SD from IOTA is a UL Listed LED emergency driver that allows the same LED fixture to be used for both normal and emergency operation. In the event of a power failure, the ILBLP CP07 HE SD switches power from the normal AC Driver and operates the fixture for 90 minutes in the emergency mode from the unit’s battery supply. The unit contains a battery, charger, and converter circuit in a compact form factor for integral installation in smaller fixtures. Features lithium battery technology for significantly decreased form factor and includes automatic monthly and annual self-testing features as standard.
The ILBLP CP07 has been selected as a 2024 BrightStar Awards Honoree by LEDs Magazine!

LED Operation
  • 7 Watts Constant Power
  • 10-55 VDC Nominal Output
Product Advantages
  • Constant Power Performance
    Constant wattage delivery maintains illumination for the full emergency runtime with no degradation
  • Minimum Mounting Footprint
    Compact lithium battery design decreases space requirements without sacrificing output performance
  • Self-Diagnostic / Self-Testing
    Monthly and annual self-testing feature satisfies the periodic testing requirements in accordance with NFPA 101 while the on-board diagnostics provides system readiness with visual indicators
  • Listed for Field or Factory Installation
    UL Listed for both field or factory installation in United States and Canada
Features
  • UL 924 Listed, UL Listed and Classified to FTBV
  • Auto-Sense 10-55VDC output is UL 1310 Certified, Output Class 2 Compliant
  • Painted steel case

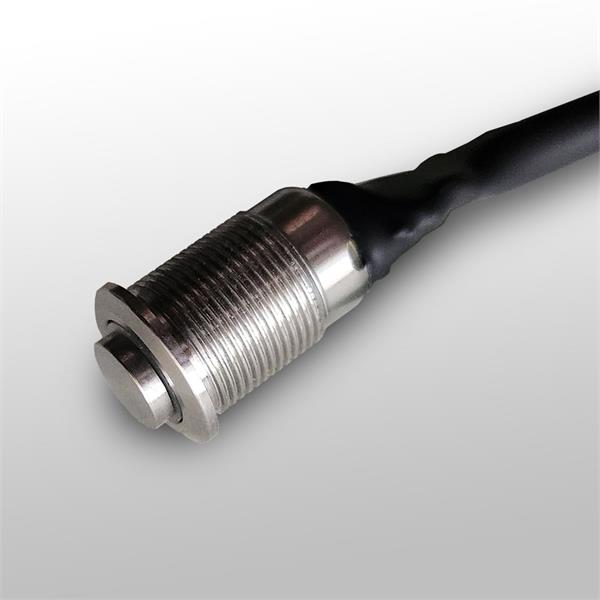

  • Includes stainless steel single-piece TBTS test switch and charge indicator accessory kit
  • AC Activate charging circuitry simplifies installation by eliminating the need for manual battery connection
  • For use with switched or unswitched fixtures
  • 5-year warranty
  • Meets or exceeds all NEC, IBC, and Life Safety Code Emergency Lighting Requirements
  • Certified for CA Title 20
  • Suitable for use in Plenum, Damp Location, Recessed Type IC, and Enclosed and Gasketed Luminaires
  • RoHS Compliant
Read More
Read Less
Product Type Emergency LED Driver
Voltage Rating 120-277
Frequency 50/60HZ
Output Power 7 Watts
Max. Operating Temp. 55
Min. Operating Temp. 0
Battery Run Time 90 min
Battery Chemistry Type Lithium Iron Phosphate
Battery Recharge Time 24 hours
Battery Activation AC Activate
Life Safety Testing Self Diagnostics, Self Test
Regulatory Listing C-UL-US, cUL
Compliance Listing CA Title 20, ROHS
Series ILBLP

Read More Read Less

  • Suggested Replacement Products

Product Information

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet ILBLP CP07 Emergency Driver Spec Sheet Product specifications for the ILBLP CP07 compact constant power emergency driver 3/28/2024 View
    View Product

    Need a Stocked Product?

    View Now

  • Guideline Specifications

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    3D Model STEP File for ILBLP CP07 Compact EM Driver 3D STEP File for IOTA ILBLP CP07 HE SD Compact Emergency Driver 8/15/2023
    Material Safety Data Sheet MSDS Sheet Material Safety Data Sheet for ILBLP CP07 Battery 8/14/2023 View
    Technical Bulletins TC Reference for ILBLP CP07 BP and BPS TC Reference sheet for ILBLP CP07 Emergency Driver 8/14/2023 View
    Technical Bulletins Tech Brief: Disabling ILBLP CP07 Self-Diagnostics Instructions for disabling / enabling automatic self-testing feature of the ILBLP CP07. 12/6/2023 View
    User Manual IOTA ILBLP CP0 BP and BPS Installation Manual Installation and user instructions for ILBLP CP07 BP and BPS mounting configurations 8/14/2023 View

  • Revit Component Files (Non-Illuminated)

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs)

    Document Type Document Title Description Updated View
    Sell Sheet Sell Sheet - IOTA ILBLP CP07 Emergency Driver Overview of the IOTA ILBLP CP07 Compact Emergency Driver Features and Benefits 12/6/2023 View
    Sell Sheet Sell Sheet_IOTA AC Activate.pdf (Archived) AC Activate is a smarter, simpler way to install emergency drivers. (Archived) 7/21/2023 View
