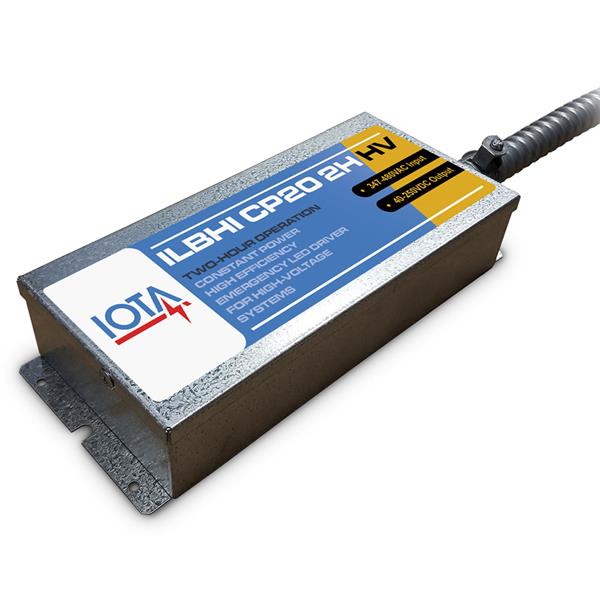

ILBHI CP20 2H HE SD HV Emergency Driver

Two-Hour 20W Constant Power emergency driver for 347-480VAC input to 40-250DVC output systems

By IOTA

    CA Title 20
  • Overview
  • Specifications
The IOTA ILBHI CP20 2H HE SD HV is a UL Listed emergency LED driver for field and factory installation that allows a 347-480VAC fixture with 40-250VDC Non-Class 2 LED lighting loads to be used for both normal and emergency operation. In the event of a power failure, the ILBHI CP20 2H HE SD HV switches from the existing AC driver to operate the fixture from the battery supply for 90 minutes. The unit contains a battery, charger, and converter circuit in a single enclosure with single conduit for wiring to the fixture and test accessories. Features lithium battery technology for significantly decreased size and weight and includes automatic monthly and annual self-testing features as standard. Self-diagnostic status is communicated via the illuminated single-piece test accessory, which can be mounted up to 25 ft. from the unit.
LED Operation
  • 20 Watts Constant Power
  • 40-250 VDC Nominal Output
Product Advantages
  • Two-Hour Operation for FEMA and Canada requirements
  • 347 to 480V Input
    Accommodates fixtures using a high-voltage AC input from 347-480VAC, 50/60 Hz
  • Auto-Sensing Non-Class 2 Output
    Auto-adjusting 40-250 VDC output range accommodates a wide range of Non-Class 2 forward voltage designs

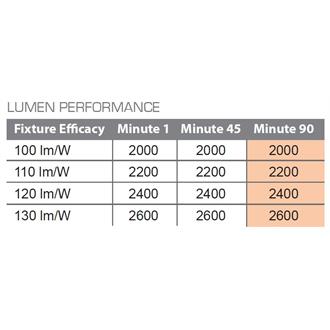

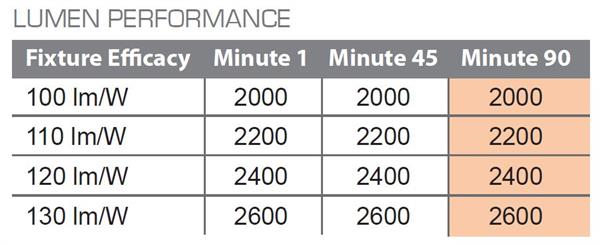

  • Constant Power Performance
    Constant wattage delivery maintains illumination level for the full emergency runtime with no degradation
  • Self-Diagnostic / Self-Testing
    Monthly and annual self-test feature satisfies the periodic testing requirements in accordance with NFPA 101 while the on-board diagnostics provides system readiness with visual indicators.
  • High Output for Increased Illumination
    20W Emergency output is ideal for elevated mounting heights and high-bay fixtures
Read More
Read Less
Product Type Emergency LED Driver
Voltage Rating 347-480
Frequency 50/60HZ
Load Voltage Rating 55-200 VDC
Output Power 20 Watts
Max. Operating Temp. 55
Min. Operating Temp. 0
Battery Run Time 120 min
Battery Chemistry Type Lithium Iron Phosphate
Battery Recharge Time 24 hours
Battery Activation AC Activate
Life Safety Testing Self Diagnostics, Self Test
Regulatory Listing C-UL-US
Compliance Listing CA Title 20, ROHS
Series ILBHI

Read More Read Less

  • Suggested Replacement Products

Product Information

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET ILBHI-CP20-2H-HE-SD-HV Spec Sheet.pdf Spec sheet for ILBHI CP20 2H two-hour 347-480VAC emergency driver for non-Class 2 LEDs 7/11/2023 View

  • Guideline Specifications

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions Manual - S (Single Flex) Configuration Installation manual for ILBHI CP 2H HE SD HV S (Single Flex) models 6/28/2023 View
    Material Safety Data Sheet MSDS sheet for 30W LiFePO Emergency Driver Safety Data Sheet for emergency driver battery component 5/12/2021 View
    Technical Bulletins ILBHI CP30 HE SD HV_TC Reference Point Thermal Testing Reference Document 10/6/2020 View
    Technical Bulletins Self Diagnostic Status Codes Understanding and Troubleshooting IOTA Self Diagnostic Status Codes 5/27/2022 View
    Wiring Diagram (English) Wiring Diagram DWG Format - Wiring diagram of ILBHI HV models with the TBTS test accessory 5/6/2022
    Wiring Diagram (English) Wiring Diagram PDF Format - Wiring diagram of ILBHI HV models with the TBTS test accessory 5/6/2022 View
    Wiring Diagram (French) Schéma de Câblage Format DWG - Schéma de câblage des modèles ILBHI HV avec l'accessoire de test TBTS 5/6/2022
    Wiring Diagram (French) Schéma de Câblage Format PDF - Schéma de câblage des modèles ILBHI HV avec l'accessoire de test TBTS 5/6/2022 View

  • Revit Component Files (Non-Illuminated)

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures IOTA HE Products for California Title 20 IOTA Emergency Lighting Solutions Certified in the Title 20 Appliance Efficiency Database 7/21/2022 View
    Brochures IOTA ILBHI Flipbook An at-a-glance overview of the IOTA ILBHI Series products and application 11/8/2021 View
    Brochures IOTA Tech Brief: What is AC Activate Understand the key benefits that AC Activate technology brings to the installation process. 2/11/2022 View
    Sell Sheet IOTA 2-Hour Emergency Drivers Sell Sheet Introduction to the applications and advantages of IOTA 2-Hour Constant Power Emergency Drivers 8/15/2023 View
