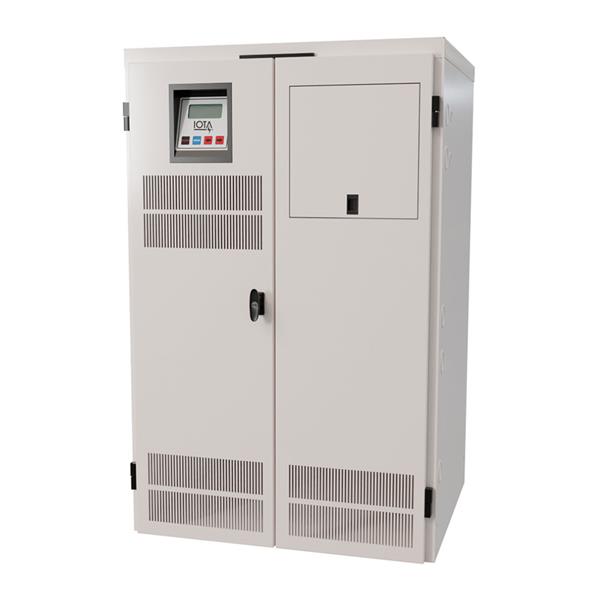

IISCN Single Phase Inverter Inverters

IISCN Single Phase Inverters provide emergency power for designated loads up to 16.7kVA

By IOTA

  • Overview
  • Specifications
The IOTA 1.5kVA to 16.kVA IISCN Central Inverters are UL Listed single-phase sine wave output inverters for Canada designed to supply emergency power to the connected load. IISCN Single-Phase Central Inverters will operate the emergency load at full brightness with 2 millisecond transfer time.
Emergency Operation
  • 1.5kVA (1500W) to 16.7kVA (16700W)
  • Operates LED, Fluorescent, Incandescent fixtures
  • 120VAC to 347VAC Input/Output Voltage options
Product Advantages
  • Single-phase emergency system with exceptional 98% power efficiency
  • Fast Transfer Time (2ms)
  • Provides full light output in the emergency mode
  • 30, 60, and 120 minute runtime models
  • Conducts required monthly and annual testing
Features
  • UL 924 Listed
  • PWM/IGBT inverter design for optimal switching speed
  • Micro-processor controlled, temperature-compensating charger
  • Sealed long-life maintenance-free VRLA batteries
  • Low Battery Voltage Disconnect protects the batteries against deep discharge
  • Includes Input Circuit Breaker and Battery Fuse Protection
  • User Programmable / Password Protected Interface
  • High-Contrast VFD display screen
  • Includes RS232 Serial Communications port
  • Durable steel compact cabinet design with white finish
  • Forced air cooling only while in the emergency mode with no filter requirement
  • Meets or exceeds all NEC and Life Safety Code Emergency Lighting requirements
  • Covered by IOTA's standard 1-year warranty
  • Factory Startup and Training available
Read More
Read Less
Product Type Emergency Inverter
Voltage Rating 120, 208, 240, 277, 347
Frequency 60HZ
Load Voltage Rating 120VAC, 240VAC, 277VAC, 347VAC
Output Power 10000 VA, 12500 VA, 1500 VA, 16700 VA, 2250 VA, 3000 VA, 3750 VA, 5000 VA, 6000 VA, 8000 VA
Max. Operating Temp. 30
Min. Operating Temp. 20
Battery Run Time 120 min, 30 min, 60 min
Battery Chemistry Type Lead Acid
Life Safety Testing Self Diagnostics, Self Test
Regulatory Listing CSA, cUL
Series IISCN

Read More Read Less

  • Suggested Replacement Products

Product Information

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Spec Sheet for IISCN 1500 to 16700 Inverters Product specifications for IISCN 1500 thru IISCN 16700 single-phase central inverters 8/3/2023 View

  • Guideline Specifications

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions French (Canada)_IOTA Manual Installation IISCN Single Phase.pdf (French) Installation Manual for IISCN Single Phase Inverters 9/1/2023 View
    Installation Instructions French (Canada)_IOTA Manual User IISCN Single Phase.pdf (French) User Manual for IISCN Single Phase Inverter 9/1/2023 View
    Installation Instructions Installation Manual for IISCN Single Phase Installation instructions for IOTA IISCN single phase inverters models 1500 to 16700 8/3/2023
    Installation Instructions USer Manual for IISCN Single Phase User Manual for IOTA IISCN Single Phase Inverters models IISCN 1500 thru IISCN 16700 8/3/2023
    Technical Bulletins IISCN Large Single Phase Weights and Dimensions Weight and dimensional reference for IISCN 1500 t0 16700 inverter models. 8/4/2023 View
    Technical Bulletins System Electrolyte & kWh Levels - Canada.pdf Electrolyte & kWh levels for IOTA Canadian Central Inverters 8/10/2023 View

  • Revit Component Files (Non-Illuminated)

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Application Guide IIS-Central-Inverter-Quotation-Request-Checklist.pdf Easy Reference Checklist for submitting an IIS Central Inverter quotation request. 8/3/2023 View
    Brochures IISCN Factory Startup and Training Factory Startup and On-Site Training Services Available for IISCN and IISCN3P Inverters 2/24/2022 View
    Catalogs IIS Central Inverter Options Reference Guide Explore the available options for IIS Central Inverters to fit your emergency egress application 5/16/2023 View
    Sell Sheet IOTA IISCN Series Inverters for Canada Sell Sheet for IOTA IISCN and IISCN3P Inverter Solutions for Canada 8/3/2023 View
