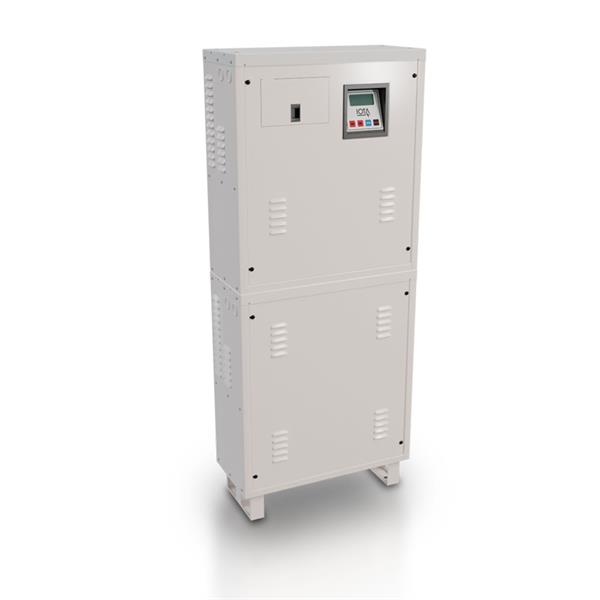

IISCNC Compact Single Phase Inverter

The IOTA IISCNC is a single phase Canada inverter featuring a compact cabinet design.

By IOTA

  • Overview
  • Specifications
The IOTA IISCNC Inverter Systems are single-phase sine wave output inverters for Canada designed to supply 1.0kVA to 2.8kVA of emergency power to the connected load. IISCNC Inverters will operate the emergency load at full brightness with a transfer speed of 2 milliseconds and feature a compact cabinet design to accommodate installations with limited space.
Emergency Operation
  • 1.0kVA to 1.8kVA
  • Operates all lighting load types
  • 120VAC to 347AC Input/Output Voltage options
Product Advantages
  • Single-phase emergency system with exceptional 98% power efficiency
  • Compact cabinet design with minimal 10.5 x 24.25 inch footprint
  • Fast Transfer (2 milliseconds) speed allows for uninterrupted operation of all lighting loads
  • Provides full light output in the emergency mode
  • Conducts required monthly and annual testing
Features
  • UL 924 Listed for Canada
  • 30, 60, and 120 minute runtime options
  • PWM/IGBT inverter design for optimal switching speed
  • Micro-processor controlled, temperature-compensating charger
  • Sealed long-life maintenance-free VRLA batteries
  • Low Battery Voltage Disconnect protects the batteries against deep discharge
  • Includes Input Circuit Breaker and Battery Protection
  • User Programmable / Password Protected Interface
  • High-contrast VFD display screen
  • Includes RS232 Serial Communications port
  • Durable steel cabinet design with white finish
  • Forced air cooling only while in the emergency mode with no filter requirement
  • Meets or exceeds all NEC and Life Safety Code Emergency Lighting requirements
  • Covered by IOTA's standard 1-year warranty
  • Factory Startup and Training available
Read More
Read Less
Product Type Emergency Inverter
Output Power 1000 VA
Life Safety Testing Self Diagnostics, Self Test
Series IISCNC

  • Suggested Replacement Products

Product Information

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Spec Sheet for IISCNC Compact Inverter for Canada Product specifications for IOTA IISCNC compact cabinet inverter for Canada 8/3/2023 View

  • Guideline Specifications

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions French (Canada)_IOTA IISCNC Series Manual.pdf (French) Installation and Instruction Manual for IISCNC Compact Inverters 9/1/2023 View
    Installation Instructions IOTA IISCNC Inverter Instruction Manual Installation and user guide for IOTA IISCNC compact cabinet inverter for Canada 8/3/2023
    Technical Bulletins IISCNC Compact Inverter Weights and Dimensions Weight and dimensional reference for IISCNC compact cabinet inverters for Canada. 8/4/2023 View
    Technical Bulletins System Electrolyte & kWh Levels - Canada.pdf Electrolyte & kWh levels for IOTA Canadian Central Inverters 8/10/2023 View

  • Revit Component Files (Non-Illuminated)

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Application Guide IIS-Central-Inverter-Quotation-Request-Checklist.pdf Easy Reference Checklist for submitting an IIS Central Inverter quotation request. 8/3/2023 View
    Brochures IISCN Factory Startup and Training Factory Startup and On-Site Training Services Available for IISCN and IISCN3P Inverters 2/24/2022 View
    Catalogs IIS Central Inverter Options Reference Guide Explore the available options for IIS Central Inverters to fit your emergency egress application 5/16/2023 View
    Sell Sheet IOTA IISCN Series Inverters for Canada Sell Sheet for IOTA IISCN and IISCN3P Inverter Solutions for Canada 8/3/2023 View
