Product Image

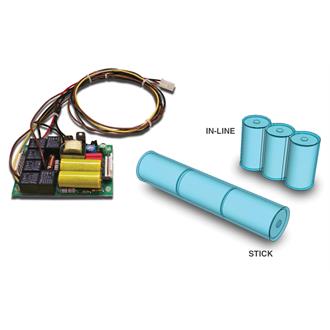

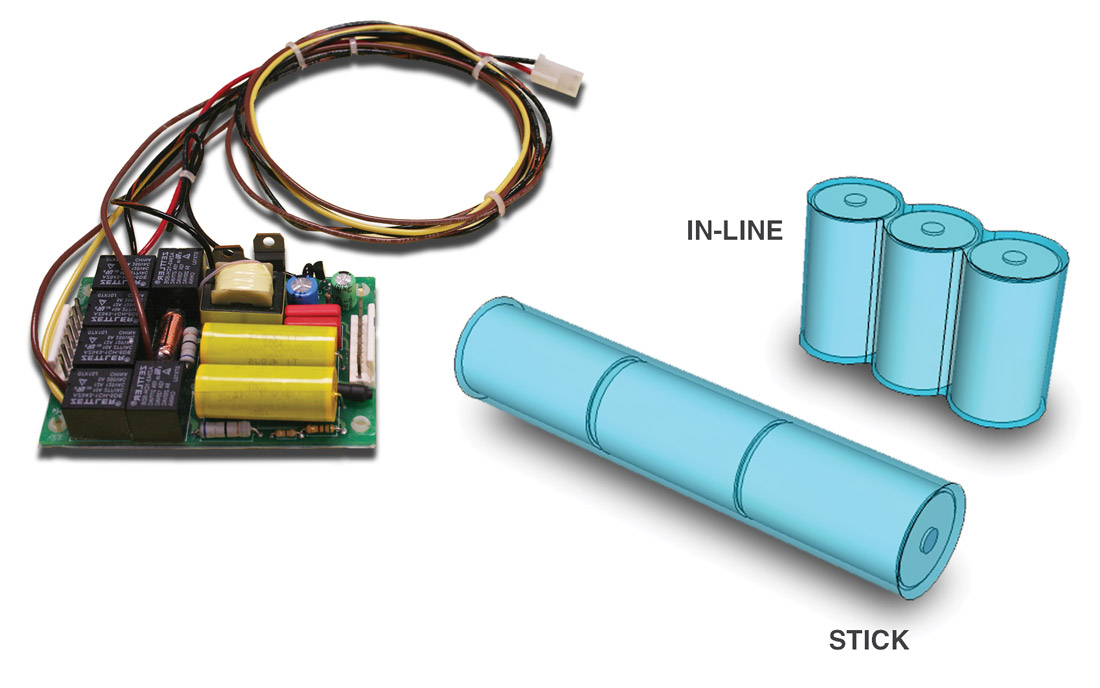

IOTA I42 with STICK and INLINE battery configurations

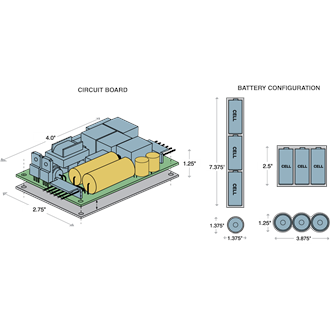

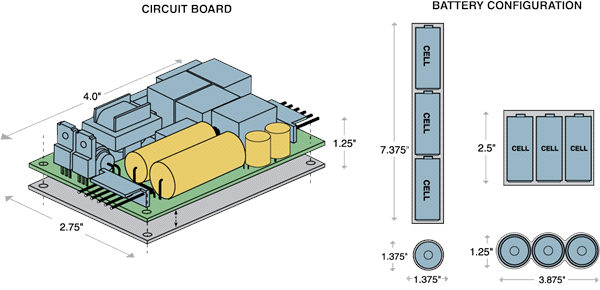

Dimensions - I42 L - Circuit Board: (Length) 4.0in x (Width) 2.75in x (Height) 1.25in, includes 0.25in stand off, Stick Battery: (Length) 7.375in x (Width) 1.375in x (Height) 1.375in, Inline Battery: (Length) 2.5in x (Width) 3.875in x Height: 1.25in

I42 L Emergency Ballast

Open Board Emergency Ballast for 4-Pin LED Retrofit (TLED) and Compact Fluorescent Luminaires

By IOTA

  • Overview
  • Specifications
The I42 L Compact Fluorescent Emergency Ballast Kit is designed to allow shallow or unusually shaped fixtures (such as wall packs, sconces, and recessed stair fixtures) to be configured for normal and emergency operation. The unit consists of an open circuit board assembly and battery pack, which is offered in two profile options. In the event of a power failure, the I42 L switches to the emergency mode and operates one or two of the existing lamps for 90 minutes. The I42 L utilizes AC output to ensure compatibility with new lamp technologies, and features lamp selector leads for optimizing light output for designated lamp types. The I42 L is a U.L. Recognized Component for factory installation only.
Initial Lumen Output
  • 650 Lumens
Lamps Operated
  • (1) 10W-42W 4-Pin Compact
  • (2) 10W-18W 4-Pin Compact
  • (1) 18W-35W Long Compact
Features
  • Open Circuit Board Design for use in fixtures with limited space
  • AC output for compatibility with low mercury content amalgam lamps
  • Time Delay feature for compatibility with End-of-Lamp-Life circuitry
  • Open Circuit Isolation protects unit when load is absent
  • Two battery profiles available
  • UL Recognized Component
  • Will cold start and operate all specified lamps
  • Long life high temperature recyclable Ni-Cad battery
  • Galvanized steel case
  • Includes test switch and charge indicator accessory kit
  • For use with switched or unswitched fixtures
  • Lamp selector leads optimize light output for designated lamp type
  • Meets or exceeds all NEC, IBC, and Life Safety Code Emergency Lighting Requirements
  • RoHS Compliant
Read More
Read Less
Product Type Emergency Ballast
Voltage Rating 120/277
Frequency 60HZ
Max. Operating Temp. 50
Min. Operating Temp. 0
Battery Run Time 90 min
Battery Chemistry Type NiCd
Battery Recharge Time 24 hours
Battery Activation Unit Connector
Life Safety Testing Manual Testing
Regulatory Listing NFPA 101, UR
Compliance Listing ROHS
Environmental Listing Damp Location
Series I42

Read More Read Less

  • Suggested Replacement Products

Product Information

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET I42 L Specifications Specification Sheet for the IOTA I42 L (Open Board) Model 2/17/2020 View

  • Guideline Specifications

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions I42 L I42 L - Open Board Configuration 9/19/2019 View
    Material Safety Data Sheet MSDS for nickel-cadmium drivers and ballasts Safety Data Sheet for Ni-Cad emergency battery component 5/12/2021 View
    Wiring Diagram (DWG) One Lamp Rapid Start Ballast DWG Format - Connections to a one lamp luminaire with a rapid start ballast 7/7/2020
    Wiring Diagram (DWG) Two Lamp (One EM Lamp) Rapid Start Ballast DWG Format - Connections to a two lamp luminaire (one emergency lamp) with a rapid start ballast 7/7/2020
    Wiring Diagram (DWG) Two Lamp (Two EM Lamps) Rapid Start Ballast DWG Format - Connections to a two lamp luminaire (two emergency lamps) with a rapid start ballast 7/7/2020
    Wiring Diagram (PDF) One Lamp Rapid Start Ballast PDF Format - Connections to a one lamp luminaire with a rapid start ballast 7/7/2020 View
    Wiring Diagram (PDF) Two Lamp (One EM Lamp) Rapid Start Ballast PDF Format - Connections to a two lamp luminaire (one emergency lamp) with a rapid start ballast 7/7/2020 View
    Wiring Diagram (PDF) Two Lamp (Two EM Lamps) Rapid Start Ballast PDF Format - Connections to a two lamp luminaire (two emergency lamps) with a rapid start ballast 7/7/2020 View
