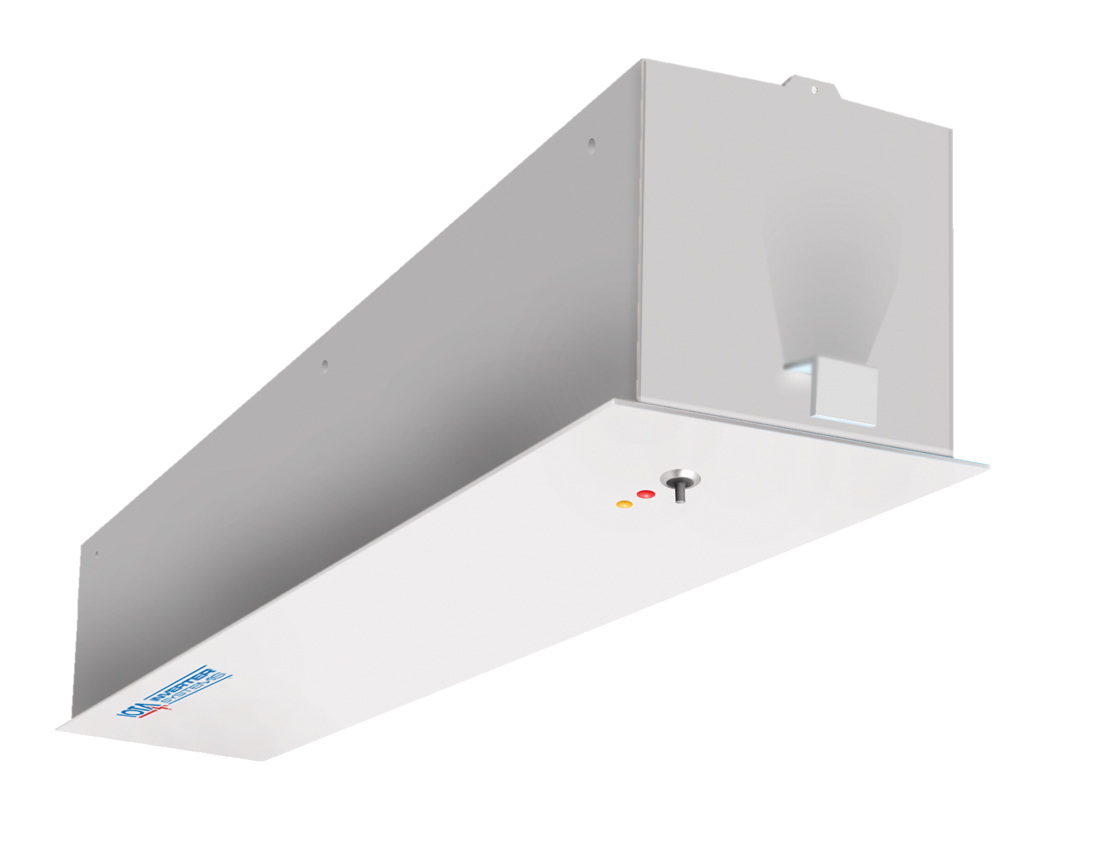

IIS 125 CG Emergency Inverter

125 Watt Emergency Inverter for Ceiling Grid Mounting

By IOTA

  • Overview
  • Specifications
The IOTA IIS 125 CG is a UL Listed stand-alone modified sine wave output inverter designed to provide power to designated emergency lighting fixtures. In a power loss situation, the IOTA IIS 125 CG will supply 125W of power from the onboard battery supply. The IOTA IIS 125 CG works in conjunction with incandescent, LED, and fluorescent lamp and fixture types and will automatically run switched, normally-on, or normally-off designated emergency fixtures. The IIS 125 CG is ideal for applications requiring an emergency source for lighting arrangements that utilize multiple lamp and fixture types. The IIS 125 CG is designed for installation in the ceiling grid. The IIS-125-CG is not for use in air supply/air return ceilings
Load Capability
  • 125 Watts
Compatible Load Types
  • LED
  • Fluorescent
  • Incandescent
Features
  • Emergency lighting supplied from one convenient source
  • Grid ceiling mounting design
  • Includes momentary contact test switch, yellow ready indicator, green inverter-on indicator, and red charging indicator
  • Open Circuit Isolation protects unit when load is absent
  • Replaceable output fuse protection
  • Variable-rate, temperature-compensated charger
  • Valve Regulated Lead Acid (VRLA) battery provides long life and is maintenance free
  • Line voltage allows for remote mounting of emergency fixtures at distances up to 1000 feet
  • Low Battery Voltage Disconnect and Line Latch Protection
  • Allows for emergency operation of switched or unswitched fixtures
  • Meets or exceeds all NEC, IBC, and Life Safety Code Emergency Lighting Requirements
  • Durable 18-gauge steel housing design with white semi-gloss powder-coat paint finish
Read More
Read Less
Product Type Emergency Inverter
Voltage Rating 120/277
Frequency 60HZ
Load Voltage Rating 120VAC, 277VAC
Output Power 125 Watts
Max. Operating Temp. 30
Min. Operating Temp. 20
Battery Run Time 90 min
Battery Chemistry Type Lead Acid
Life Safety Testing Manual Testing
Regulatory Listing C-UL-US
Compliance Listing ROHS
Series IIS

Read More Read Less
