Using Controls on Generator Powered Emergency Lighting - with the IOTA ETS-DR
ProductItem

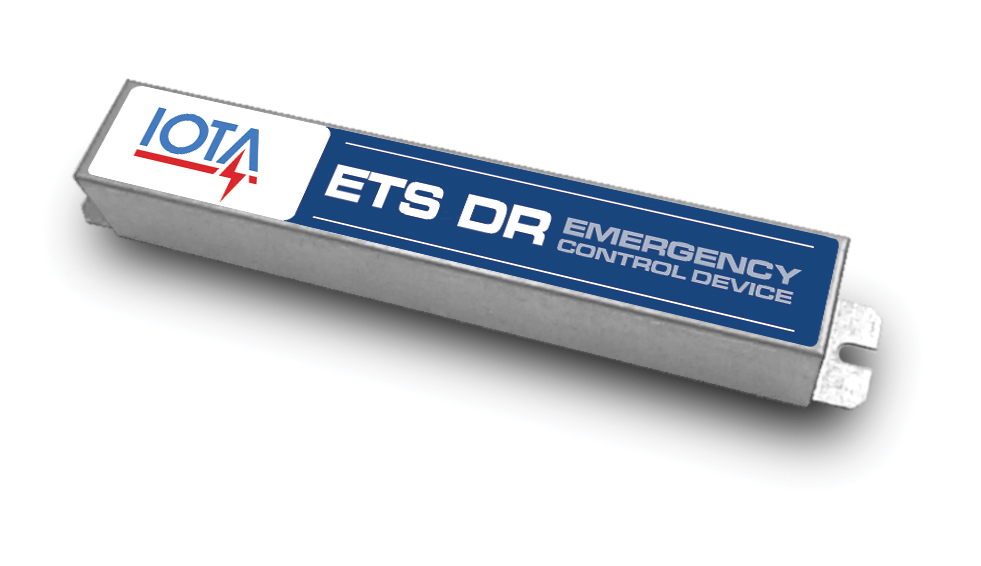

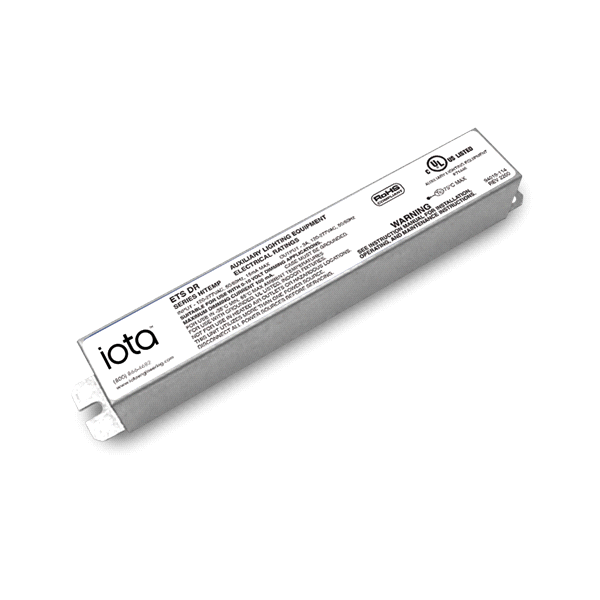

ETS DR Emergency Control Device

Emergency Control Device for 0-10V Dimming Applications

By IOTA

  • Overview
  • Specifications
The IOTA ETS-DR Emergency Lighting Control Device allows local switch and/or 0-10V dimming control of designated emergency luminaires when emergency power is provided by a generator or inverter. The ETS-DR senses the loss of normal AC power and bypasses the local switch device allowing emergency power directly to the fixture regardless of switch position.
Product Advantages
  • Regain local switch control of your designated emergency fixtures powered from a generator or inverter
  • Promotes Energy Savings by eliminating the need for always-on fixtures
  • Full Light Output
  • Compatible with LED loads up to 3amps continuous in accordance with NEMA 410
  • Dimming Relay Leads accommodate 0-10V dimming controls
Features
  • Shuts local switch devices in emergency mode allowing for full lumen output
  • Galvanized steel case
  • Available in flex or non-flex configuration
  • Rated for use in plenum fixtures
  • Meets or exceeds all NEC, IBC, and Life Safety Code Emergency Lighting Requirements
  • RoHS Compliant
Read More
Read Less
Product Type Emergency Control Device
Voltage Rating 120-277
Frequency 60HZ
Max. Controlled Current 3A
Max. Input Current 40mA
Max. Operating Temp. 65
Min. Operating Temp. -20
Life Safety Testing Manual Testing
Regulatory Listing cUL
Compliance Listing ROHS
Series ETS

Read More Read Less

  • Suggested Replacement Products

Product Information

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET ETS_DR_seriesHi-Temp.pdf ETS DR Specification Sheet 5/12/2020 View

  • Guideline Specifications

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions ETS-DR Series Hi-Temp_Manual.pdf ETS DR Series Hi-temp Installation Manual 5/12/2020 View
    Technical Bulletins ETS DR NOKIT Technical Bulletin Describes the ETS DR NOKIT model option of the ETS DR 6/23/2021 View
    Wiring Diagram Separately Derived System (Switched Neutral) PDF File - Typical generator application in conjunction with a double-pole 1008 transfer switch 7/16/2020 View
    Wiring Diagram Separately Derived System (Switched Neutral) DWG File - Typical generator application in conjunction with a double-pole 1008 transfer switch 7/16/2020
    Wiring Diagram Typical Application DWG File - Typical generator application with a 0-10V dimming control 7/16/2020
    Wiring Diagram Typical Application PDF File - Typical generator application with a 0-10V dimming control 7/16/2020 View

  • Revit Component Files (Non-Illuminated)

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Application Guide ETS DR Product Spotlight A brief (2-page) overview of the advantages of including the IOTA ETS DR in your emergency circuit 3/9/2021 View
    Application Guide IOTA Contractor Insider_ALCR and dimming.pdf Learn how Dimming Relay leads save time and money when using ALCRs in 0-10V dimming applications. 7/13/2021 View
    Application Guide The ETS DR with Micro-Inverters and 0-10V Dimming Use the dimming relay leads of the ETS DR to include 0-10V dimming with IOTA micro-inverters. 4/12/2022 View
    Brochures IOTA HE Products for California Title 20 IOTA Emergency Lighting Solutions Certified in the Title 20 Appliance Efficiency Database 7/21/2022 View
