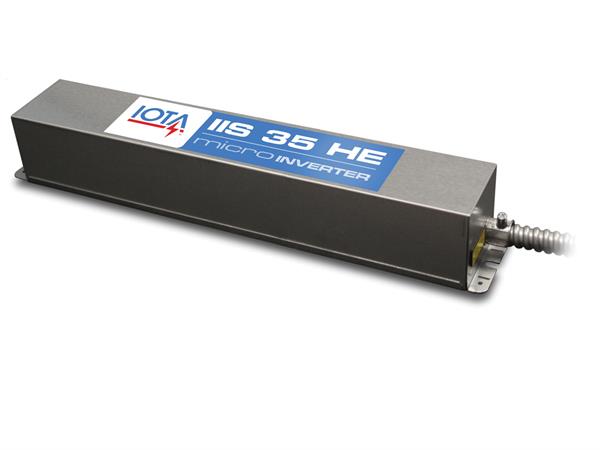

IOTA IIS 35 HE

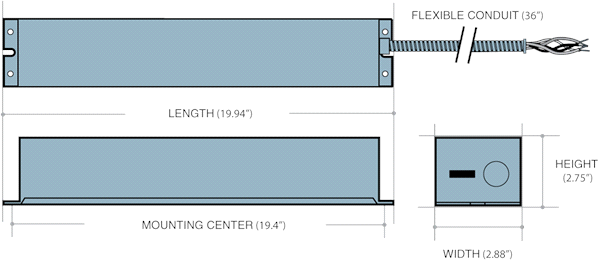

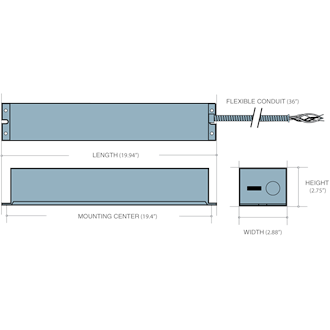

Dimensions - IIS 35 HE - Length: 19.94in, Width: 2.88in, Height: 2.75in, Mounting Center: 19.4in, Flexible Conduit: 36in

IIS 35 HE Emergency Micro-Inverter

35 Watt, High Efficiency Emergency Micro Inverter for CA Title 20

By IOTA

    CA Title 20
  • Overview
  • Specifications
The IOTA IIS 35 HE is a UL Listed pure sine wave output inverter designed to provide power to the designated emergency lighting fixture. In a power loss situation, the IOTA IIS 35 HE will supply 120 or 277 VAC power to operate up to a 35W total connected load for not less than 90 minutes. The IOTA IIS 35 HE works in conjunction with LED, fluorescent, and incandescent lamp and fixture types and will automatically run switched, normally-on, or normally-off designated emergency fixtures. The IIS 35 HE is ideal for applications requiring an emergency source in elevated ceilings, for high output luminaires, and lamp types utilizing Edison Screw (ES) designs. The IIS 35 HE features high-efficiency performance to help meet CEC Title 20 efficiency requirements.
Load Capability
  • 35 Watts
Compatible Load Types
  • LED
  • Fluorescent
  • Incandescent
Features
  • High Efficiency Performance meets CA T20 battery charger efficiency standards
  • 120 or 277 VAC output selection simplified using external slide switch interface
  • Pure sine wave output
  • Operates fixtures with dimmable ballasts and screw-base lamp types
  • For use with switched or unswitched fixtures
  • Includes single-piece test switch and charge indicator accessory
  • Recyclable long-life high temperature nickel-cadmium battery
  • Line voltage allows for remote mounting of emergency fixtures at distances up to 250 feet
  • Low Battery Voltage Disconnect (LVD)
  • Rated for use in damp locations
  • Meets or exceeds all NEC, IBC, and Life Safety Code Emergency Lighting Requirements
  • Galvanized steel enclosure with 36" flexible conduit for wiring connections to the fixture
  • RoHS Compliant
Read More
Read Less
Product Type Emergency Inverter
Voltage Rating 120-277
Frequency 50/60HZ
Load Voltage Rating 120VAC, 277VAC
Output Power 35 Watts
Max. Operating Temp. 50
Min. Operating Temp. 0
Battery Run Time 90 min
Battery Chemistry Type NiCd
Life Safety Testing Manual Testing
Regulatory Listing C-UL-US
Compliance Listing CA Title 20, ROHS
Series IIS

Read More Read Less

  • Suggested Replacement Products

Product Information

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET IIS 35 HE Specifications Specification Sheet for the IIS 35 HE 2/19/2020 View

  • Guideline Specifications

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions IIS 35 HE Manual Installation Manual for the IIS 35 HE 2/26/2020 View
    Material Safety Data Sheet MSDS for nickel-cadmium drivers and ballasts Safety Data Sheet for Ni-Cad emergency battery component 5/12/2021 View
    Technical Bulletins IOTA Contractor Insider: Inverters and Inrush.pdf Select the optimal emergency inverter by understanding the causes and impact of inrush on a circuit. 4/12/2021 View
    Technical Bulletins IOTA Contractor Insider_Extending-Runtimes.pdf IOTA offers different ways to achieve extended runtimes for 120-minute emergency applications 7/23/2021 View
    Wiring Diagram (DWG) Typical Installation DWG Format - Typical installation with a single emergency luminaire 7/9/2020
    Wiring Diagram (PDF) Typical Installation PDF Format - Typical installation with a single emergency luminaire 7/9/2020 View

  • Revit Component Files (Non-Illuminated)

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Application Guide Contractor Insider - Remote Mounting Guidelines A Quick Reference for knowing remote mounting capabilities of emergency lighting solutions. 10/21/2021 View
    Application Guide IIS Mini and Micro Inverter Remote Mounting Guidelines for remote mounting IOTA IIS mini and micro-inverter systems 1/4/2023 View
    Application Guide The ETS DR with Micro-Inverters and 0-10V Dimming Use the dimming relay leads of the ETS DR to include 0-10V dimming with IOTA micro-inverters. 4/12/2022 View
