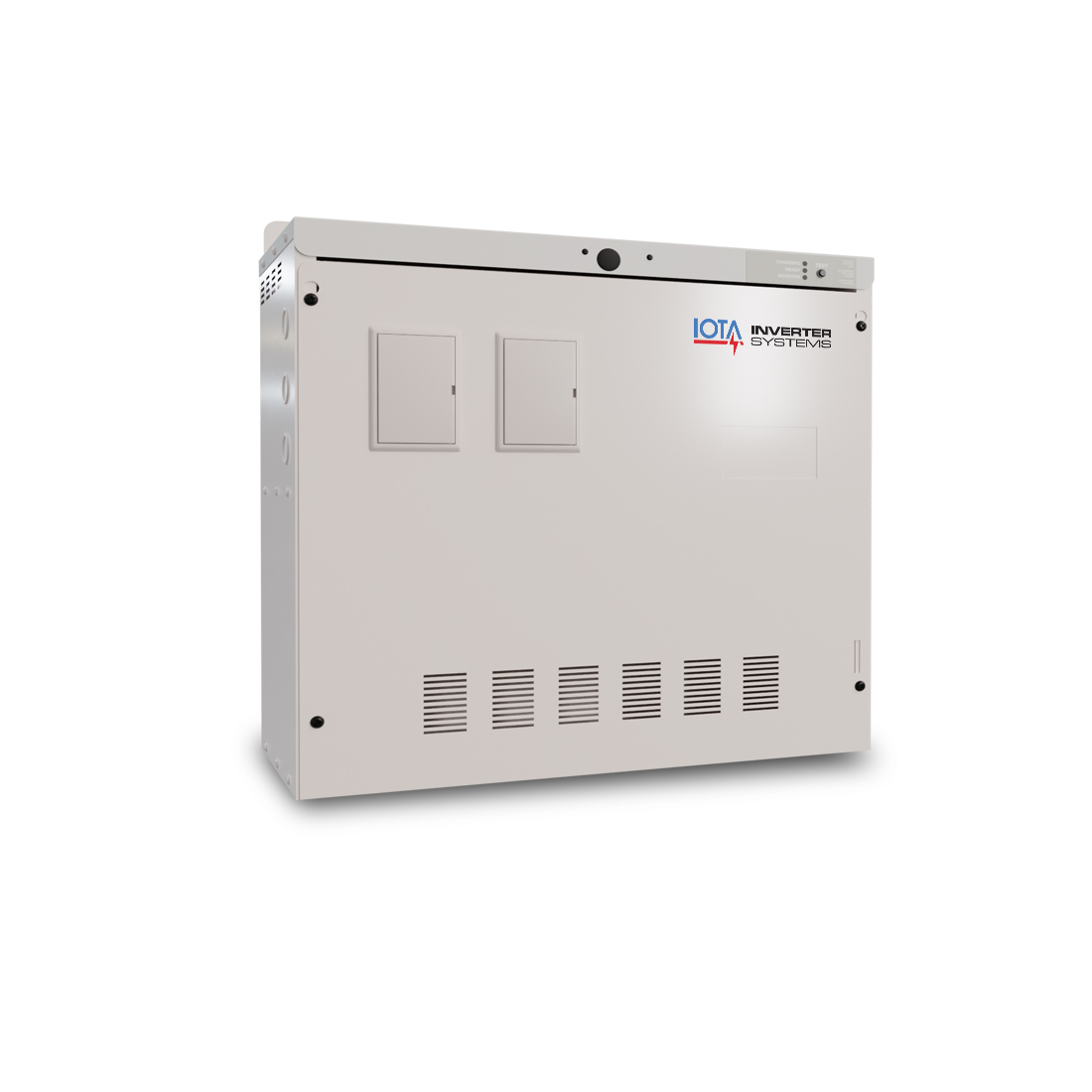

IIS 1100 Emergency Inverter

1100 Watt Self-Diagnostic Emergency Inverter

By IOTA

  • Overview
  • Specifications
The IOTA IIS 1100 is a UL Listed single-phase sine wave output inverter designed to supply 1100W of emergency power to the connected load at a transfer speed of 2-10 milliseconds. The IIS 1100 will operate the emergency load at full brightness and conducts monthly and annual tests to determine operational readiness
Emergency Operation
  • 1100W
  • Operates LED, Fluorescent, Incandescent fixtures
Product Advantages
  • Provides full light output in the emergency mode
  • Conducts required monthly and annual testing
Features
  • UL 924 Listed
  • PWM/MOSFET inverter design delivers pure sine wave output
  • Micro-processor controlled 3-stage charger
  • Field-selectable Dual Voltage 120/277VAC
  • Sealed long-life maintenance-free VRLA batteries
  • Low Battery Voltage Disconnect protects the batteries against deep discharge
  • Includes Input Fuse and Battery Fuse Protection
  • Operates Normally On, Normally Off, and Switched Fixtures
  • Line Voltage allows for remote mounting of emergency fixtures at distances of 1000+ feet
  • Dimming Relay option for dimming control applications
  • Durable steel compact cabinet design with white finish
  • Meets or exceeds all NEC and Life Safety Code Emergency Lighting requirements
  • Covered by IOTA's standard 3-year warranty
  • Factory Startup and Training available
Read More
Read Less
Product Type Emergency Inverter
Voltage Rating 120/277
Frequency 60HZ
Load Voltage Rating 120VAC, 277VAC
Output Power 1100 VA
Max. Operating Temp. 30
Min. Operating Temp. 20
Battery Run Time 90 min
Battery Chemistry Type Lead Acid
Life Safety Testing Self Diagnostics, Self Test
Regulatory Listing UL, UL924
Compliance Listing ROHS
Series IIS

Read More Read Less

  • Suggested Replacement Products

Product Information

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET IIS_1100 Spec Sheet.pdf IOTA IIS 1100 Inverter Specification Sheet 2/16/2022 View
  • Guideline Specifications

    Document Type Document Title Description Updated View
    Guideline Specification Sheets IOTA IIS 1100 Central Inverter -1100W-AIA-lockin-spec-Rev-101322.docx Spec guideline and reference for IIS 1100 (1100W) inverter 10/26/2022
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions IOTA IIS 1100 Installation and Users Manual.pdf Installation and User's Guide for IOTA IIS 1100 Central Inverter 12/28/2021 View
    Installation Instructions IOTA IIS 1100 Quick Start Guide.pdf Quick Start Guide for IIS 1100 Inverter 12/28/2021 View
    Material Safety Data Sheet MSDS - VRLA Batteries Material Safety Data Sheet for the VRLA Batteries 5/13/2021 View
    Technical Bulletins IOTA Contractor Insider_Extending-Runtimes.pdf IOTA offers different ways to achieve extended runtimes for 120-minute emergency applications 7/23/2021 View
  • BIM Models (Revit)

    Document Type Document Title Description Updated View
    BIM Models IIS 1100.rfa IIS 1100 Models 12/16/2021
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Application Guide 0-10V Dimming with IIS Inverters This Tech Brief details the use of the DR dimming relay capability on select IOTA IIS inverters. 2/17/2022 View
    Application Guide IIS-Central-Inverter-Quotation-Request-Checklist.pdf Easy Reference Checklist for submitting an IIS Central Inverter quotation request. 11/22/2022 View
    Brochures Factory Startup, Training, and Maintenance Plans Expert Installation, On Site Training, and Preventative Maintenance Plans for IIS Central Inverters 5/5/2022 View
    Brochures IOTA IIS Central Inverter Product Brochure A quick-reference resource for IOTA's IIS Central Inverter products. 5/2/2022 View
    Catalogs IIS Central Inverter Options Reference Guide Explore the available options for IIS Central Inverters to fit your emergency egress application 7/15/2022 View
