IIS 550 I Emergency Inverter

550 Watt Emergency Inverter

By IOTA

  • Overview
  • Specifications

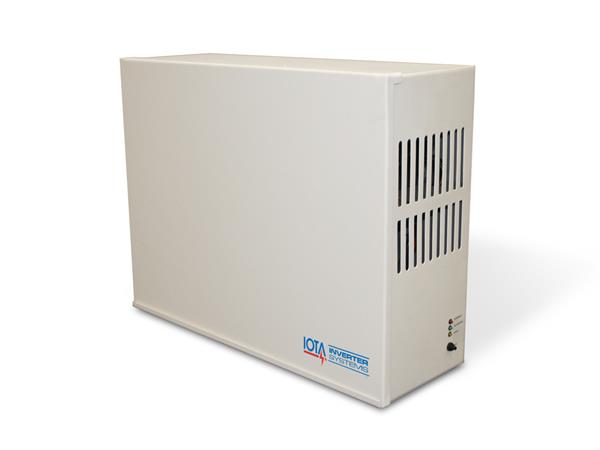

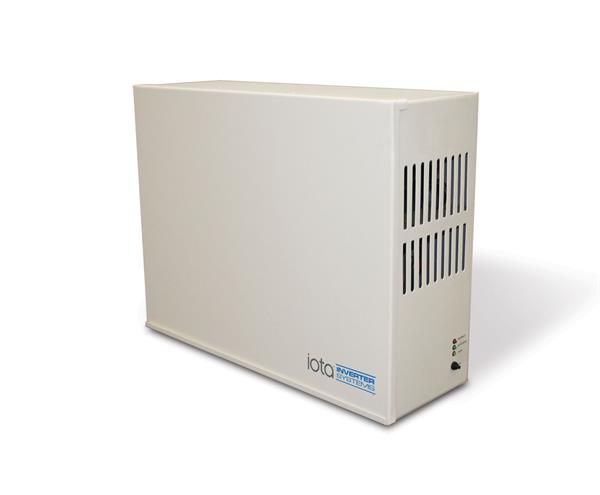

The IOTA IIS 550 I is a UL Listed stand-alone sine wave output inverter designed to provide power to designated emergency lighting fixtures. In a power loss situation, the IOTA IIS 550 I will supply 550W of power from the onboard battery supply. The IOTA IIS 550 I works in conjunction with fluorescent, incandescent, and LED lighting loads and will automatically run switched, normally-on, or normally-off designated emergency fixtures. The IIS 550 I is ideal for applications that utilize multiple lamp and fixture types.
Load Capability
  • 550 Watts
Compatible Load Types
  • LED
  • Fluorescent
  • Incandescent
Features
  • Pure sine wave output
  • Includes momentary contact test switch, yellow ready indicator, green inverter-on indicator, and red charging indicator
  • Variable-rate, temperature compensated charger
  • Valve Regulated Lead Acid (VRLA) battery provides long life and is maintenance free
  • Line voltage allows for remote mounting of emergency fixtures at distances up to 1000 feet
  • Resettable output circuit breaker provides protection against circuit overload
  • Low Battery Voltage Disconnect and Line Latch Protection
  • Allows for emergency operation of switched and unswitched fixtures
  • Dimming Relay option for dimming control applications
  • Meets or exceeds all NEC, IBC, and Life Safety Code Emergency Lighting Requirements
  • Durable 16-gauge steel housing design with white semi-gloss powerder-coat paint finish
Read More
Read Less
Product Type Emergency Inverter
Voltage Rating 120/277
Frequency 60HZ
Load Voltage Rating 120VAC, 277VAC
Output Power 550 Watts
Max. Operating Temp. 30
Min. Operating Temp. 20
Battery Run Time 90 min
Battery Chemistry Type Lead Acid
Life Safety Testing Manual Testing
Regulatory Listing UL, UL924
Compliance Listing ROHS
Series IIS

Read More Read Less

  • Suggested Replacement Products

Product Information

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET IIS 550 I Specifications Specification Sheet for IIS 550 I Models 9/16/2022 View
  • Guideline Specifications

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions IIS 550 I DR Manual IIS 550 I DR (Dimming Relay) Model 2/22/2021 View
    Installation Instructions IIS 550 I Manual IIS 550 I (Standard) Model 2/22/2021 View
    Material Safety Data Sheet MSDS-HY_Sealed-Lead-Acid-Battery.pdf Safety Data Sheet for Sealed Lead Acid Battery component 5/13/2021 View
    Technical Bulletins IOTA Contractor Insider_Extending-Runtimes.pdf IOTA offers different ways to achieve extended runtimes for 120-minute emergency applications 7/23/2021 View
    Wiring Diagram (DWG) Dimming Relay (DR) Model DWG Format - Connections to an emergency load with a 0-10V dimming control 7/9/2020
    Wiring Diagram (DWG) Dimming Relay (DR) Models - Without Circuit Breaker DWG Format - Connections to an emergency load with a 0-10V dimming control (legacy models - no internal circuit breaker) 7/9/2020
    Wiring Diagram (DWG) Typical Installation DWG Format - Connections to an emergency load with an optional switched input 7/9/2020
    Wiring Diagram (DWG) Typical Installation - Without Circuit Breaker DWG Format - Connections to an emergency load with an optional switched input (legacy models - no internal circuit breaker) 7/9/2020
    Wiring Diagram (PDF) Dimming Relay (DR) Model PDF Format - Connections to an emergency load with a 0-10V dimming control 7/9/2020 View
    Wiring Diagram (PDF) Dimming Relay (DR) Model - Without Circuit Breaker PDF Format - Connections to an emergency load with a 0-10V dimming control (legacy models - no internal circuit breaker) 7/9/2020 View
    Wiring Diagram (PDF) Typical Installation PDF Format - Connections to an emergency load with an optional switched input 7/9/2020 View
    Wiring Diagram (PDF) Typical Installation - Without Circuit Breaker PDF Format - Connections to an emergency load with an optional switched input (legacy models - no internal circuit breaker) 7/9/2020 View
  • BIM Models (Revit)

    Document Type Document Title Description Updated View
    BIM Models IIS 550 I.rfa IIS 550 I 12/16/2021
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Application Guide 0-10V Dimming with IIS Inverters This Tech Brief details the use of the DR dimming relay capability on select IOTA IIS inverters. 2/17/2022 View
    Application Guide Contractor Insider - Remote Mounting Guidelines A Quick Reference for knowing remote mounting capabilities of emergency lighting solutions. 10/21/2021 View
    Application Guide IIS Mini and Micro Inverter Remote Mounting Guidelines for remote mounting IOTA IIS mini and micro-inverter systems 10/21/2021 View
    Application Guide Tech App_Mini-Inverters and Outdoor Egress.pdf Understand How IIS Mini Inverters Solve Unique Outdoor Emergency Lighting Challenges 7/23/2021 View
    Sell Sheet Sell Sheet - IOTA IIS Mini-Inverters Sell Sheet for IOTA IIS Emergency Mini-Inverters 5/13/2022 View
