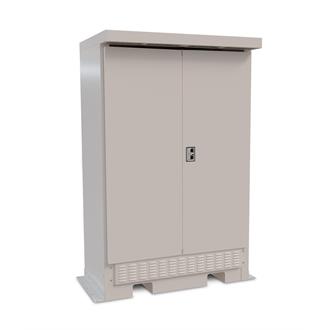

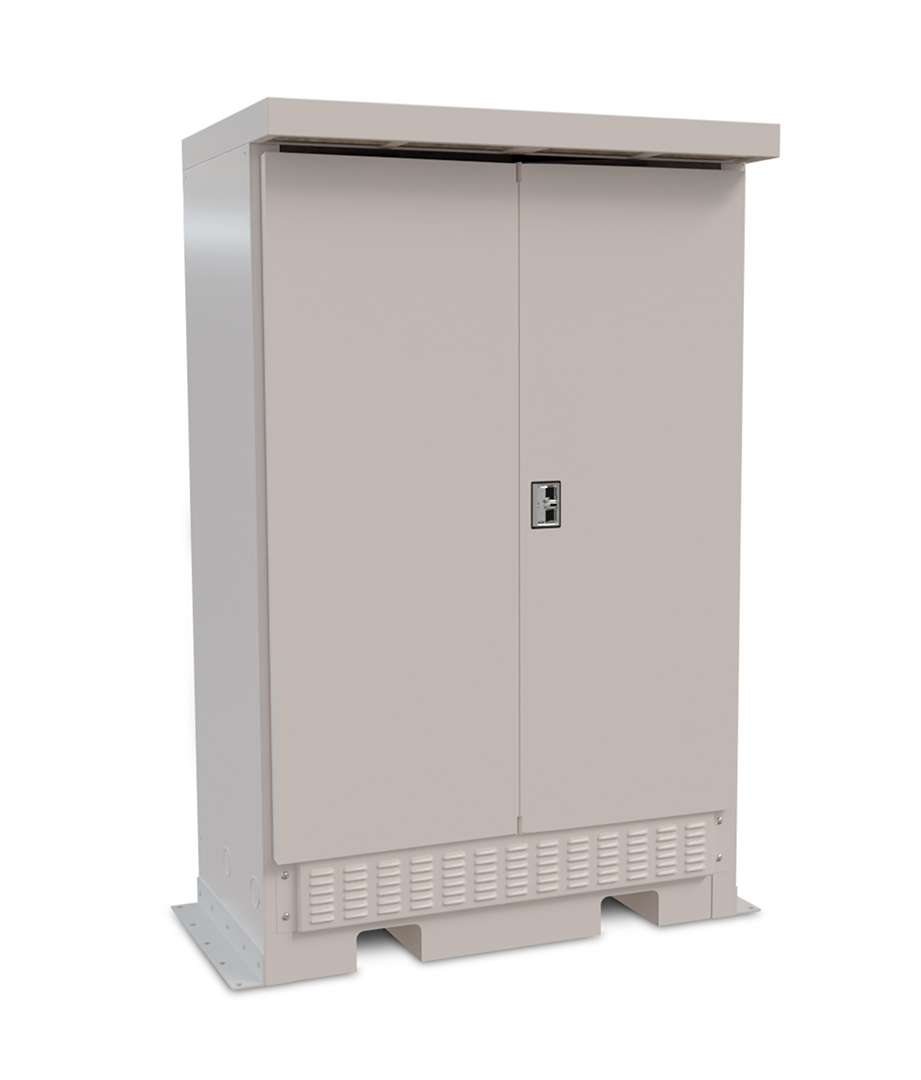

IIS3P EXT Three-Phase Outdoor Inverters

4.0kVA to 10.0kVA Three-Phase Inverters for Outdoor Applications

By IOTA

  • Overview
  • Specifications
The IOTA IIS3P EXT Central Inverter Systems are UL Listed three-phase sine wave output inverters designed to supply 4.0kVA to 10kVA of emergency power to the connected load. IIS3P Inverters will operate the emergency load at full brightness with a transfer speed of 2 milliseconds and features a NEMA 3R enclosure suitable for outdoor installation.
Emergency Operation
  • 4.0kVA to 10kVA
  • Operates all lighting load types
  • 120VAC to 480AC Input/Output Voltage options
Product Advantages
  • Three-phase emergency system with exceptional 98% power efficiency
  • NEMA 3R steel cabinet rated for outdoor installation applications
  • Fast Transfer (2 milliseconds) speed allows for uninterrupted operation of all lighting loads
  • Provides full light output in the emergency mode
  • Conducts required monthly and annual testing
Features
  • UL 924 Listed
  • PWM/IGBT inverter design for optimal switching speed
  • Micro-processor controlled, temperature-compensating charger
  • Sealed long-life maintenance-free VRLA batteries
  • Low Battery Voltage Disconnect protects the batteries against deep discharge
  • Includes Input Circuit Breaker and Battery Fuse Protection
  • Output Circuit Breaker options available
  • User Programmable / Password Protected Interface
  • Touchpad interface and LCD display screen
  • Includes RS232 Serial Communications port
  • Durable steel cabinet design with white finish
  • Temperature-controlled forced air cooling with no filter requirement
  • Meets or exceeds all NEC and Life Safety Code Emergency Lighting requirements
  • Covered by IOTA's standard 1-year warranty
  • Factory Startup and Training available
Read More
Read Less
Product Type Emergency Inverter
Voltage Rating 120, 208, 277, 480
Frequency 60HZ
Load Voltage Rating 120VAC, 208VAC, 277VAC, 480VAC
Output Power 10000 VA, 4000 VA, 5000 VA, 6500 VA, 8000 VA
Max. Operating Temp. 30
Min. Operating Temp. 20
Battery Run Time 90 min
Battery Chemistry Type Lead Acid
Life Safety Testing Self Diagnostics, Self Test
Regulatory Listing UL
Series IIS3P

Read More Read Less

  • Suggested Replacement Products

Product Information

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET IIS3P EXT Spec Sheet IIS3P EXT Three Phase Outdoor Inverter Specification Sheet 5/5/2023 View

  • Guideline Specifications

    Document Type Document Title Description Updated View
    Guideline Specification Sheets IOTA IIS3P EXT Three-Phase Central Inverters -4-8K-AIA-lockin-spec-Rev-B-01-11-19.doc Specification reference and guidelines for IIS3P Three-Phase Outdoor Inverters 10/26/2022

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions IOTA IIS and IIS3P EXT Instruction Manual Installation and User Guide for IOTA IIS Single Phase and IIS3P Three-Phase EXT Central Inverters 12/28/2021 View
    Material Safety Data Sheet MSDS - VRLA Batteries Material Safety Data Sheet for the VRLA Batteries 5/13/2021 View
    Technical Bulletins BTU Loss BTU Loss for IOTA Central Inverter Systems 6/2/2021 View
    Technical Bulletins System Electrolyte & kWh Levels Electrolyte & kWh levels for IOTA Central Inverters 6/2/2021 View

  • Revit Component Files (Non-Illuminated)

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Application Guide IIS-Central-Inverter-Quotation-Request-Checklist.pdf Easy Reference Checklist for submitting an IIS Central Inverter quotation request. 11/22/2022 View
    Brochures Factory Startup, Training, and Maintenance Plans Expert Installation, On Site Training, and Preventative Maintenance Plans for IIS Central Inverters 5/5/2022 View
    Brochures IIS Inverter Control Panel Overview Overview of the operational functions and data access of the IIS Central Inverter control panel. 11/4/2021 View
    Brochures IOTA IIS Central Inverter Product Brochure A quick-reference resource for IOTA's IIS Central Inverter products. 5/2/2022 View
    Catalogs IIS Central Inverter Options Reference Guide Explore the available options for IIS Central Inverters to fit your emergency egress application 5/16/2023 View

  • Need Product Assistance? (e.g. How to Buy, Technical Support, Warranty)

    How to Buy

    The IOTA products are primarily sold through a network of agents and distributors across North America.

    •  Find an Agent or Distributor

    •  Request a Call

    Technical Support

    The IOTA technical team is dedicated to providing outstanding product support. Please click on the appropriate link below,
    or feel free to call us at 855.363.9527.

    •  FAQs

    •  Technical Library

    •  Email Us

    Warranty

    Please click on the appropriate link below to learn more about IOTA terms & conditions and product warranty options.

    •  IOTA Emergency Products with Batteries

    •  IOTA Emergency Control (ALCR) Devices

    •  IOTA DLS Battery Chargers and Power Converters

    •  IOTA Warranty Replacements & Stock Returns


View Stocked Products

  • Stock-Sku-FeedbackIs the new stocked product detail helpful? Please tell us what you think, CLICK HERE.

    SKU data not available, please contact your local agent.

    Clear Filters

    {{getMinimumDisplayedIndex()}} - {{getMaximumDisplayedIndex()}} of {{filteredStockedProducts.length}} results

    {{icon.AltText}}
    Close Details View
    Product Details
    By IOTA
    exclamation-v2-YL
    Product information is not available at this time. Please try again later.
    Catalog #
    {{popupSku.details.SHORT_DESCRIPTION ? popupSku.details.SHORT_DESCRIPTION : 'N/A'}}
    Description
    {{popupSku.details.LONG_DESCRIPTION ? popupSku.details.LONG_DESCRIPTION : 'N/A'}}
    CI Code
    {{popupSku.details.CICODE ? popupSku.details.CICODE : 'N/A'}}
    Pallet Qty
    {{popupSku.details.PALLET_QUANTITY ? popupSku.details.PALLET_QUANTITY : 'N/A'}}
    Weight
    {{popupSku.details.WEIGHT ? popupSku.details.WEIGHT + ' (lbs)' : 'N/A'}}
    UPC
    {{popupSku.details.UPC ? popupSku.details.UPC : 'N/A'}}
    exclamation-v2-YL
    Your session has expired. Click on the login link to view stocked product information.
    Login/Register
    Agent Price Levels
    Name
    Price
    Commision
    {{priceResult.LABEL}} {{priceResult.NO_PRICE_MESSAGE}} ${{priceResult.UNIT_PRICE | number : 2}} {{priceResult.COMM_PCT}} %
    Distr. Price
    Clear
    Name
    Distr. Price
    {{priceResult.LABEL}} ${{priceResult.UNIT_PRICE | number : 2}}
    Price ${{popupSku.Price | number : 2}}
    {{popupSku.noQuotesMessage}}
    Read More
    Read Less
    Clear
    Name
    Distr. Price
    {{priceResult.LABEL}} ${{priceResult.UNIT_PRICE | number : 2}}
    Read More
    Read Less
    Available Inventory (Stocked)
    Qty.
    Est. Ship Date
    Location
    Qty. In Transit
    {{loc.QUANTITY > 0 ? loc.QUANTITY : 0}} {{loc.ESTIMATED_SHIP_DATE}} {{loc.LOCATION}} {{loc.IN_TRANSIT_QUANTITY}}
    Restocking date is unavailable at this time.
    Location Est. Restocking Qty & Date
    {{transitDetail.QUANTITY > 0 ? transitDetail.QUANTITY : 0}}{{transitDetail.ARRIVAL_DATE ? transitDetail.ARRIVAL_DATE : "Date Not Provided"}}
    Production Lead-Time
    Production lead-time is not available at this time.
    Mfg. Time
    Total Time
    Est. Ship Date
    Location
    {{loc.MfgLeadTime}} {{loc.TotalLeadTime}} {{loc.EstShipDate}} {{loc.Location}}
    (No Products Found)
    {{icon.AltText}}
    {{result.Title}}
    {{result.Title}}
    {{result.Description}}
    Quantity
    {{(result.Quantity > 0) ? result.Quantity : 0}} in {{result.Location.substring(result.Location.indexOf("(")+1, result.Location.indexOf(")"))}}
    Total at all DCs: {{result.EnterpriseAvailability}}
    Distr. Price
    ${{result.Price | number : 2}}
    Distr. Price
    Contact Acuity
    Distr. Price
    Contact Rep
    Distr. Price
    GET PRICE
    Distr. Price
    No pricing established

    No Locations Could Be Found.


    This catalog # is not available at any location at this time. Inventory is replenished daily, please check back or contact your local sales representative or agency further details.

    exclamation-v2-YL
    Your session has expired. Click on the login link to view stocked product information.
    Login/Register
    exclamation-v2-YL
    Product information is not available at this time. Please try again later.
    Important Notice Orders entered before noon will ship same day, and orders entered after noon will ship next day within your given timezone.
    Available Est. Ship Date Location In Transit
    {{loc.QUANTITY > 0 ? loc.QUANTITY : 0}} {{loc.ESTIMATED_SHIP_DATE}} {{loc.LOCATION}}     {{loc.IN_TRANSIT_QUANTITY}}
    Restocking date is unavailable at this time.
    Location Est. Restocking Qty & Date
    {{transitDetail.QUANTITY > 0 ? transitDetail.QUANTITY : 0}}{{transitDetail.ARRIVAL_DATE ? transitDetail.ARRIVAL_DATE : "Date Not Provided"}}
    Available
    {{loc.QUANTITY > 0 ? loc.QUANTITY : 0}}
    Est. Ship Date
    {{loc.ESTIMATED_SHIP_DATE}}
    Location
    {{loc.LOCATION}}
    In Transit
    {{loc.IN_TRANSIT_QUANTITY}}
    Restocking date is unavailable at this time.
    Location Est. Restocking Qty & Date
    {{transitDetail.QUANTITY > 0 ? transitDetail.QUANTITY : 0}}
    {{transitDetail.ARRIVAL_DATE ? transitDetail.ARRIVAL_DATE : "Date Not Provided"}}
Configurator

Build Cat. # / Submittal Spec Sheet

  • Start Configurating a Product

Compatible Products

  • Accessories
Close Quick View Modal
sr

View Product Availability

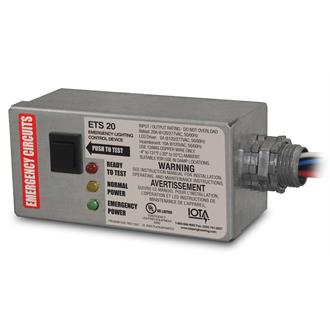

ETS DR Emergency Control Device
