ILB3020 Emergency Driver

Constant Current LED Emergency Driver for 26-32 VDC LED Luminaires


  • Overview
  • Specifications

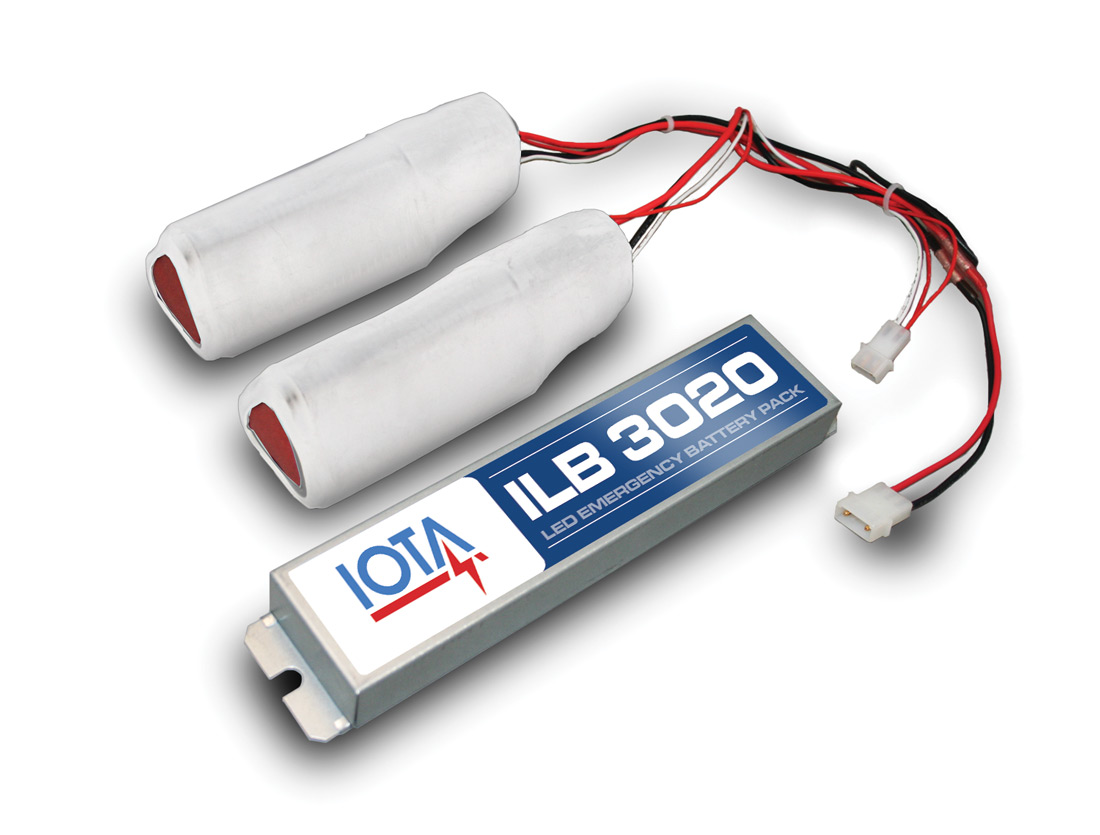

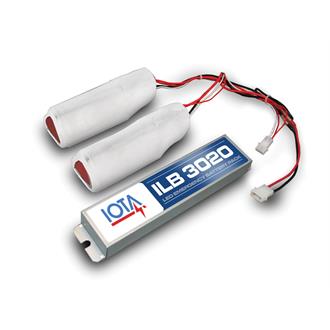

The ILB3020 from IOTA Engineering is a UL Recognized LED emergency battery pack that allows the same LED fixture to be used for both normal and emergency operation. In the event of a power failure, the ILB3020 switches to the emergency mode and operates the existing fixture for 90 minutes. The unit includes two 8-cell long life high temperature Ni-Cad battery packs, and a single can containing a charger and converter circuit for wiring to the fixture and test accessories.
LED Operation
  • Up to 20W LED Load
  • 23-33 VDC Output
  • Long life high temperature recyclable Ni-Cad battery
  • Galvanized steel case
  • Includes test switch and charge indicator accessory kit
  • For use with switched and unswitched fixtures
  • Meets or exceeds all National Electric Code and Life Safety Code Emergency Lighting Requirements
  • Cold-weather model available
  • Suitable for use in damp locations and in enclosed and gasketed fixtures
  • RoHS Compliant
Read More
Read Less
Product Type Emergency LED Driver
Voltage Rating 120/277
Frequency 60HZ
Load Voltage Rating 26-32 VDC
Max. Operating Temp. 50
Min. Operating Temp. 0
Battery Run Time 90 min
Battery Chemistry Type NiCd
Battery Recharge Time 24 hours
Battery Activation Unit Connector
Life Safety Testing Manual Testing
Regulatory Listing NFPA 101, UR
Compliance Listing ROHS
Environmental Listing Damp Location
Series ILB3020

Read More Read Less

  • Suggested Replacement Products

Product Information

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET ILB3020 750MA Specifications for 750MA models 5/27/2022 View
    SPEC SHEET ILB3020 600MA (Discontinued) Specifications for 600MA models 2/18/2020 View
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions ILB3020 750MA 750MA Output, STD (2-Piece) Test Accessory 9/24/2019 View
    Material Safety Data Sheet MSDS for nickel-cadmium drivers and ballasts Safety Data Sheet for Ni-Cad emergency battery component 5/12/2021 View
    Wiring Diagram (DWG) Typical Installation - TBTS Test Kit DWG Format - Connections to an LED luminaire with a TBTS test switch 7/10/2020
    Wiring Diagram (PDF) Typical Installation - TBTS Test Kit PDF Format - Connections to an LED luminaire with a TBTS test switch 7/10/2020 View
    Installation Instructions ILB3020 600MA (Discontinued) 600MA Output, TBTS Test Accessory 9/24/2019 View
