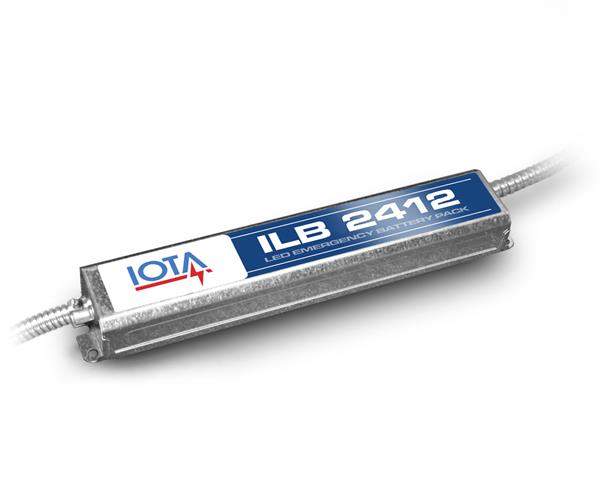

Product Image
IOTA ILB2412
Dimensions - ILB2412 - Length: 13.3in, Width: 2.4in, Height: 1.5in, Mounting Center: 12.75in

ILB2412 Emergency Driver

Constant Current LED Emergency Driver for LED loads up to 12 Watts.

By IOTA

  • Overview
  • Specifications
The ILB2412 from IOTA Engineering is a UL Recognized LED emergency battery pack that allows the same LED fixture to be used for both normal and emergency operation. In the event of a power failure, the ILB2412 switches to the emergency mode and operates the existing fixture for 90 minutes. The unit contains a battery, charger, and converter circuit in a single can for integral mounting to the fixture.
LED Operation
  • Up to 12W LED Load
  • 500mA, 17-28 VDC Output
Features
  • Long life, maintenance-free, high temperature recyclable Ni-Cad battery
  • Galvanized steel case
  • Includes test switch and charge indicator accessory kit
  • For use with switched and unswitched fixtures
  • Meets or exceeds all National Electric Code and Life Safety Code Emergency Lighting Requirements
  • Suitable for use in Damp Locations
Read More
Read Less
Product Type Emergency LED Driver
Voltage Rating 120/277
Frequency 60HZ
Load Voltage Rating 17-28 VDC
Max. Operating Temp. 50
Min. Operating Temp. 0
Battery Run Time 90 min
Battery Chemistry Type NiCd
Battery Recharge Time 24 hours
Battery Activation Unit Connector
Life Safety Testing Manual Testing
Regulatory Listing NFPA 101, UR
Environmental Listing Damp Location
Series ILB2412

Read More Read Less

  • Suggested Replacement Products

Product Information

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET ILB2412 Specifications Specification Sheet for ILB2412 Models 5/27/2022 View

  • Guideline Specifications

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions B (Integral) Mounting Style Installation Manual for the "B" (Integral) Mounting Style 9/24/2019 View
    Material Safety Data Sheet MSDS for nickel-cadmium drivers and ballasts Safety Data Sheet for Ni-Cad emergency battery component 5/12/2021 View
    Installation Instructions R (Reflector) Mounting Style (Discontinued) Installation Manual for the "R" (Reflector) Mounting Style 9/24/2019 View
