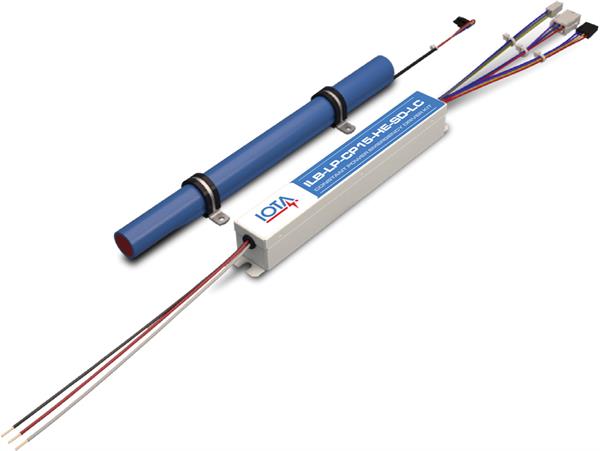

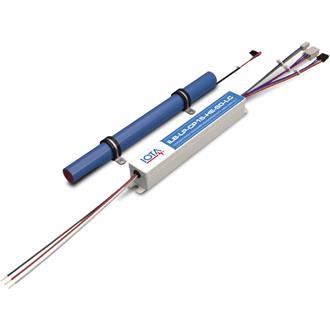

IOTA ILBLP CP15 HE SD LC Product Image
Video - IOTA ILBLP Series
ILBLP CP10 HE SD LC Dimensions, Electronics Housing - Length: 8.64 in., Width: 1.18 in., Height: 1.18 in., Mounting Center: 8.14 in.; Battery - Length: 13.13 in., Diameter: 1.04 in.

ILBLP CP15 HE SD LC Emergency LED Driver

15 Watt Modular Constant Power Emergency LED Driver with External Lithium Battery

by Iota

The ILBLP CP15 HE SD LC from IOTA is a UL Recognized LED emergency driver that allows the same LED fixture to be used for both normal and emergency operation. In the event of a power failure, the ILBLP CP15 HE SD LC switches power from the normal AC Driver and operates the fixture for 90 minutes in the emergency mode from the unit’s battery supply. The unit contains a charger and converter circuit in a narrow profile enclosure with separate battery for installation within the channel space or wireway. The ILBLP CP15 HE SD LC will operate an LED load at 15 watts with constant power at a rated output voltage of 20V-55V. Features lithium battery technology for significantly decreased form factor and includes automatic monthly and annual self-testing features as standard.
LED Operation
  • 15 watts Constant Power
  • 20-55 VDC Nominal Output
Product Advantages
  • Constant Power Performance
    Constant wattage delivery maintains illumination level for the full emergency runtime with no degradation
  • Versatile Component Design
    Minimal enclosure and separate lithium battery design provides installation flexibility within fixture compartment spaces.
  • Self-Diagnostic / Self-Testing
    Monthly and annual self-testing feature satisfies the periodic testing requirements in accordance with NFPA 101 while the on-board diagnostics provides system readiness with visual indicators.
Features
  • Auto-Sense 20-55VDC output is UL 1310 Certified, Output Class 2 Compliant
  • Circuitry enclosed in white painted steel case
  • Long life high temperature recyclable Lithium Iron-Phosphate battery
  • AC-Activate circuity simplifies wiring by eliminating the need for manual battery connection during installation
  • Includes single-piece TBTS test switch and charge indicator accessory kit
  • For use with switched or unswitched fixtures
  • 5-Year Warranty
  • Meets or exceeds all NEC, IBC, and Life Safety Code Emergency Lighting Requirements
  • Certified to CA Title 20 and registered in the Modernized Appliance Efficiency Database (MAEDBS)
  • Suitable for use in Plenum, Damp Location, and Recessed Type IC Luminaires
  • RoHS Compliant
  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & Revit (BIM)

  • Specifications

    Product Type Emergency LED Driver
    Voltage Rating 120-277
    Frequency 50/60HZ
    Load Voltage Rating 20-55 VDC
    Output Power 15 Watts
    Maximum Operating Temperature 55
    Minimum Operating Temperature 0
    Battery Run Time 90 min
    Battery Chemistry Type Lithium Iron Phosphate
    Battery Recharge Time 24 hours
    Battery Activation AC Activate
    Life Safety Testing Self Diagnostics, Self Test
    Regulatory Listing UR
    Compliance Listing CA Title 20, ROHS
    Series ILBLP
    Brand IOTA
