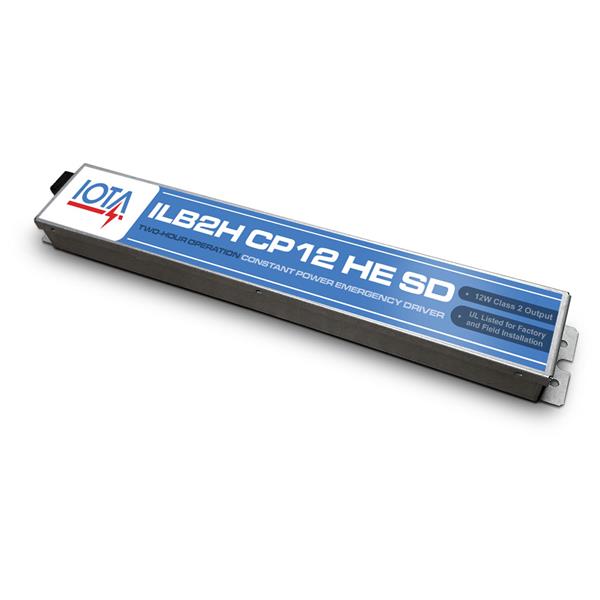

ILB2H CP12 HE SD Emergency LED Driver

12W Constant Power Emergency Driver with 2-hour runtime

By IOTA

  • Overview
  • Specifications
The ILB2H CP12 HE SD from IOTA is a UL Listed LED emergency driver that allows the same LED fixture to be used for both normal and emergency operation. In the event of a power failure, the ILB2H CP12 HE SD switches power from the normal AC Driver and operates the fixture for 120 minutes in the emergency mode from the unit’s battery supply. The unit contains a battery, charger, and converter circuit in a single enclosure and is available in flexed or non-flex mounting configurations for individual fixture requirements. Features lithium battery technology for significantly decreased form factor and includes automatic monthly and annual self-testing features as standard.
LED Operation
  • 12 Watts Constant Power
  • 20-55 VDC Nominal Output
Product Advantages
  • Two Hour Operation for FEMA and Canada requirements
  • Constant Power Performance
    Constant wattage delivery maintains illumination for the full emergency runtime with no degradation
  • Minimum Mounting Footprint
    Lithium battery and narrow enclosure design significantly decreases space requirements without sacrificing output performance
  • Self-Diagnostic / Self-Testing
    Monthly and annual self-testing feature satisfies the periodic testing requirements in accordance with NFPA 101 while the on-board diagnostics provides system readiness with visual indicators
  • Listed for Field or Factory Installation
    UL Listed for both field or factory installation in United States and Canada
Features
  • UL 924 Listed, UL Listed and Classified to FTBV
  • Auto-Sense 20-55VDC output is UL 1310 Certified, Output Class 2 Compliant
  • Galvanized steel case
  • Includes single-piece TBTS test switch and charge indicator accessory kit
  • For use with switched or unswitched fixtures
  • 5-year warranty
  • Meets or exceeds all NEC, IBC, and Life Safety Code Emergency Lighting Requirements
  • Certified for CA Title 20
  • Suitable for use in Plenum, Damp Location, Recessed Type IC, and Enclosed and Gasketed Luminaires
  • RoHS Compliant
Read More
Read Less
Product Type Emergency LED Driver
Load Voltage Rating 20-55 VDC
Output Power 12 Watts
Max. Operating Temp. 55
Min. Operating Temp. 0
Battery Chemistry Type Lithium Iron Phosphate
Battery Activation AC Activate
Life Safety Testing Self Diagnostics, Self Test
Regulatory Listing C-UL-US
Series ILB2H

  • Suggested Replacement Products

Product Information

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET IOTA--ILB2H CP12_Specification Sheet.pdf Specification Sheet for IOTA 12W Constant Power 2-hour operation emergency driver 7/13/2023 View
    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Guideline Specifications

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    3D Model ILBLP CP15 HE SD A 3D STEP file of the ILBLP CP15 HE SD A 3/15/2021
    3D Model ILBLP CP15 HE SD B 3D STEP file of the ILBLP CP15 HE SD B 3/15/2021
    Installation Instructions IOTA--ILB2H-CP-HE-SD-A_Instruction-Manual.pdf Installation and user instructions for ILB2H two-hour emergency driver with dual flex 6/28/2023 View
    Installation Instructions IOTA--ILB2H-CP-HE-SD-B_Instruction-Manual.pdf installation and user instructions for ILB2H 2-hour integral mount emergency driver 6/28/2023 View
    Material Safety Data Sheet MSDS - 16V-9.6V Lithium-ion Material Safety Data Sheet for 16V and 9.6V Lithium-ion batteries 1/7/2022 View
    Wiring Diagram (English) Typical Installation DWG Format - Typical installation of ILB2H emergency drivers 5/4/2022
    Wiring Diagram (English) Typical Installation PDF Format - Typical installation of ILB2H emergency drivers 5/4/2022 View
    Wiring Diagram (French) Installation Typique DWG Format - Installation typique pour les modèles ILB2H 5/4/2022
    Wiring Diagram (French) Installation Typique PDF Format - Installation typique pour les modèles ILB2H 5/4/2022 View
