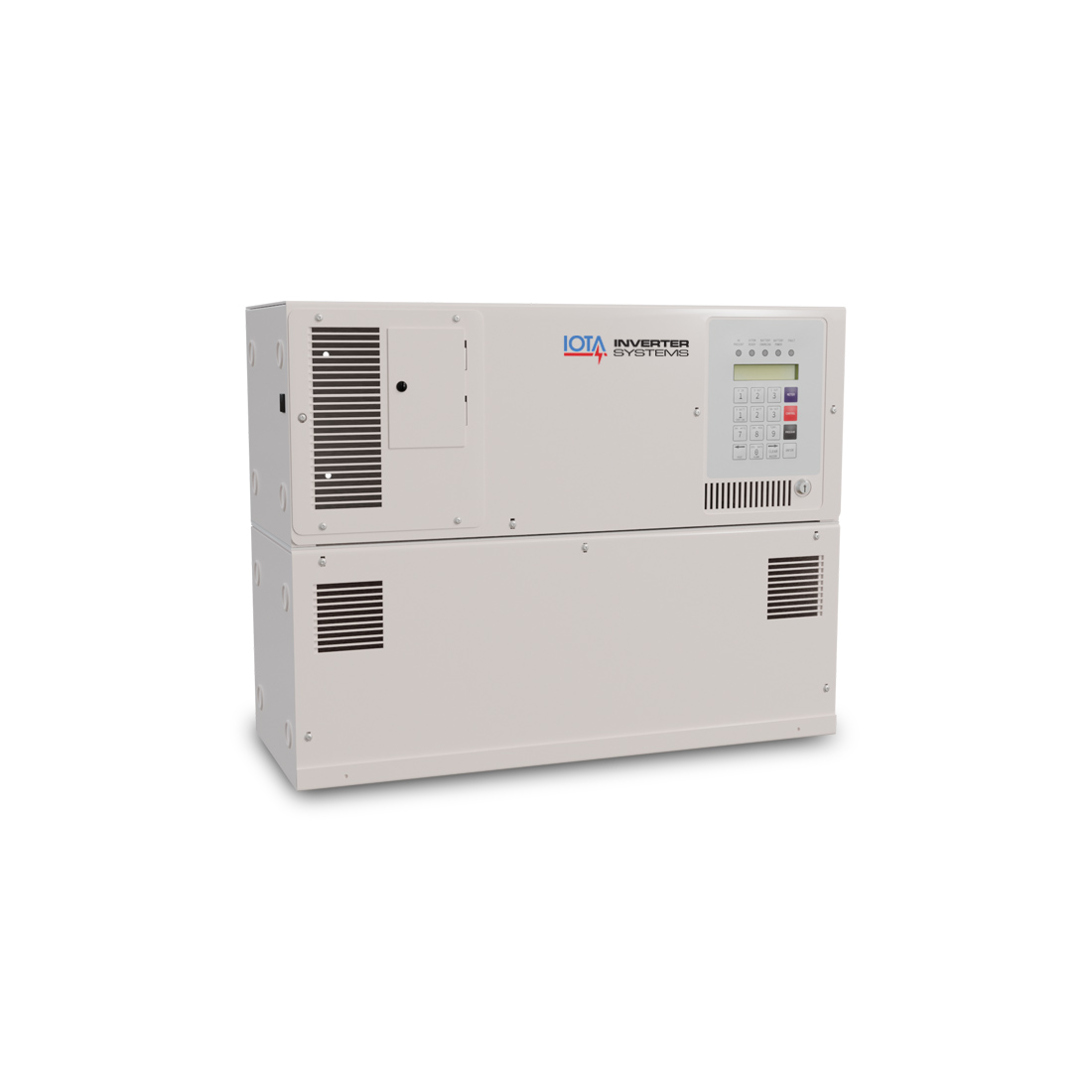

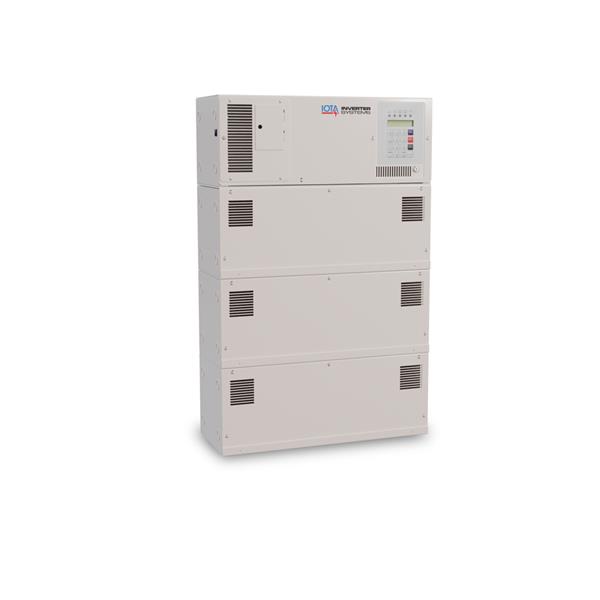

IISM Modular Inverter System
By IOTA
- Overview
- Specifications
Emergency Operation
- 1.0kVA to 2.0kVA
- Operates all lighting load types
- 120VAC to 277AC Input/Output Voltage options
Product Advantages
- Single-phase emergency system with exceptional 98% power efficiency
- Modular design allows for upgrading load size capability as needed.
- Fast Transfer (2 milliseconds) speed allows for uninterrupted operation of all lighting loads
- Provides full light output in the emergency mode
- Conducts required monthly and annual testing
Features
- UL 924 Listed
- PWM/MOSFET inverter design delivers high efficiency, low THD, amd fast transfer speed
- Micro-processor controlled, temperature-compensating charger
- Sealed long-life maintenance-free VRLA batteries
- Low Battery Voltage Disconnect protects the batteries against deep discharge
- Includes Input and Output Circuit Breaker Protection
- User Programmable / Password Protected Interface
- High-contrast VFD display screen
- Durable steel cabinet design with white finish
- Meets or exceeds all NEC and Life Safety Code Emergency Lighting requirements
- Covered by IOTA's standard 1-year warranty
- Factory Startup and Training available
| Product Type | Emergency Inverter |
| Voltage Rating | 120, 277 |
| Load Voltage Rating | 120VAC, 277VAC |
| Output Power | 1000 VA, 1500 VA |
| Battery Run Time | 90 min |
| Battery Chemistry Type | Lead Acid |
| Life Safety Testing | Self Diagnostics, Self Test |
| Series | IISM |
-
